Test or certification item 测试或认证名称: 汽车集成电路(IC)的重要应力测试标准

FAILURE MECHANISM BASED STRESS TEST QUALIFICATION FOR INTEGRATED CIRCUITS



Test or certification info 测试和认证相关内容:

(1) Preconditioning, JEDEC J-STD-020
Bake：125℃、24H
Temp/Humidty：85℃60％、168H
Reflow：260℃MAX、3times
77pcs./1Lot Total 3Lots(231pcs).

Price: xxxxx jpy yen
(a) It does not include shipping charges.
(b) It does not include the electrical characteristics measurement cost

(2) Autoclave, JESD22-A101

85C/85%/1000H
Autoclave:77pcs./1Lot Total 3Lots(231pcs).
Temperature Cycling :77pcs./1Lot Total 3Lots(231pcs).



Price:xxxxxx jpy yen
(a)It does not include shipping charges.
(b)It does not include the electrical characteristics measurement cost

(3) Temperature Cycling, JESD22-A104

105C(30min) <-> 50C(30min), 1000cys
77pcs./1Lot Total 3Lots(231pcs).



Price:xxxxxxx jpy yen
(a) It does not include shipping charges.
(b) It does not include the electrical characteristics measurement cost

(4) High Temperature Storage Life, JESD22-A103

150C/1000H
45pcs./1Lot Total 1Lots(45pcs).

Price:xxxxxxx jpy yen
(a) It does not include shipping charges.
(b) It does not include the electrical characteristics measurement cost
　

(5) Temperature-Humidity-Bias, High Temperature Operating Life, Power

Temperature Cycle
These test is a test for applying a voltage .
Burn-in board is required .
Information of the signal to be applied to the device is required .

Norm refer 涉及法规: JESD



Refer products 涉及产品:  车用产品



Lead time 周期:  常规服务 regular service 60 工作日 working days （ URGENT service, to be confirm, 加急服务待定 ）



Sample for reference 参考图片:

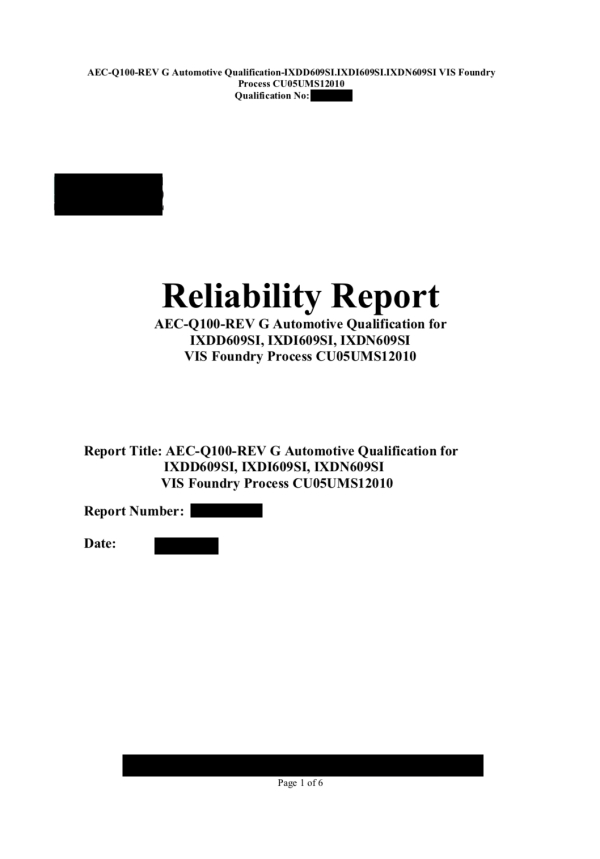

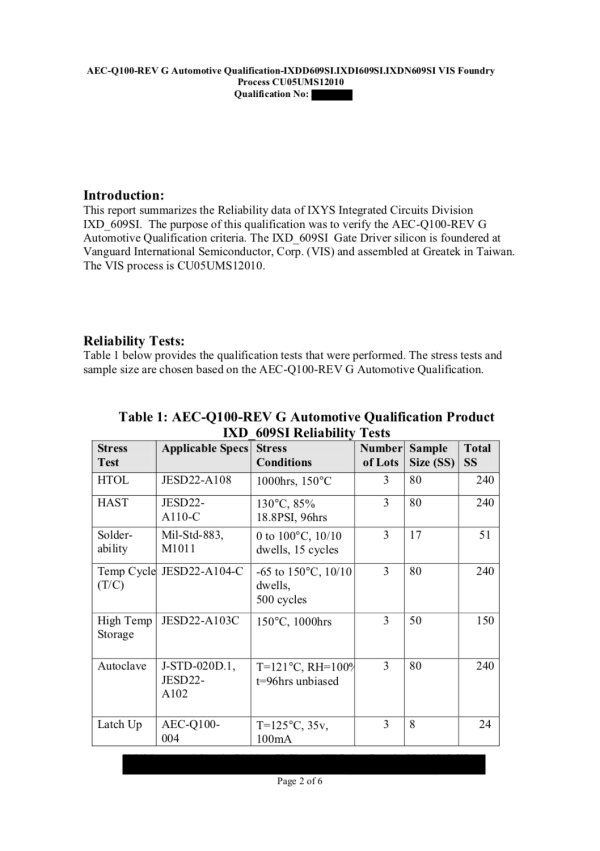

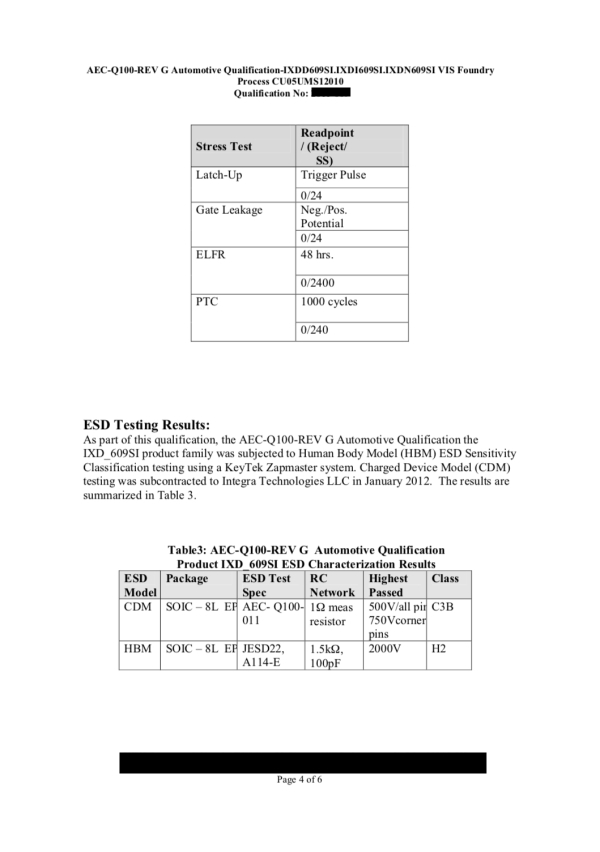

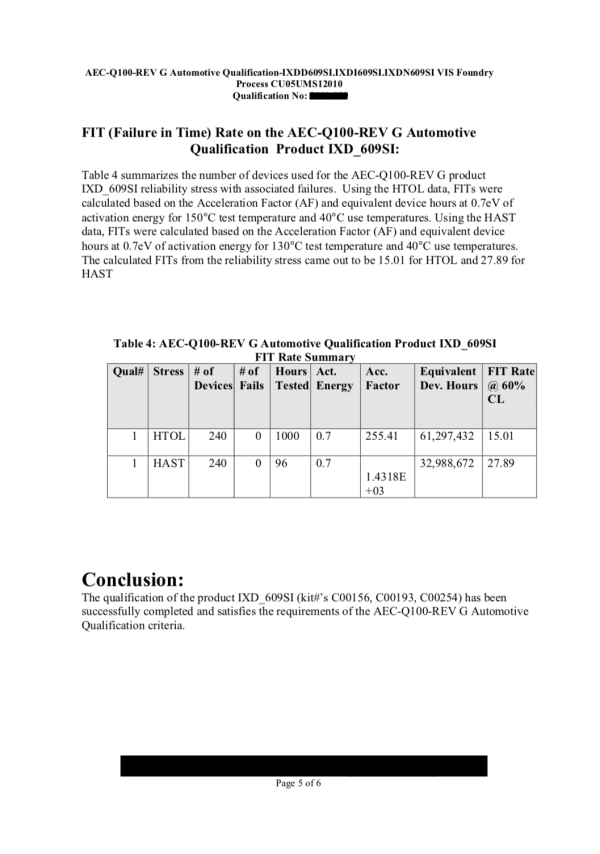

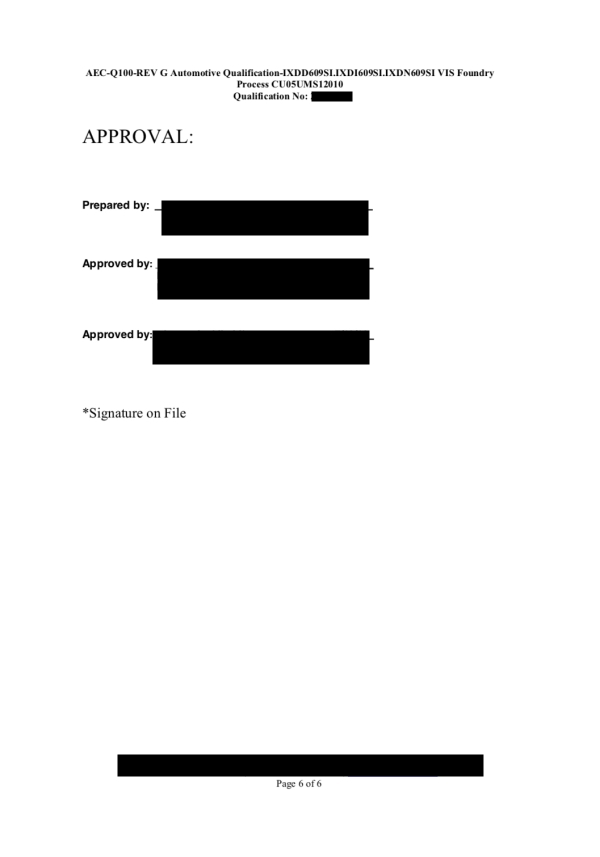

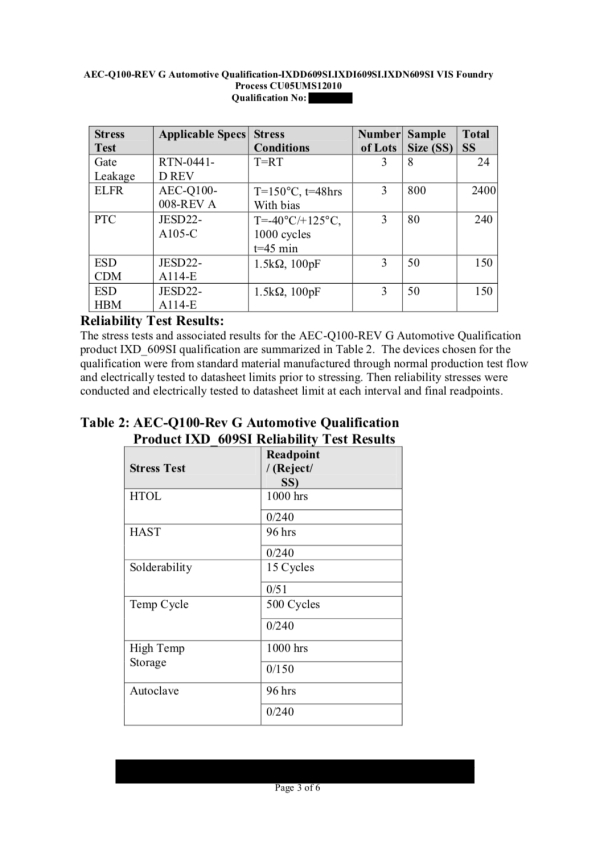

Sample Report 报告样本：
