ANSI Z 124.6返回 Back
| Test item 测试名称： | |
| American National Standard For Plastic Sinks 塑料水槽的美国国家标准 | |
| Test info 测试内容： | |
| Clause | Test Requirement |
| 2 | General requirement 普通要求 |
| 2.2 | Dimensions and tolerances 尺寸以及偏差 |
| 2.4 | Installation,care, and maintenance instructions 安装，注意以及保养说明 |
| 2.5 | Identification 鉴别 |
| 3 | Workmanship and finish 工艺以及外观检查 |
| 4 | Structural integrity of complete units 全套样品的结构完整性 |
| 4.1 | Drain fitting connection 排水连接件试验 （all sinks) |
| 4.2 | Impact tests 冲击试验 |
| 4.2.1 | Point impact 点冲击试验 （all sinks) |
| 4.2.2 | Knife drop test 小刀跌落试验 （kitchen and bar sinks only) |
| 4.2.3 | Skillet drop test 煮锅跌落试验 (kitchen sinks only) |
| 4.3 | Load test 负荷试验 |
| 4.4 | Vibration test 振动试验 (be performed only on sink compartments with an outlet of 89mm diameter or greater.) |
| 5 | Physical characteristics of material 材料的物理性状 |
| Colorfastness and aging test 不退色以及抗老化试验 (kitchen and bar sinks only) (specific condition) | |
| 5.2 | Stain resistance test 抗污染试验 (all sinks) |
| 5.3 | Wear and cleanability test 磨损及清洁能力试验 (all sinks) |
| 5.4 | Cigarette test 香烟试验 (all sinks) |
| 5.5 | Chemical resistance test 抗化学试验 (all sinks) |
| 5.6 | Heated pan test 加热平底盘试验 (kitchen sinks only） |
| 5.7 | Hot wax test 热腊试验 (kitchen sinks only) |
| 6 | Additional material tests 附加的材料检查 |
| 6.1 | Thermal shock resistance test 抗热冲击试验 (kitchen, laundry and service sinks only) |
| 6.2 | Thermal shock resistance test 抗热冲击试验 (bar sinks only) |
| Sampling requirement: 3 sets of completed samples with assembly instruction (if applicable), Another samples should be supplied. As follow: | |
| 3 pcs of approximately 95mm*95mm & 2 pcs of approximately 150mm*150mm | |
| the flat specimen material made from the same materials as the units; 3 pcs of samples with size 4” X 15” | |
| 样品要求：全套样品3套并包含安装说明书（如适用），需要另外提供下面的样品：3片尺寸约为95mm*95mm & 2片尺寸约为150mm*150mm的平面样品，样品的材料要与产品材料相同。3片4"X15"的样品 | |
| Turnaround time: normal (23 working days) | |
| 所需时间：标准（23个工作日） | |
Sample for reference 参考图片:

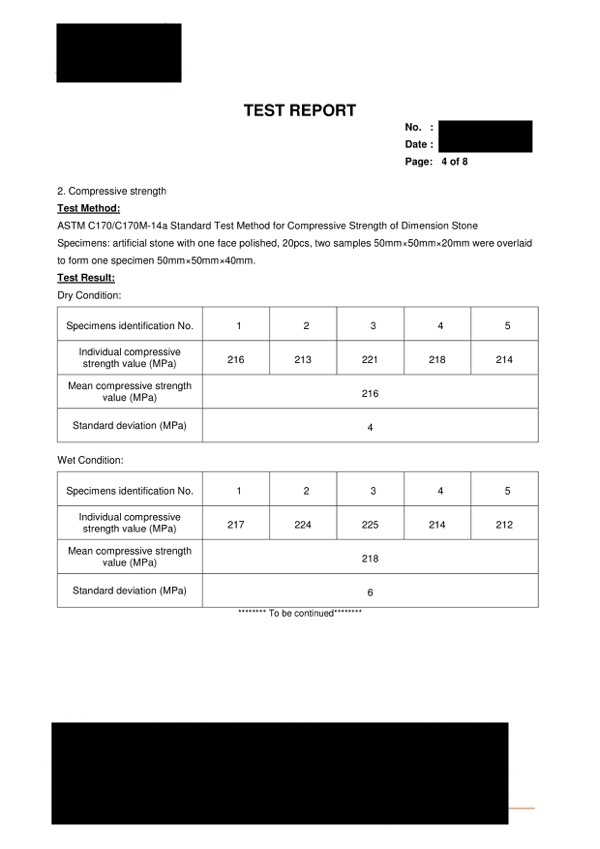

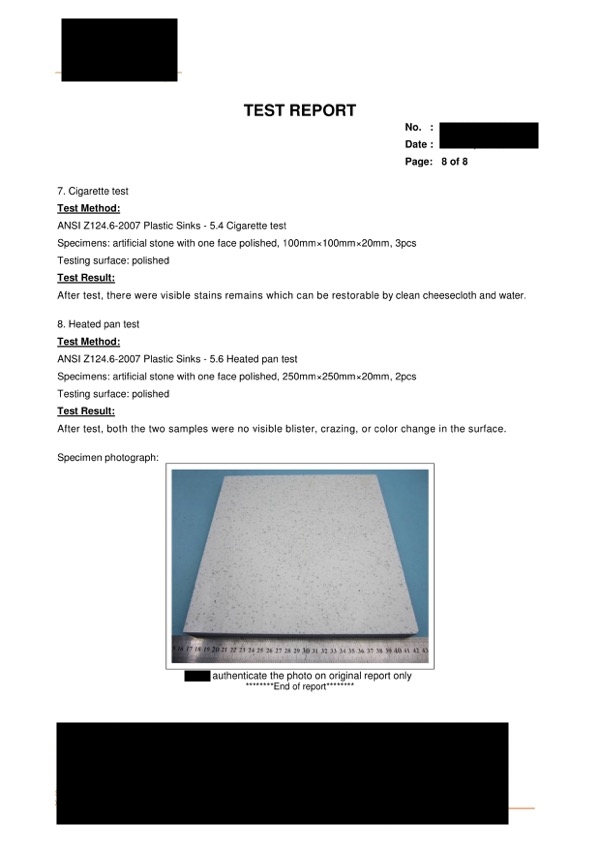

Sample Report 报告样本：
