ANSI Z 97.1 For safety glazing materilas used in buildings-safety performance specifications and methods of test ANSI Z 97.1 建筑物用安全玻璃材料的安全性能规范和测试方法 |
|||||
|
Clause 条款 |
Test Requirement 测试要求 |
Test Standard 测试标准 |
Sample requirement(mm) 样品要求（毫米） |
TAT(working days） 测试周期（工作日） |
Remark 备注 |
| For Laminated glass针对夹层玻璃 | |||||
| 5.1 |
Impact Test 冲击测试 |
ANSI Z97.1 |
1930x863mm Class B 457~470mm；4pcs Class A 1219~1232mm： 4pcs |
7 | |
| 7 | |||||
| 5.3 |
Boil Test 煮沸测试 |
ANSI Z97.1 | 305x305mm 3pcs | 7 | |
| 5.4 |
Weathering Test(Natural exposure and accelerated exposure are alternative.Indoor use are not subject to weathering test) 耐候测试(自然老化及加速老化可二选一：仅室内用的不需要做耐候测试) |
||||
| 5.4.1.1 |
Natural Exposure （One Year Outdoor Exposure in South Florida) 自然老化(1年佛罗里达自然暴晒) |
ASTM D 1435 26°North latitude，direct exposure， facing South open-backed mounting |
50x152mm 6pcs (3pcs test,3pcs control) |
1 year | |
| 5.4.1.2 |
Accelerated Exposure (Xenon-Arc type operating light exposure) 加速老化(氙灯老化) |
ASTM D2565 Cycle 1 or ISO 4892-2(3000h) |
50x152mm 6pcs (3pcs test， 3pcs control) |
100 | |
| 5.4.2.1 |
Visible Light Transmitance 可见光透光率 |
ASTMD 1003 |
50x152mm 6pcs (3pcs after weathering test， 3pcs control) |
7 | |
|
Yellowness Index(for clear products only) 黄变指数 |
ASTME 313 |
50x152mm 6pcs (3pcs after weathering test， 3pcs control) |
7 |
实验室用D65 光源：10° |
|
|
Haze 雾度 |
ASTM D1003 |
50x152mm 6pcs (3pcs after weathering test， 3pcs control) |
7 | ||
|
Delta E 色差 |
ASTM E308 |
50x152mm 6pcs (3pcs after weathering test, 3pcs control) |
7 |
实验室用D65 光源：10° |
|
| 5.4.2.3.3 |
Viewing 外观检查 |
ANSI Z97.1 |
50x152mm 6pcs (3pcs after weathering test， 3pcs control) |
7 | |
| For Tempered Glass 针对钢化玻璃 | |||||
| 5.1 |
Impact Test 冲击测试 |
ANSI Z97.1 |
1930x863mm Class B 457~470mm； 4pcs Class A 1219~1232mm： 4pcs |
7 | |
| 7 | |||||
| 5.2 |
Center punch fragmentation 碎片测试 |
ANSI Z97.1 | 1930x863mm | 7 | |
| For Organic Coated Glass 针对有机涂层玻璃 | |||||
| 5.1 |
Impact Test 冲击测试 |
ANSI Z97.1 |
1930x863mm Class B 457~470mm； 4pcs Class A 1219~1232mm： 4pcs |
7 | |
| 7 | |||||
| 5.4 |
Weathering Test(Natural exposure and accelerated exposure are alternative.Indoor use are not subject to weathering test) 耐候测试(自然老化及加速老化可二选一，仅室内用的不需要做耐候测试) |
||||
| 5.4.1.1 |
Natural Exposure (One Year Outdoor Exposure in South Florida) 自然老化(1年佛罗里达自然暴晒) |
ASTM D1435 26°North latitude,direct exposure，facing South open-backed mounting |
50x152mm 6pcs (3pcs test，3pcs control) |
1 year | |
| 5.4.1.2 |
Accelerated Exposure (Xenon-Arc type operating light exposure) 加速老化(氙灯老化) |
ASTM D 2565 Cycle 1 or ISO 4892-2(3000h) |
50x152mm 6pcs (3pcs test，3pcs control) |
100 | |
| 5.4.2.1 |
Visible Light Transmitance 可见光透光率 |
ASTM D1003 |
50x152mm 6pcs (3pcs after weathering test，3pcs control) |
7 | |
|
Yellowness Index(for clear products only) 黄变指数 |
ASTM E313 |
50x152mm 6pcs (3pcs after weathering test，3pcs control) |
7 |
实验室用D65 光源：10° |
|
|
Haze 雾度 |
ASTM D1003 |
50x152mm 6pcs (3pcs after weathering test，3pcs control) |
7 | ||
|
Delta E 色差 |
ASTM E308 |
50x152mm 6pcs (3pcs after weathering test，3pcs control) |
7 |
实验室用D65 光源：10° |
|
| 5.4.2.2.1 |
Adhesion 附着力测试 |
ANSI Z97.1 |
50x152mm 6pcs (3pcs after weathering test，3pcs control) |
||
| 5.4.2.2.2 |
Tensile Strength 拉伸测试 |
ANSI Z97.1 |
50x152mm 6pcs (3pcs after weathering test，3pcs control) |
||
| 5.4.3.2 |
Aging Tests for Organic-Coated Glass used in Indoor Applications Only 老化测试(室内专用玻璃) |
ANSI Z97.1 | 1930x863mm4pcs | ||
| 5.4.4 |
Impact Test after Aging used in Indoor Applications Only 老化后冲击测试(室内专用玻璃) |
ANSI Z97.1 |
specimens after aging 1930x863mm4pcs |
||
| For Plastic Glazing 针对塑料 | |||||
| 5.1 |
Impact Test 冲击测试 |
ANSI Z97.1 |
1930×863mm Class B 457~470mm； 4pcs Class A 1219~1232mm；4pcs |
7 | |
| 7 | |||||
| 4.7.1 |
Flexural Modulus 弯曲模量 |
ASTM D790 flatwise |
12.7x127mm5pcs | 7 |
Only required if breakage occurs under impact |
| 4.7.2 |
Rockwell Hardness 洛氏硬度 |
ASTM D 785 | 25x25x6mm1pc | 7 | |
| 5.4 |
Weathering Test(Natural exposure and accelerated exposure are alternative.Indoor use are not subject to weathering test) 耐候测试(自然老化及加速老化可二选一，仅室内用的不需要做耐候测试) |
||||
| 5.4.1.1 |
Natural Exposure (One Year Outdoor Exposure in South Florida) 自然老化(1年佛罗里达自然暴晒) |
ASTM D1435 26°North latitude，direct exposure，facing South open-backed mounting |
50x152mm 6pcs (3pcs test，3pcs control) |
1 year | |
| 5.4.1.2 |
Accelerated Exposure (Xenon-Arc type operating light exposure) 加速老化(氙灯老化) |
ASTM D 2565 Cycle 1 or ISO 4892-2(3000h) |
50x152mm 6pcs (3pcs test，3pcs control) |
100 | |
| 5.4.2.4.1 |
Charpy Impact(unnotched) 冲击测试(无缺口) |
ANSI Z97.1 ASTM D6110 Method B |
specimens after weathering 12.7x127mm10pcs |
7 | |
| 5.4.3.1 |
Aging Tests for Plastics used in Indoor Applications Only 老化测试(室内专用玻璃） |
ANSI Z97.1 10 complete humid/dry test cycles(480h) |
1930x863mm4pcs | ||
| 5.4.4 |
Impact Test after Aging used in Indoor Applications Only 老化后冲击测试(室内专用玻璃) |
ANSI Z97.1 |
specimens after aging 1930x863mm 4pcs |
||
| For Fire Resistant Wired Glass 针对阻燃夹丝玻璃 | |||||
| 5.1 |
Impact Test 冲击测试 |
ANSI Z97.1 |
1930x863mm Class C 305~318mm；4pcs Class B 457~470mm；4pcs Class A 1219~1232mm； 4pcs |
7 | |
| 7 | |||||
| 7 | |||||
| Remark：If the test specimens are of an asymmetric material two shall be impacted from each side.如样品不对称：冲击测试需指定测试面：否则测试数量和费用加倍。 | |||||

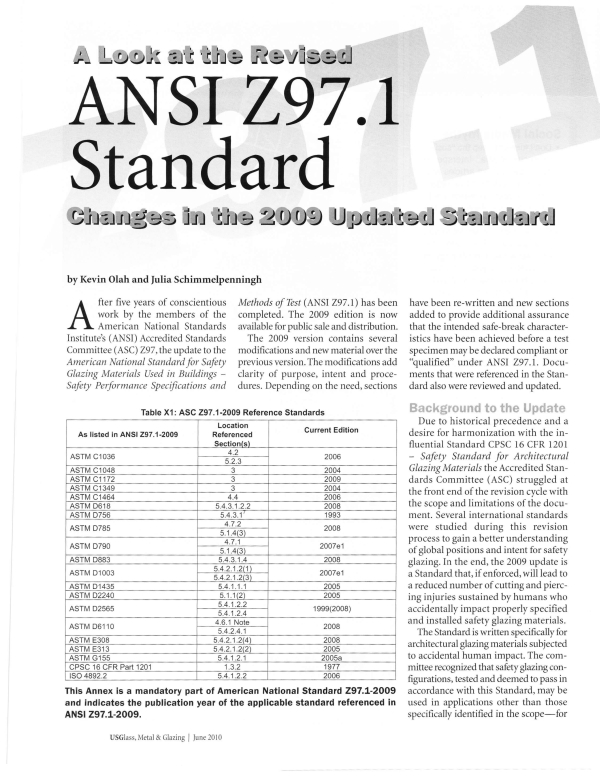

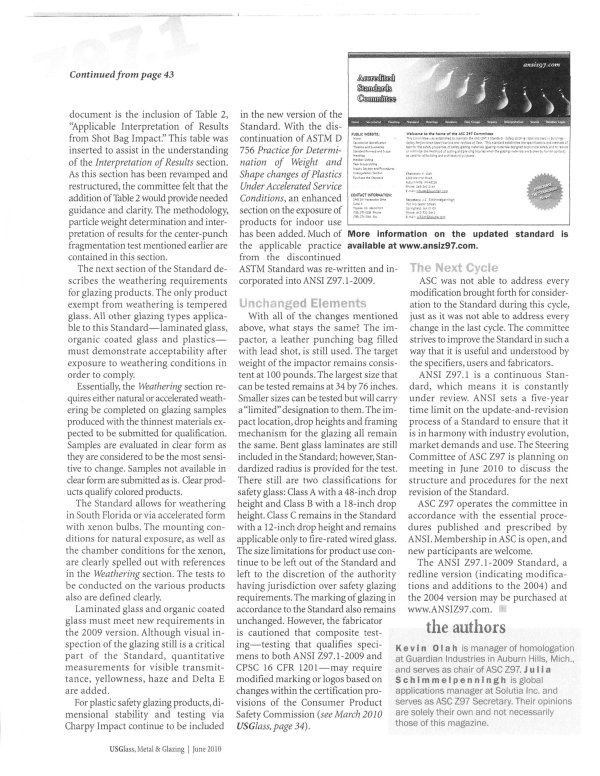

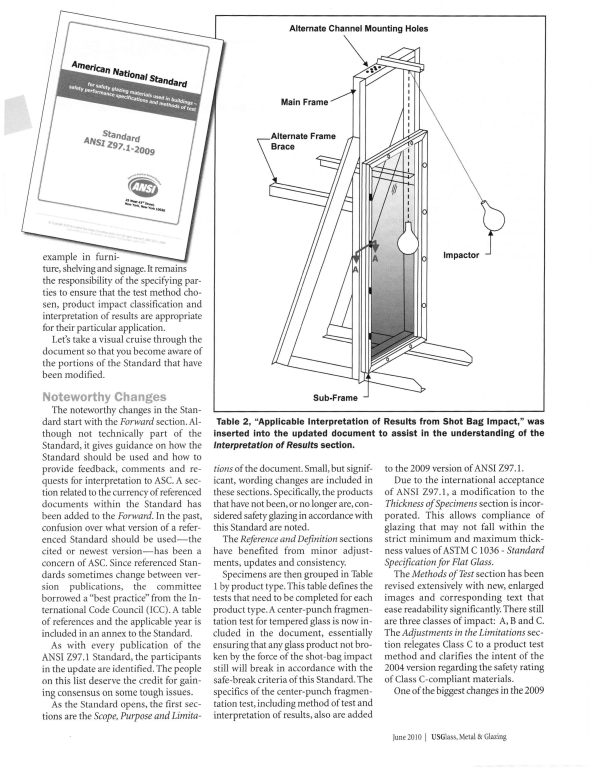

Sample for reference 参考图片:

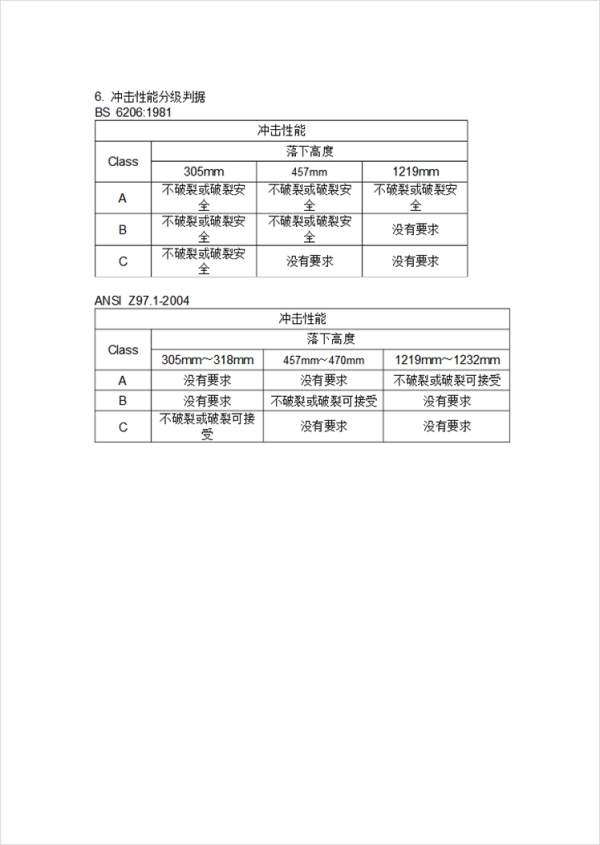

Sample Report 报告样本：
