Test item 测试名称:
Flammability for Child Restraint System for Use Motor Vehicles 儿童约束系统用车辆燃烧要求

Test info 测试内容：
Test Clause	Requirement

2.3	Flammability Test
2.3.1	Fabric, Fabric with a pile or nap, Trims, Padding Materials and composite (as per AS 2755.2 or AS 2755.3)

conditioning	1) 20 ±2°C and 50±5%, 48h
	2) twice washed according to 7B AS 2001.5.4

2.3.2	Other Chair Materials (as per SAE J369)
conditioning	conditioned 24 h at a temperature of 23 °C ± 2 °C and 50% ± 5% or as otherwise specified

Sample Required:
2.3.1: 2 meter square/ per Materials or (对于常规织物及组合，至少保证样品横向和纵向各7个试样，尺寸为560mm×170mm；对于起绒 Raised fabric，至少保证样品横向和纵向各13个试样，尺寸为150mm ×75mm；由于实际成品限制而不能保证上述尺寸另议）
and
2.3.2: 10 specimens for each direction, with the dimension 100 mm x 356 mmX thickness (up to 13mm).

Turnaround time: normal ( working days)
所需时间: 标准(9 个工作天)

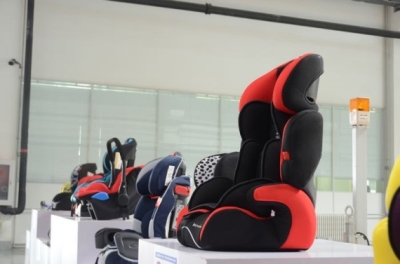

Sample for reference 参考图片:

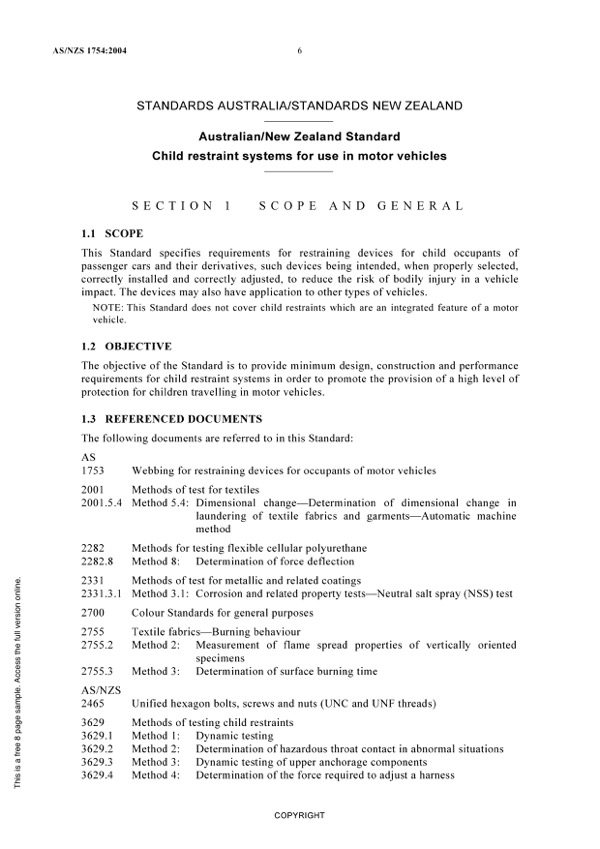

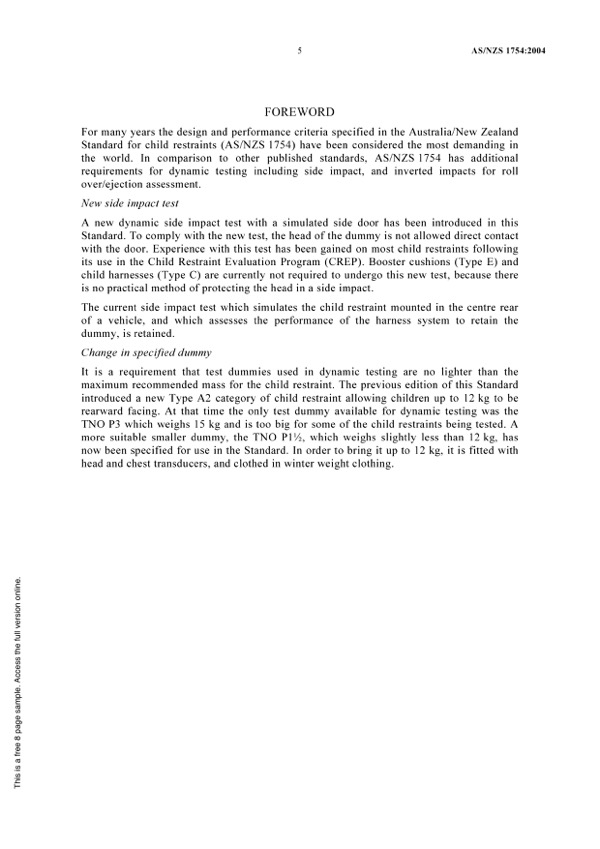

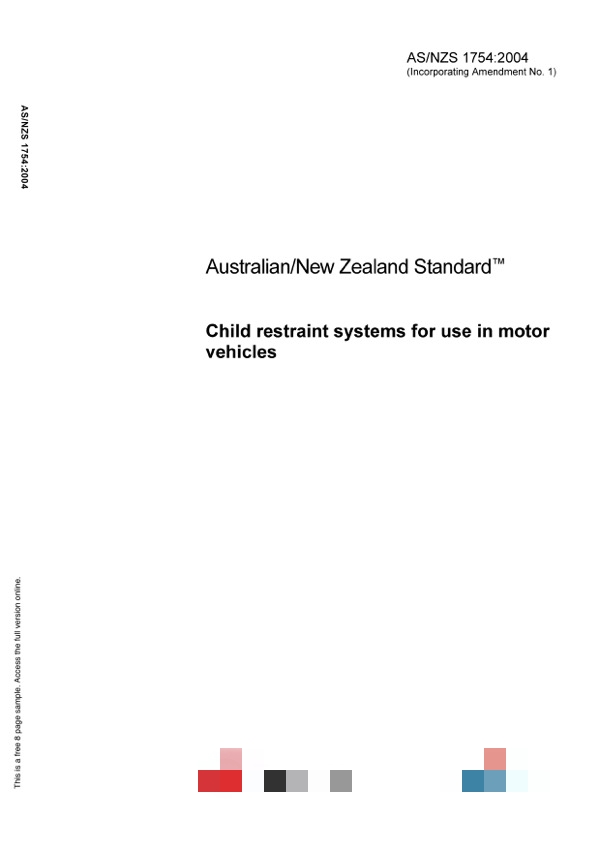

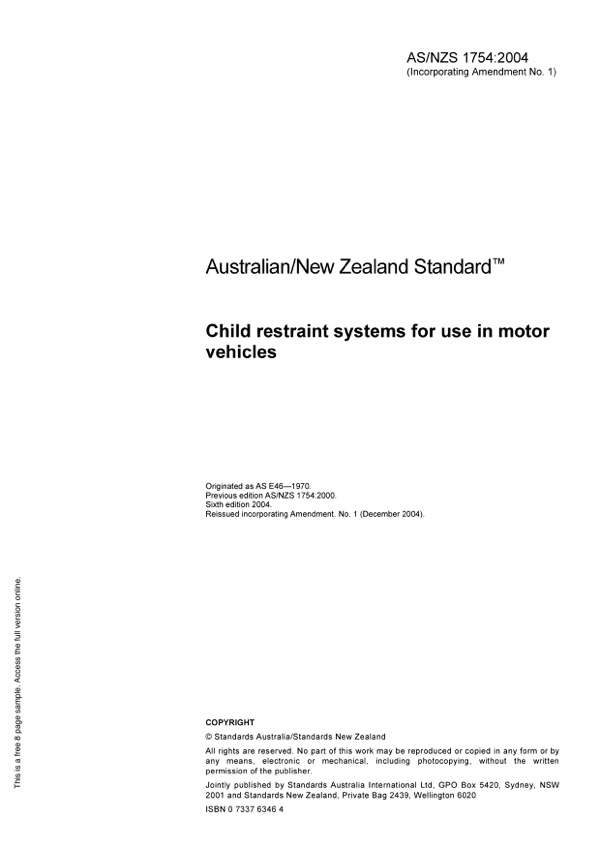

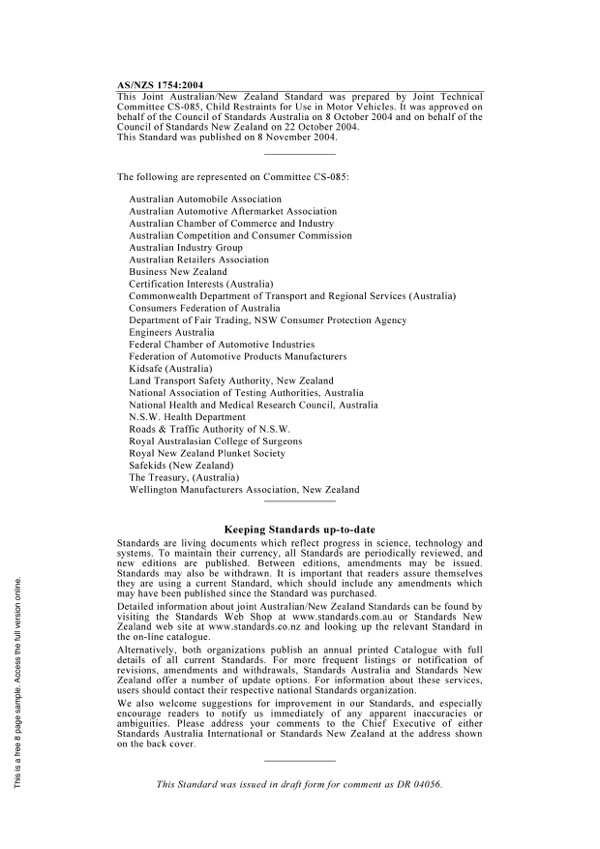

Sample Report 报告样本：
