ASTM D 3801返回 Back
| Test item 测试名称: | |
| Measuring the Comparative Burning Characteristics of Solid Plastics in a Vertical Position | |
| 测量在垂直位置固态塑料比较燃烧特性的标准 | |
| Test info 测试内容： | |
| Test Clause | Requirement |
| conditioning | 1) one set sample: conditioned at 23 ± 2°C and 50 ± 5 % relative humidity for not less than 48 h prior to test |
| 2) the other set of sample: 168 h at 70 ± 1°C, then cool for 4h | |
| Sample Required: | 22 pcs with 13.0 ± 0.5 by 125 ± 5 mm in the thickness appropriate to the objectives of the determination. Materials thicker than 13 mm shall not be tested by this test method. |
| Similar Test: UL 94 V-0/1/2 | |
| Turnaround time: normal (12 working days) | |
| 所需时间: 标准(12 个工作天) | |

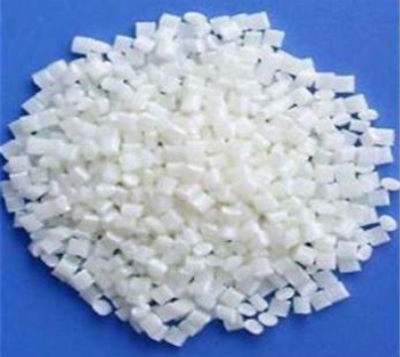

Sample for reference 参考图片:

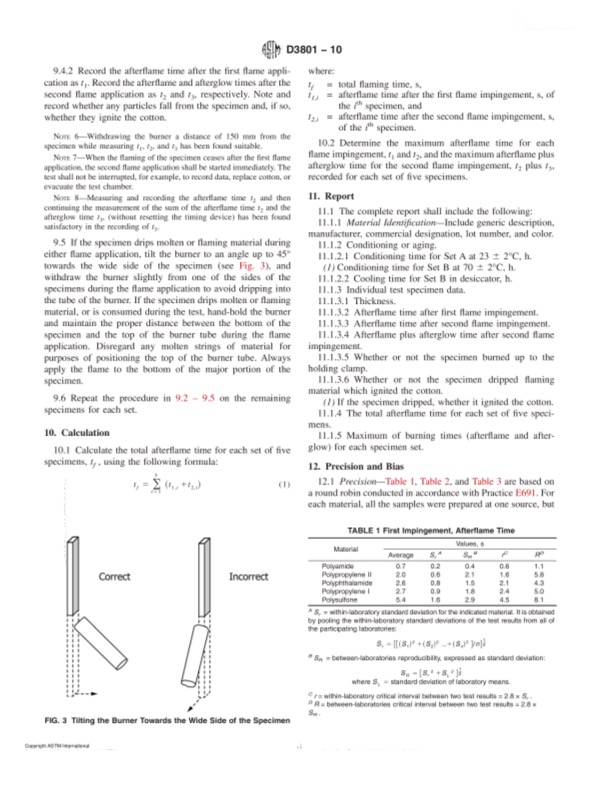

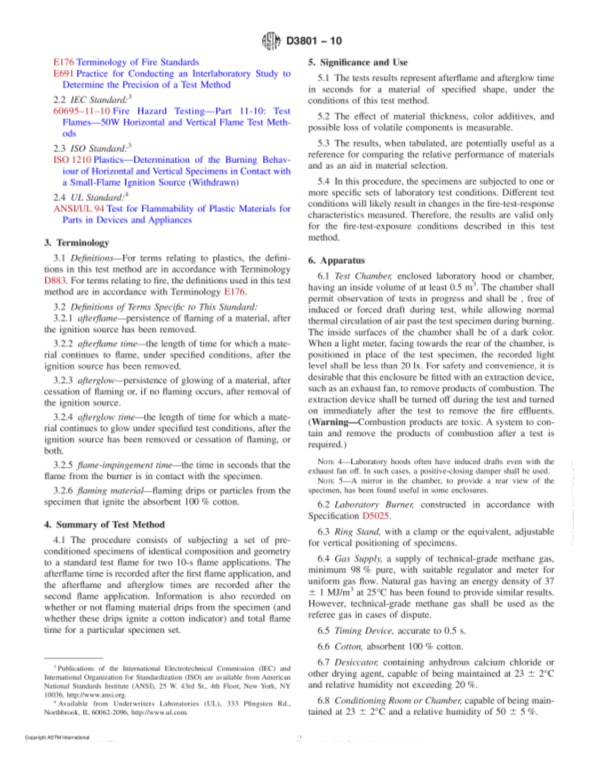

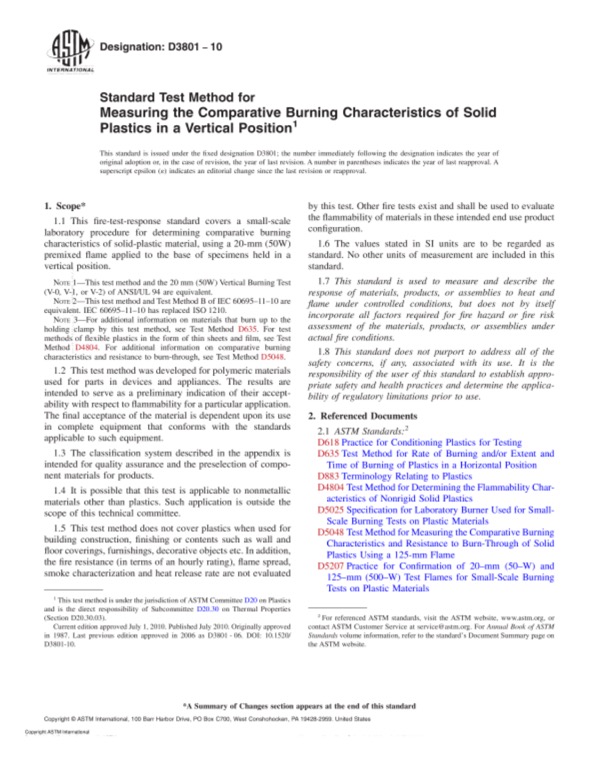

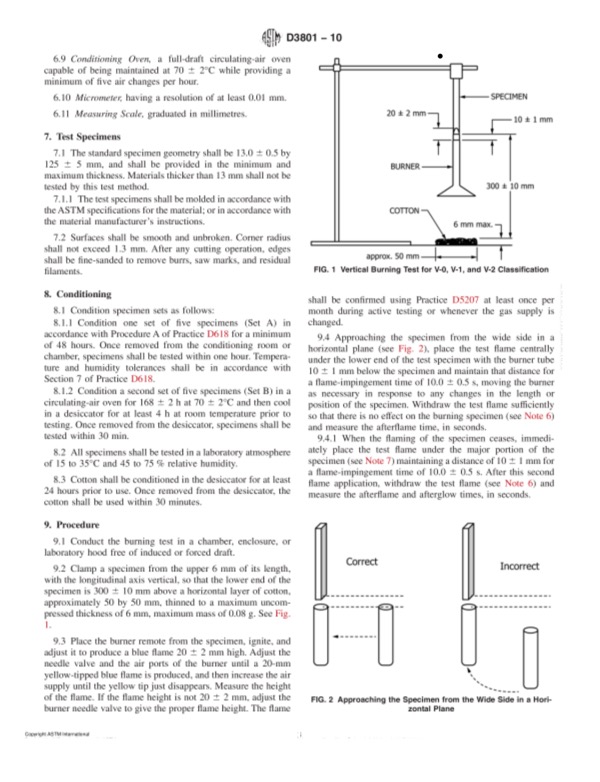

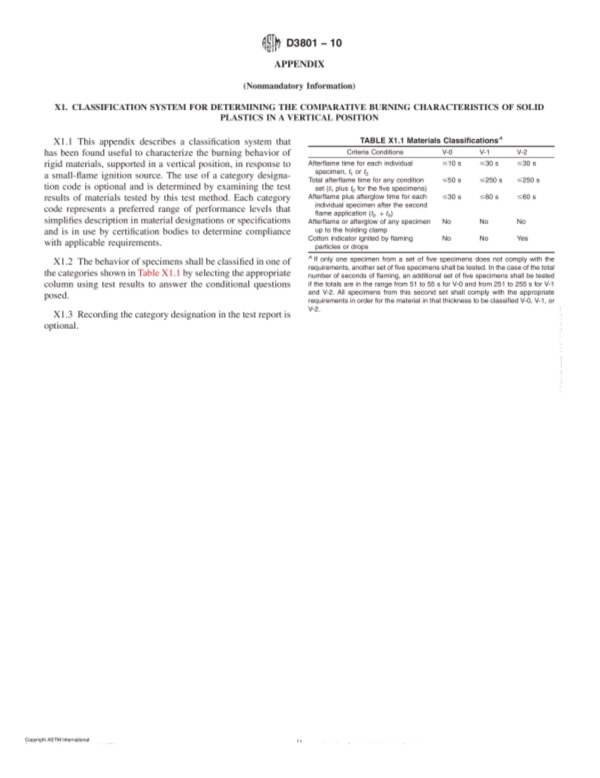

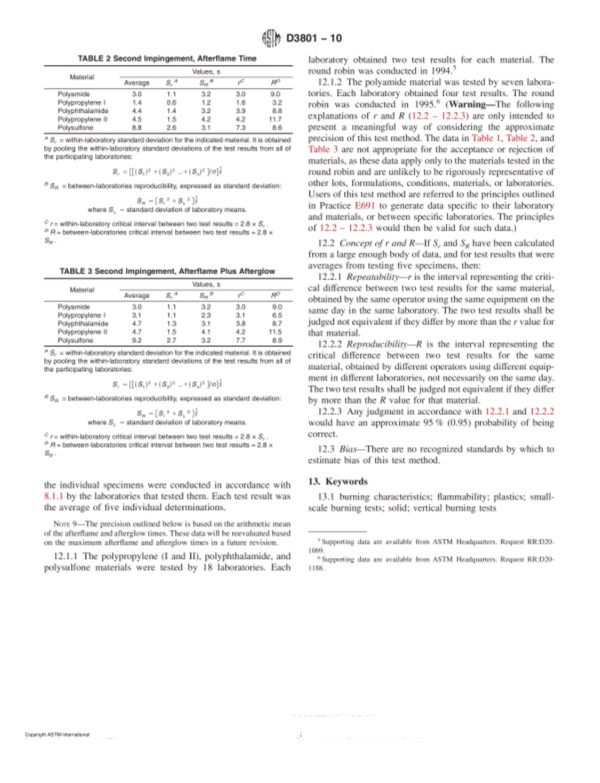

Sample Report 报告样本：
