BS EN 13561返回 Back
Test item 测试名称: External blinds-Performance requirements including safety 外遮挡系统－包括安全性的执行要求
Test info 测试内容:
| 4.2 | Wind resistance 抗风性能 |
| Folding arm and treillis arm awnings | |
| Pivot arm awning and marquisolette | |
| Awning with lateral guiderail without tension system | |
| Awning with lateral guiderail with tension system | |
| Roller shutter,wing shutter, venetian shutter, flat closing concertina shutter, concertina shutter, sliding panel shutter | |
| External venetian blind | |
| Resistance of projection systems | |
| 5 | Resistance to water pocket 抗水窝性能 |
| 6 | Resistance to snow load 抗雪载荷性能 |
| 7 | Operating effort 操作性 |
| 8 | Design of the operating mechanism―Diagrams HPV(human Pull Value) 机械装置操作设计 |
| 9 | Misuse 错误使用 |
| 10 | Mechanical endurance(repeated operation cycles) 机械的耐久力 |
| 10.3.2 | Manual operation |
| Extension/retraction 3000/7000/10000cycles | |
| Tilting 6000/14000/20000cycles | |
| 10.3.3 | Power operated operation |
| Extension/retraction 3000/7000/10000cycles | |
| Tilting 6000/14000/20000cycles | |
| 11 | Operation in frosty conditions 雾状态下的操作性 |
| 12 | Safety in use 使用的安全性 |
| 12.2 | Falling of persons 操作人的坠落 |
| 12.3 | Protection against potentially harmful components 潜在伤害人体构件的防护 |
| 12.4 |
Guided power operated awnings―Injurious contacts in operation 动力操作雨蓬的指导－操作中有害性的接触 |
| 12.5 | Electric hazards 关于电的伤害 |
| 13 | Hygiene, health and environment 卫生，健康和环保 |
| 14 | Thermal resistance 抗热电阻能力 |
| 15 | Durability 耐久力（织物，环保方面） |
| 15.2.2 | Colour fastness 色牢度 |
| 15.2.3 | Tensile resistance 抗拉力 |
| 15.2.4 | Dimensional stability 尺寸稳定性 |
| 15.2.5 | Resistance to water penetration 防水性 |
| 15.3 | Metals 金属抗腐蚀性 |
| 16 | Appearance performances 外观操作 |
| 17 | Handling and storage 处理和储存 |
| 18 | Information for use 使用信息 |
| 18.2 | Signal and warning device 警示装置 |
| 18.3 | Accompanying documents 附属文件 |
| 18.4 | Marking 标签 |
| Additional charge(Corrosion resistance) | |
| Class | Description |
| 1 | Withstand 24 hours in 5% salt spray |
| 2 | Withstand 48 hours in 5% salt spray |
| 3 | Withstand 96 hours in 5% salt spray |
| 4 | Withstand 240 hours in 5% salt spray |
Lead time 测试周期: Normal (16 working days ) For 1000h weathering shall consider weathering time
标准(16个工作天), 1000小时老化需加上老化时间.
Sample size 送样规格:
3 sets of completed products with assembly instruction (if applicable) are recommended. 全套样品3套并包括安装说明书(如适用) .
Others 其他信息:
1. Outdoor components are required to be class 4, indoor components shall be at least class 2.
| Remark: | #1---Exclude the price of Electric hazards(EN 60335-1 and EN 60335-2-97). | |
| #2---Test is estimated after 1 000 h exposure to weathering agents according to EN ISO 105-B04 | ||
| #3---Details see additional charge | ||
| N/D---not designed to withstand in this standard | ||

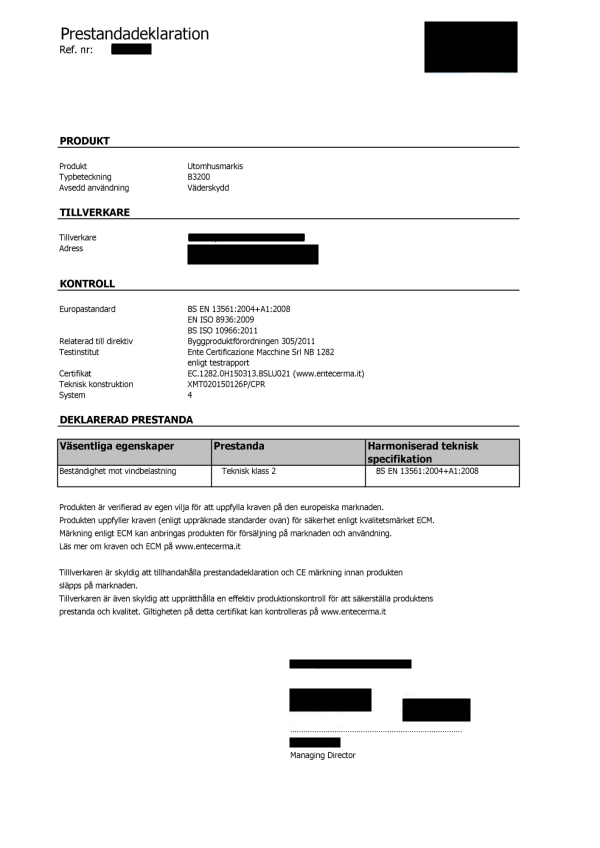

Sample Report 报告样本：

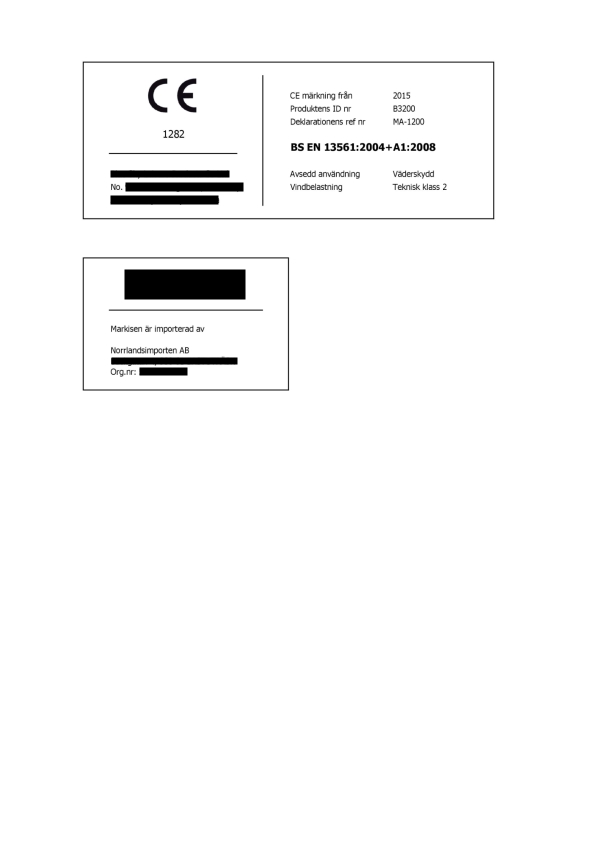

Sample for reference 参考图片:
