BS EN 15200返回 Back
| Test item 测试名称： Sanitary appliances--Multifunction shower cabinets 卫生器具 多功能淋浴间 | |||
| Test info 测试内容： | |||
| No. | Test Requirement | ||
| 1 | Basic Physical Test 基本的物理测试 | ||
| 1.1 | Base 基底 | ||
| 1.2 | Wall 墙体 | ||
| 1.3 | Mirros 镜子 | ||
| 1.4 | Mixing taps 混合龙头 | ||
| EN 200 | |||
| EN 817 | |||
| EN 1111 | |||
| 1.5 | Wast fittings/EN 274 排水装置 | ||
| Normal fitting 普通装置 | |||
| Electrodeposited NiCr Coating 电镀镍镉涂层 | |||
| 1.6 | Shower outlet 淋浴出口 | ||
| 1.7 | Shower hose 淋浴软管 | ||
| 1.8 | Water supply hose(prEN 13618) 供水软管 | ||
| 1.9 | Whirlpool (EN 12764) 漩涡池 | ||
| 1.1 | Others(doors, seats,grab handles.steam system) 其他（门，座位，把手，蒸汽系统） | ||
| 2.1 | Electrical and safety (EN 60335-2-105) 电器安全性 | ||
| 2.2 | Pump 泵 | ||
| 2.3 | Electrically operated valves(EN 60730-2-8) 电动阀 | ||
| Sample size: | |||
| qty.(pcs) | |||
| Shower cabinet | 3 | ||
| Mixer | 7 | ||
| Shower head, shower hand set and body shower | 7 | ||
| Shower hose | 5 | ||
| Additional Sample size: | |||
| 4 pieces of safety glass with an area of (1.7±0.17)m2, and with a minimum length to width ration of 2:1 without holes. | |||
| 4 pieces of safety glass with an area of (100±2)mm X(100±2)mm. The material of all specimens offered by the client shall be same to it of the sample. | |||
| Small Metal parts: 2pcs | |||
| Different parts of the unit: 6 pcs 100mm*25mm & 6pcs 100mm*100mm | |||
| TAT: 47 Working days | |||
| Remark1: | |||
| For the Chemical and hygienic requirements test, we recommend the following test items | |||
| Test items | TAT | qty.(pcs) | |
| 嗅与味 （Odour and flavour of water）BS 6920-2.2：2000 | 15 working days | 2 | |
| 水的外观 (Appearance of water) BS 6920-2.3:2000 | 15 working days | 2 | |
| 水中微生物的生长 （Growth of aquatic microorganisms test）BS 6920-2.4:2000 | 7~9 weeks | 2 | |
| 细胞毒性试验 （the extraction of substances that may be of concern to public health）BS 6920-2.5:2000 | 5~7 weeks | 2 | |
| 金属元素（the extraction of metals）BS 6920-2.6:2000 | 15 working days | 2 | |
| 高温试验 （High temperature test）BS 6920-3:2000 | 7~9 weeks | 2 | |
| Shower cabinet | 27 working days | 3 | |
| Mixer | 37 working days | 7 | |
| Shower head, shower hand set and body shower | 35 working days | 7 | |
| Shower hose | 17 working days | 5 | |
| 4 pieces of safety glass with an area of (1.7±0.17)m2, and with a minimum length to width ration of 2:1 without holes. | |||
| 4 pieces of safety glass with an area of (100±2)mm X(100±2)mm. The material of all specimens offered by the client shall be same to it of the sample. | |||

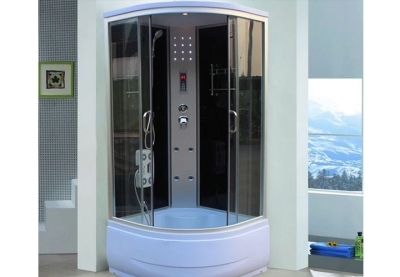

Sample for reference 参考图片:

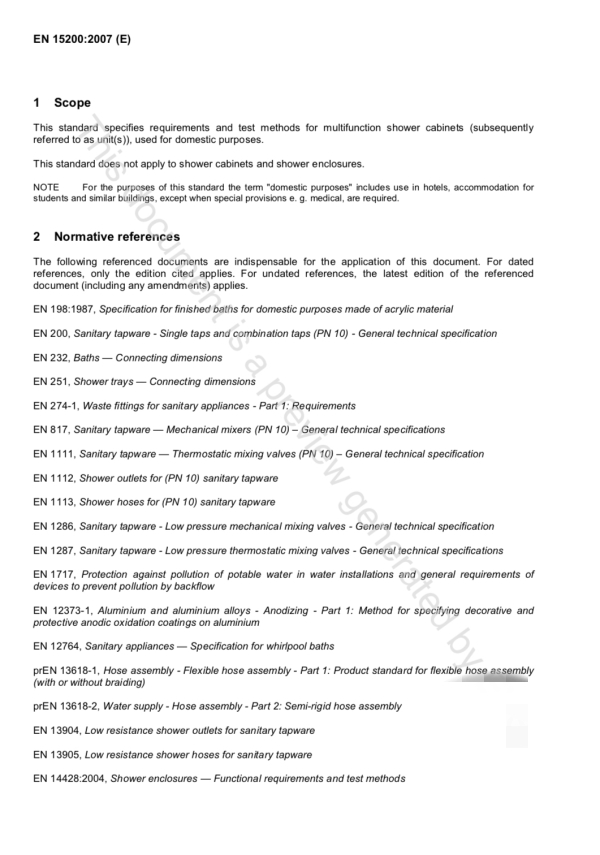

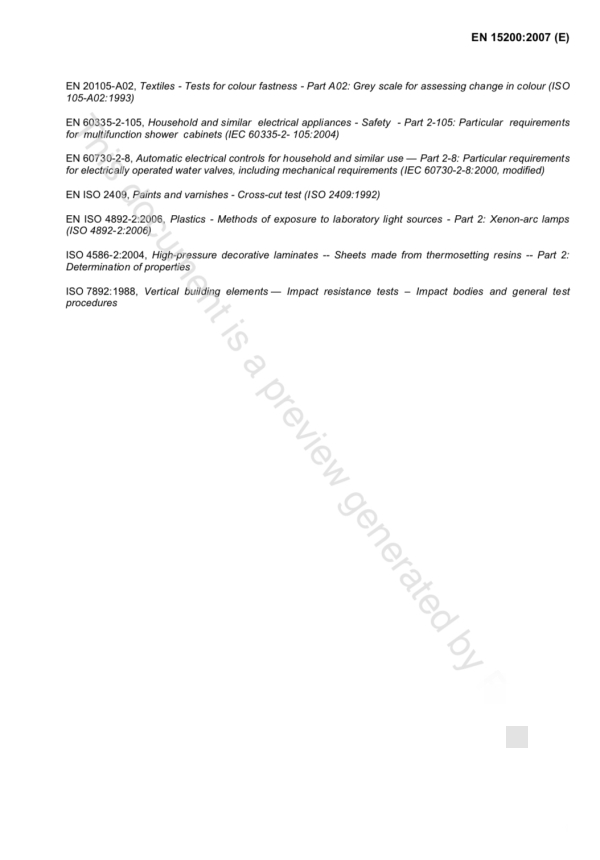

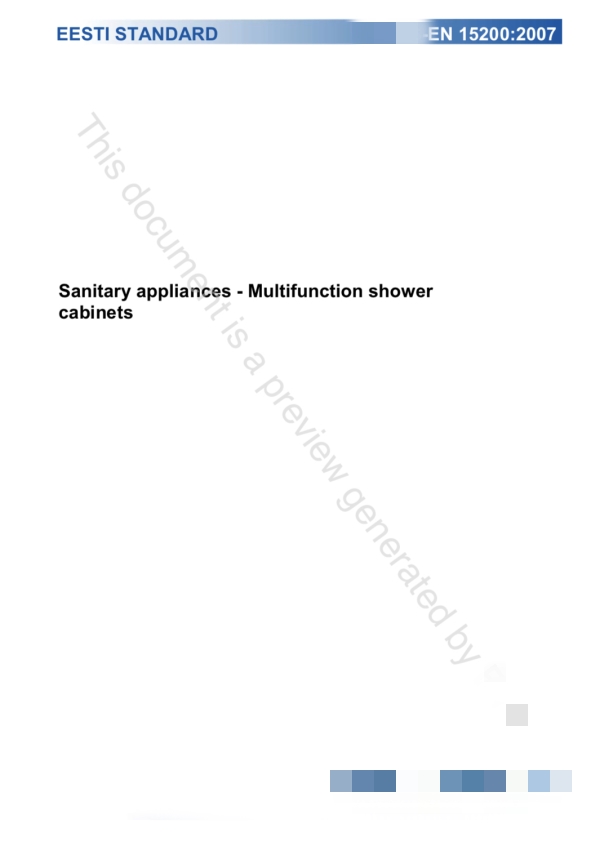

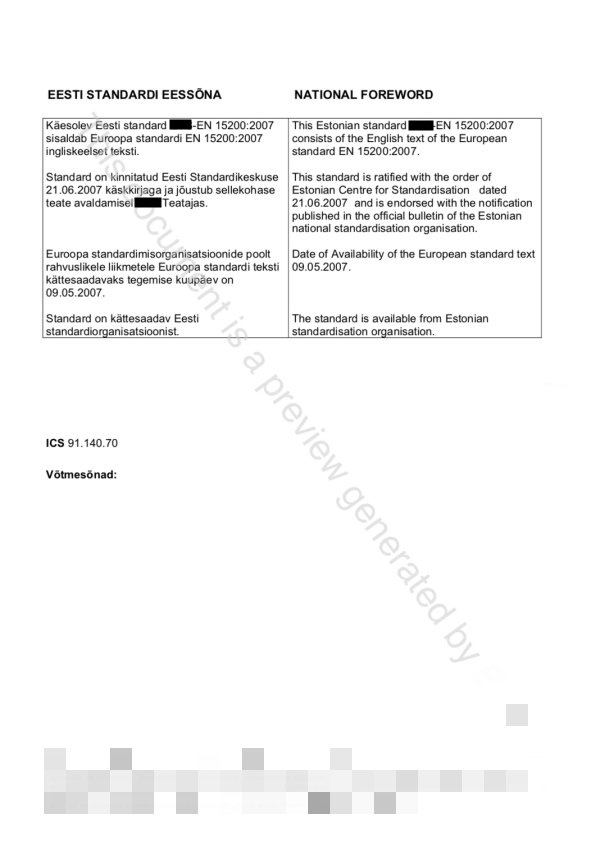

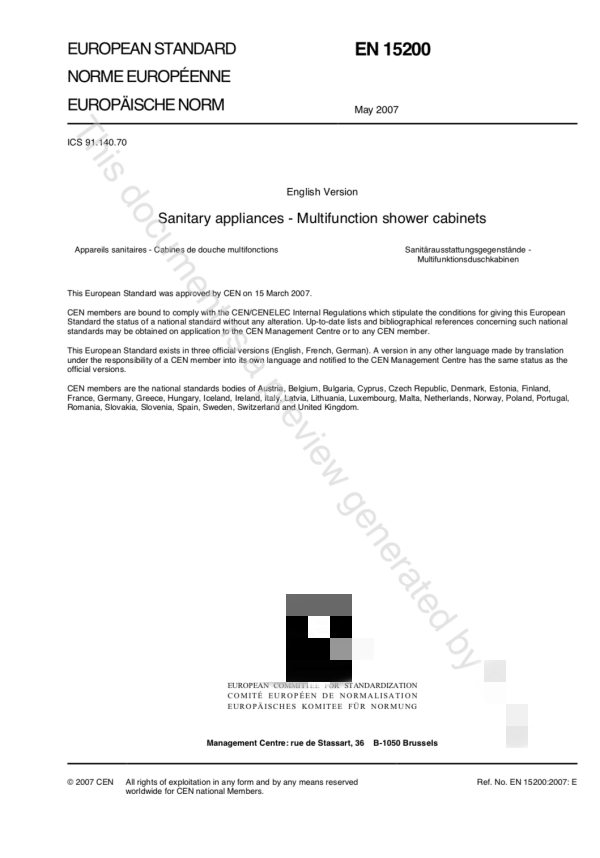

Sample Report 报告样本：
