BS EN 15373返回 Back
| Test item 测试名称： | |
| Furniture - Strength, durability and safety - Requirements for non-domestic seating | |
| 非家用椅子安全要求及强度和疲劳测试 | |
| Test info 测试内容： | |
| No. | Test Requirement |
| Safety requirements 安全要求 | |
| 1 | General design requirements一般的设计要求 |
| 2 | Shear and squeeze points 剪切点和挤压点 |
| 3 | Stability 稳定性 |
| 4 | *Rolling resistance of the unloaded chair 无负载下椅子(脚轮)的抗滚动性 |
| Strength and durability 强度和疲劳 | |
| 1 | Seat and back static load test 座位和靠背静态载荷测试 |
| 2 | Seat front edge static load test 座位前端静载测试 |
| 3 | Additional seat and back static load for tilting chairs, reclining chairs and loungers 附加座位和靠背静态载荷测试(躺椅, 可倾斜椅和沙发) |
| 4 | Vertical static load on back 靠背垂直静载测试(向下) |
| 5 | Foot rail/foot rest and leg rest static load test 脚踏静态载荷测试 |
| 6 | Arm sideways static load test 扶手侧向静态载荷测试 |
| 7 | Wing sideways static load test 护翼侧向静载测试 |
| 8 | Arm downwards static load test 扶手垂直静态载荷测试(向下) |
| 9 | Vertical upwards static load on arm rests 扶手垂直静载测试(向上) |
| 10 | Seat & back fatigue test 靠背和座位疲劳测试 |
| 11 | (Additional Seat & back fatigue test 附加靠背和座位疲劳测试) |
| 12 | Seat front edge fatigue 座位前部疲劳测试 |
| 13 | Arm fatigue test 扶手疲劳测试 |
| 14 | Leg rest fatigue test 搁腿板疲劳测试 |
| 15 | Foot rail fatigue test 搁脚圈疲劳测试 |
| 16 | Leg forwards static load test 椅腿前向静态载荷测试 |
| 17 | Leg sideways static load test 椅腿侧向静态载荷测试 |
| 18 | Diagonal base force test 椅座对角加力测试 |
| 19 | Seat impact test 座位冲击测试 |
| 20 | Back impact test 靠背冲击测试 |
| 21 | Arm impact test 扶手冲击测试 |
| 22 | Drop test 跌落测试 |
| 23 | Auxiliary writing surface static load test 辅助写字板静载测试 |
| 24 | Auxiliary writing surface fatigue test 辅助写字板疲劳测试 |
| Sample required: 4 sets of completed products with assembly instruction (if applicable) is recommended. | |
| 样品要求 :全套样品4 套并包括安装说明书(如适用). | |
| Turnaround time: 11 working days for level 1;17 working days for Level 2; 22 working days for Level 3 | |
| 所需时间: 针对等级1， 11个工作天；针对等级2，17个工作天；等级3，22个工作天 | |
| Note: *need to be subcontracted to Guangzhou or Anji laboratory. | |
| 需分包至广州或安吉实验室 | |

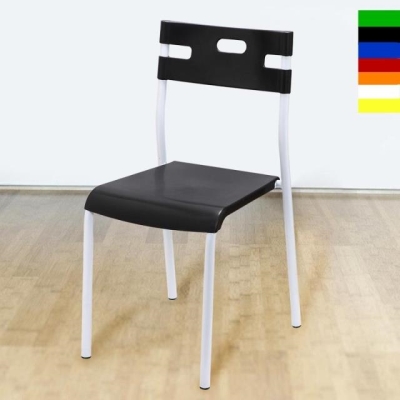

Sample for reference 参考图片:

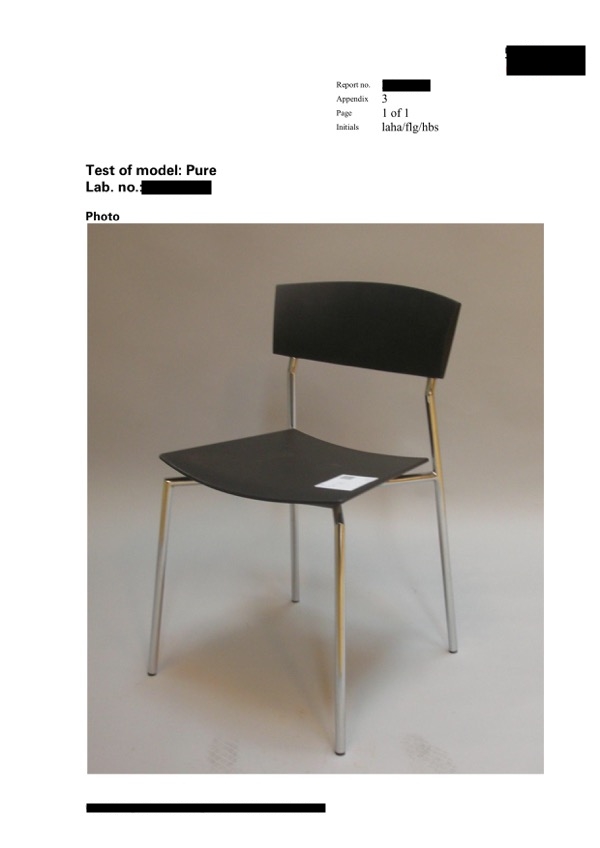

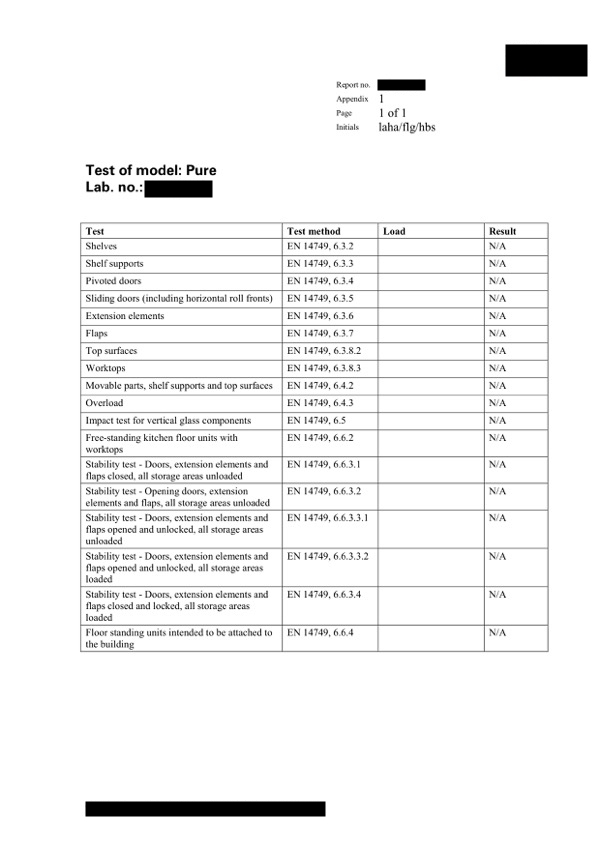

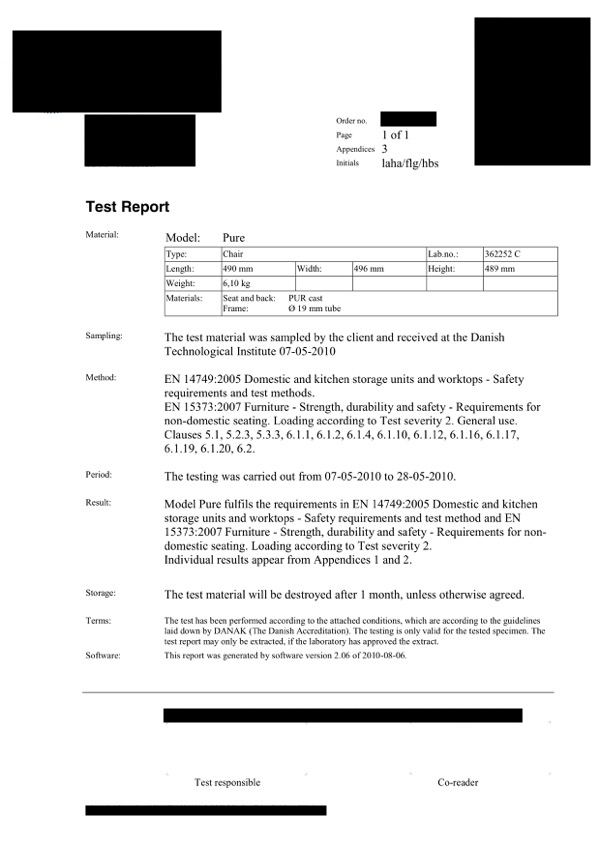

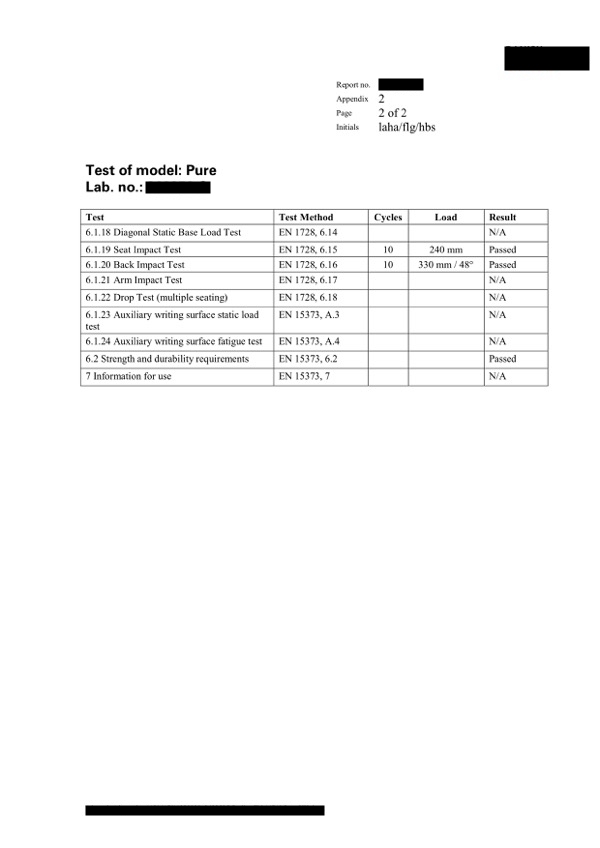

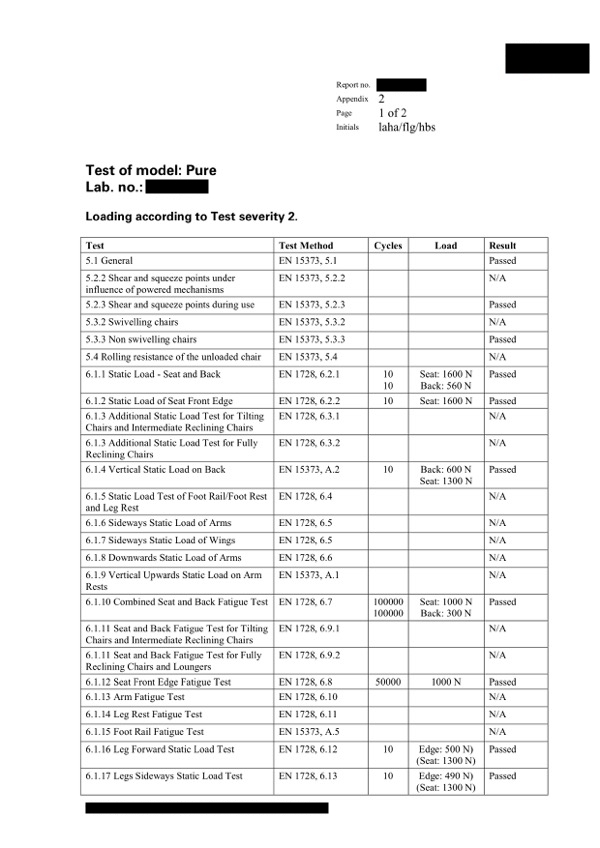

Sample Report 报告样本：
