BS EN15534-1返回 Back
Test or certification item 测试或认证名称: 从纤维素基材料和热塑性塑料制成的复合材料
Composites made from cellulose-based materials and thermoplast
Composites made from cellulose-based materials and thermoplast
|
Test Requirement 测试要求 |
Test Standard 测试标准 |
Sample requirement（mm） 样品要求（毫米） |
TAT 周期 |
|
|
size 尺寸 |
NO. 数量 |
|||
|
Moisture resistance (boiling test) 耐水性(沸水试验) |
EN 15534-1 Clause 8.3.3 | 长度：100mm, 原宽度和厚度 | 5 | 7 |
|
Swelling and water absorption 吸水率和吸水膨胀率 |
EN 15534-1 Clause 8.3.1 and EN 317 |
原材料：80*10*4mm 产品：100mm*原宽*原厚 |
8 | 23 |
|
Flexural properties (applicable to non-load bearing products) 弯曲性能 |
EN 15534-1 Annex A |
length: 20 times thickness plus 100 full cross section of profile |
10 | 7 |
|
Moisture resistance (cycle conditions) 耐水性(循环条件) |
EN 15534-1 Clause 8.3.2 and EN 321 |
length: 20 times thickness plus 100 full cross section of profile |
60天 | 40 |
|
Linear thermal expansion coefficient 线性热膨胀系数 |
EN 15534-1 Clause 9.2 | 50×50mm, 厚度小于4mm | 3 | 9 |
|
Resistance to indentation 耐压痕性 |
EN 15534-1 Clause 7.5 | 50x50x厚度 | 5 | 7 |
|
Falling mass impact resistance 落锤冲击 |
EN 15534-1 Clause 7.1.2.1 EN 477 | (300 ± 1) mm long the actual width and thickness | 26 | 7 |
|
Heat build-up 生热测试 |
EN 15534-1 Clause 9.4 | length: 100mm | 3 | 7 |
|
Resistance to artificial weathering (products for external use) 耐人工老化（外部使用产品） |
EN 15534-1 Clause 8.1.1 | 150×70mm | 3 | 视客户测试时间而定 |
Others 其他信息:
Photo for reference 涉及图片:

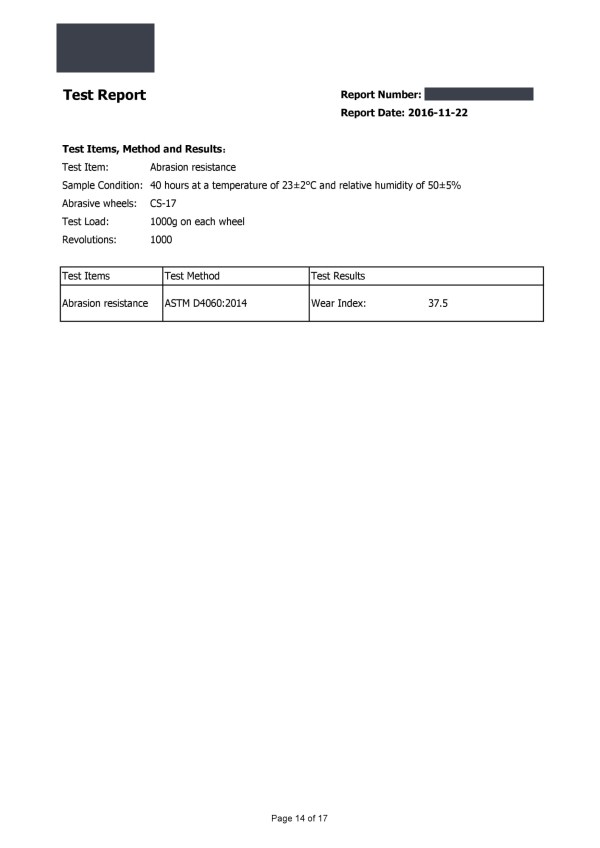

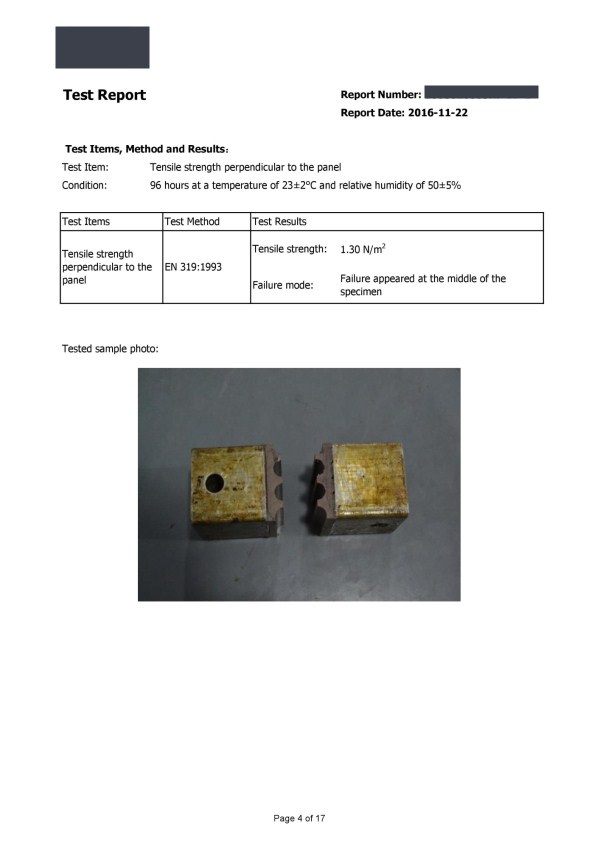

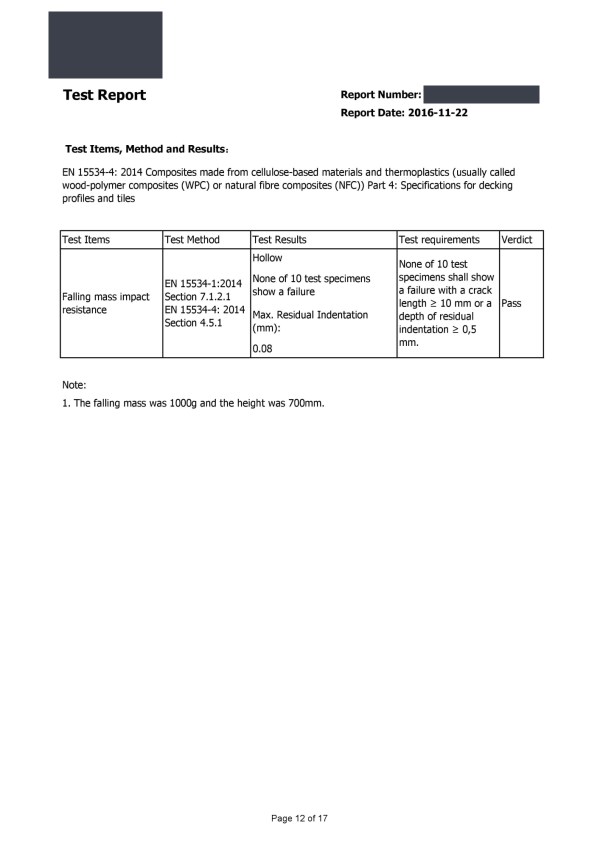

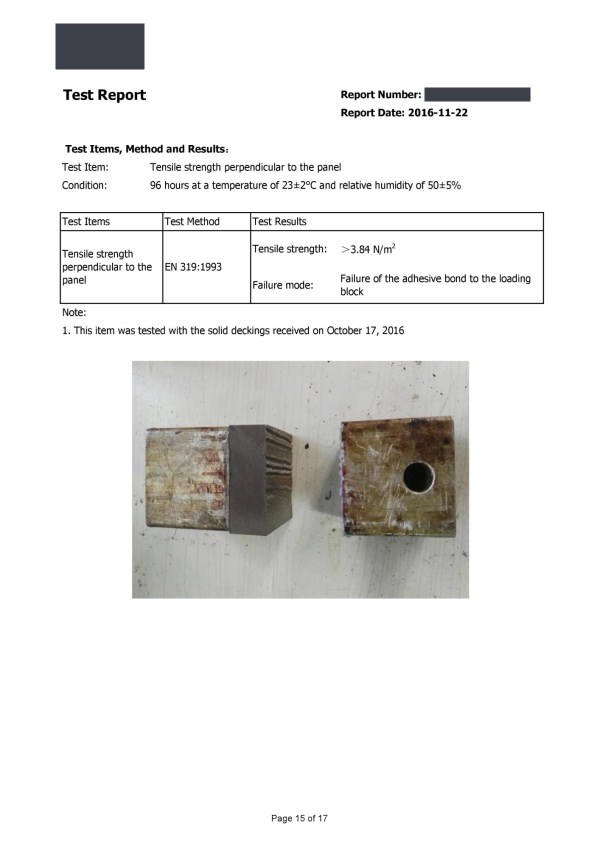

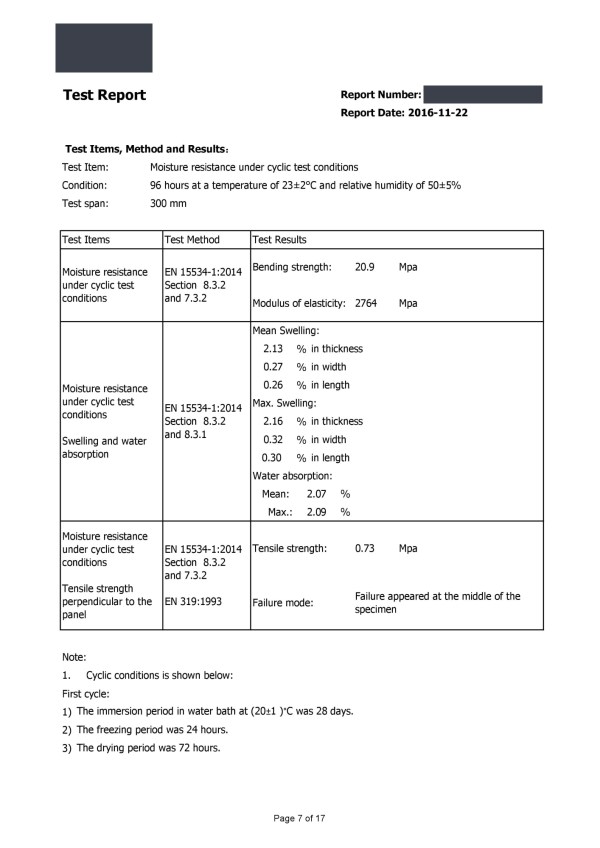

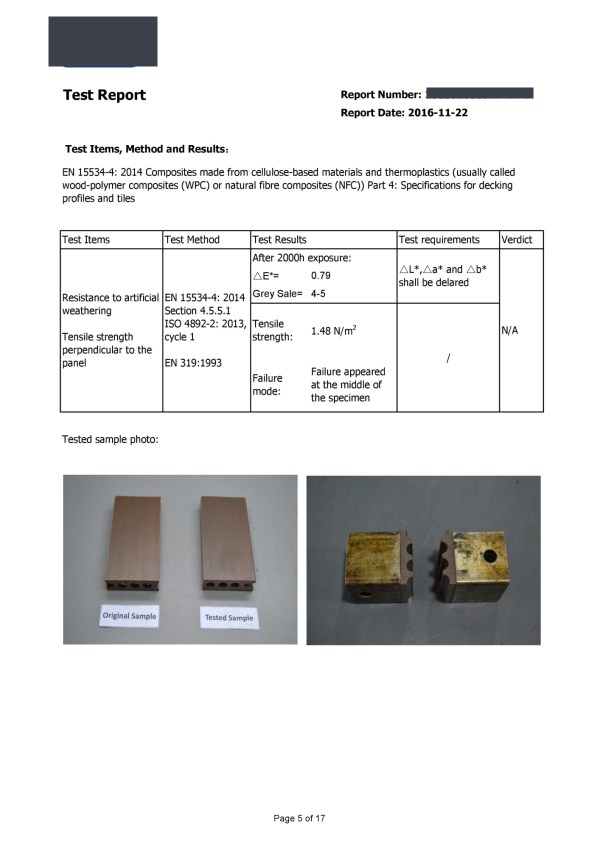

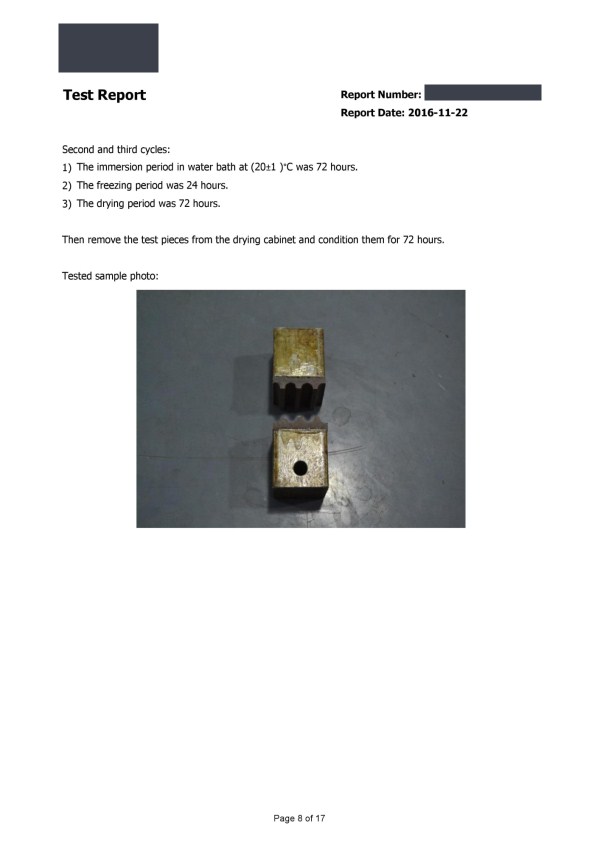

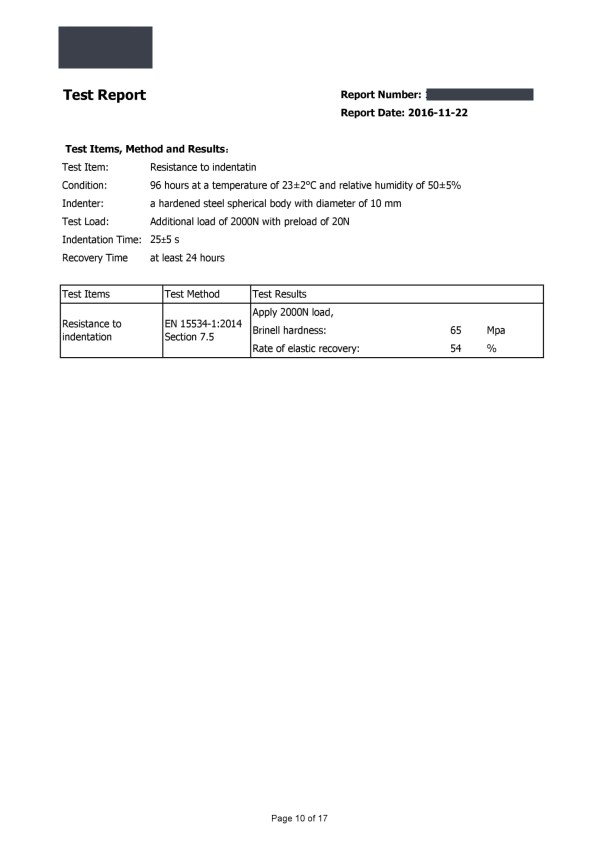

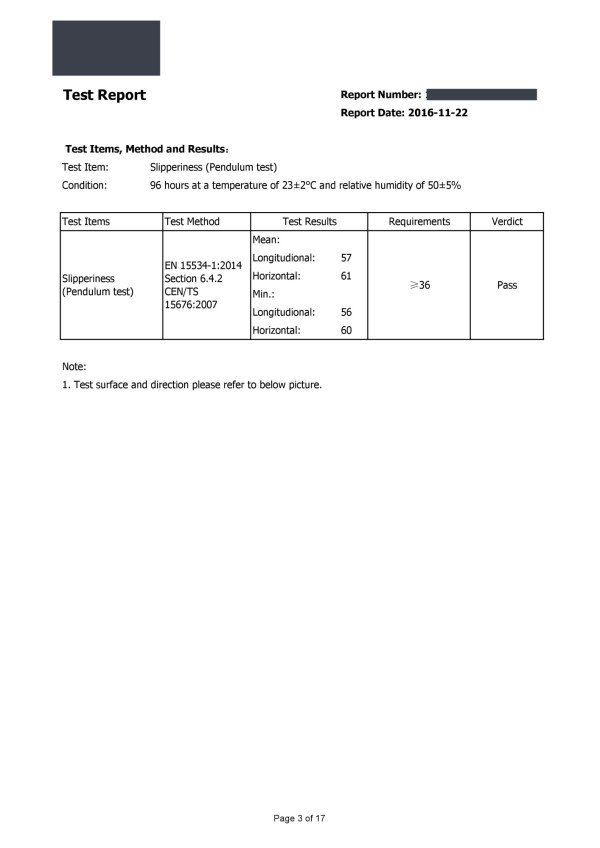

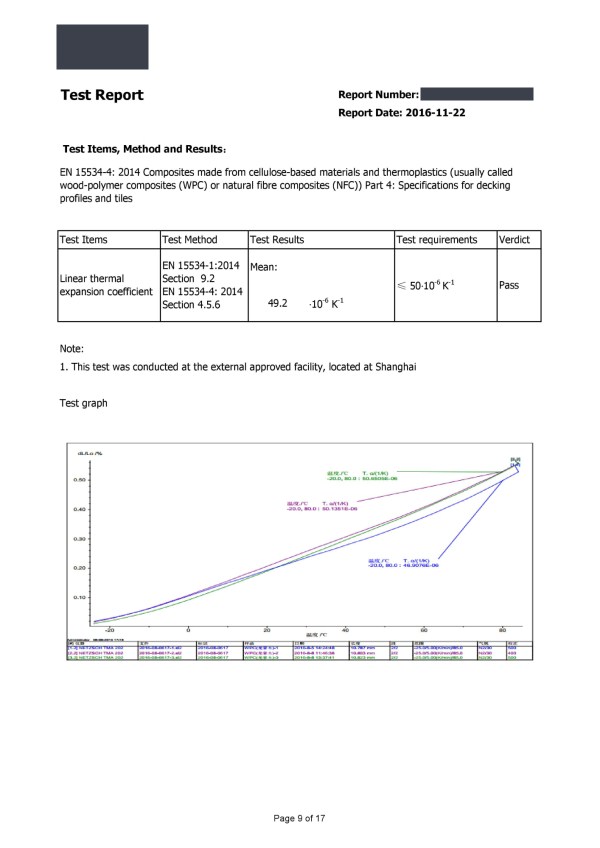

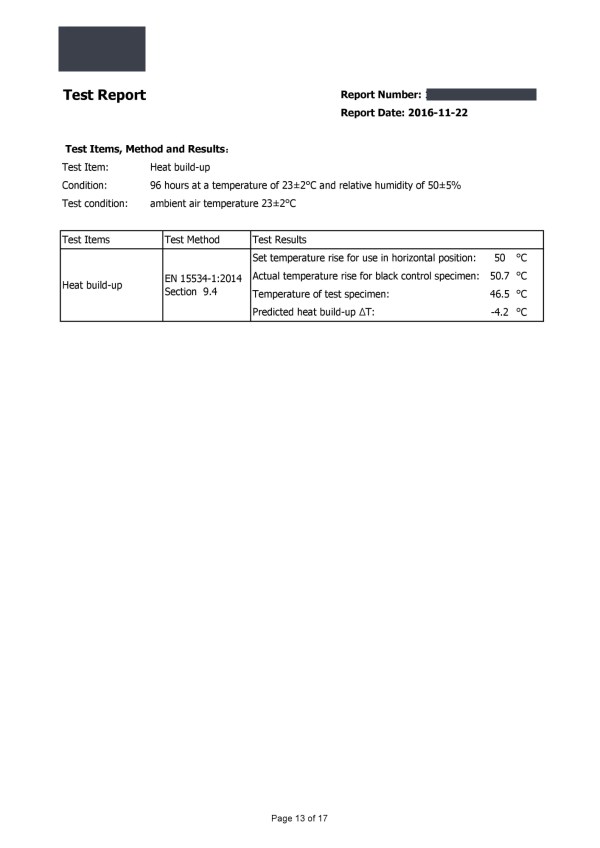

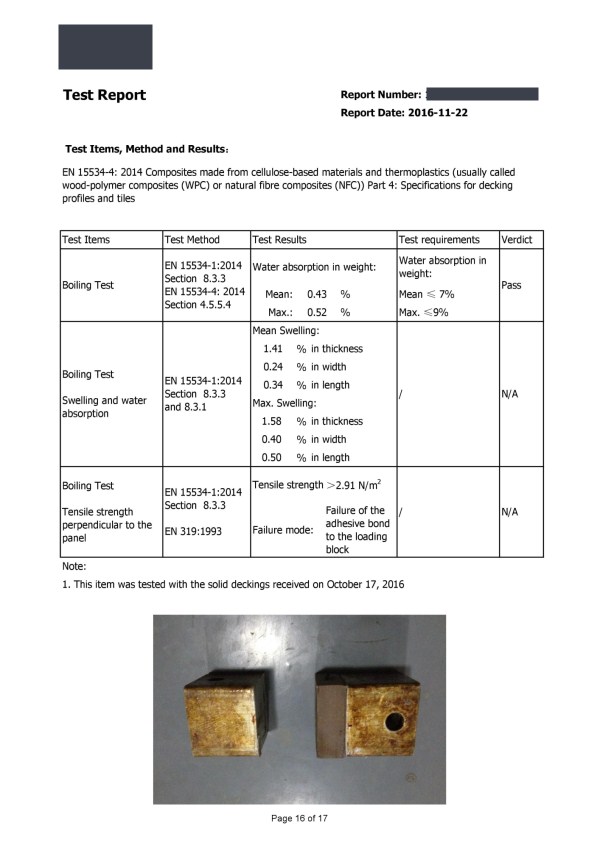

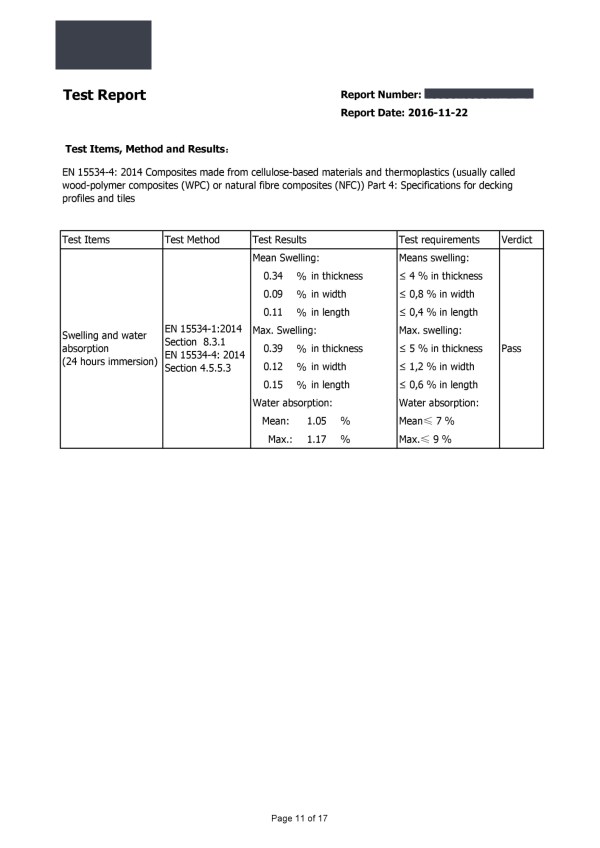

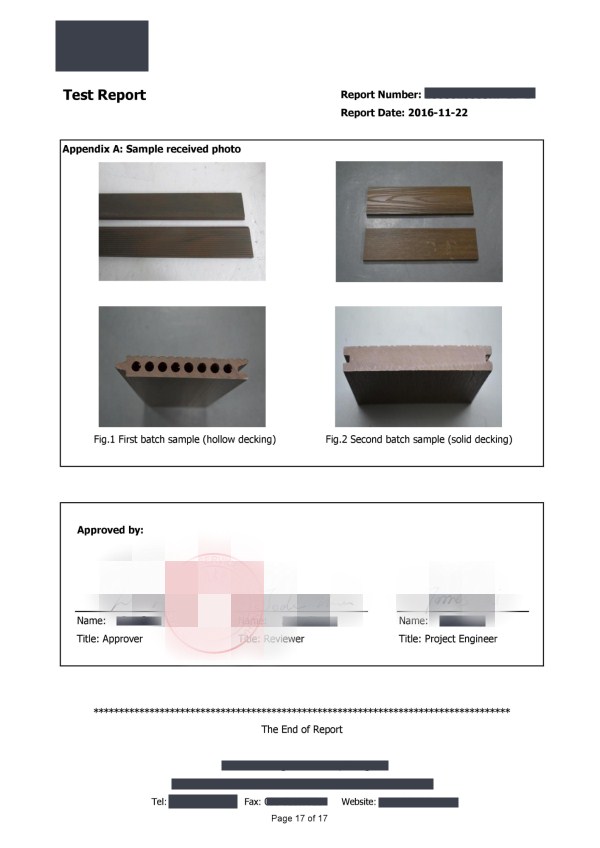

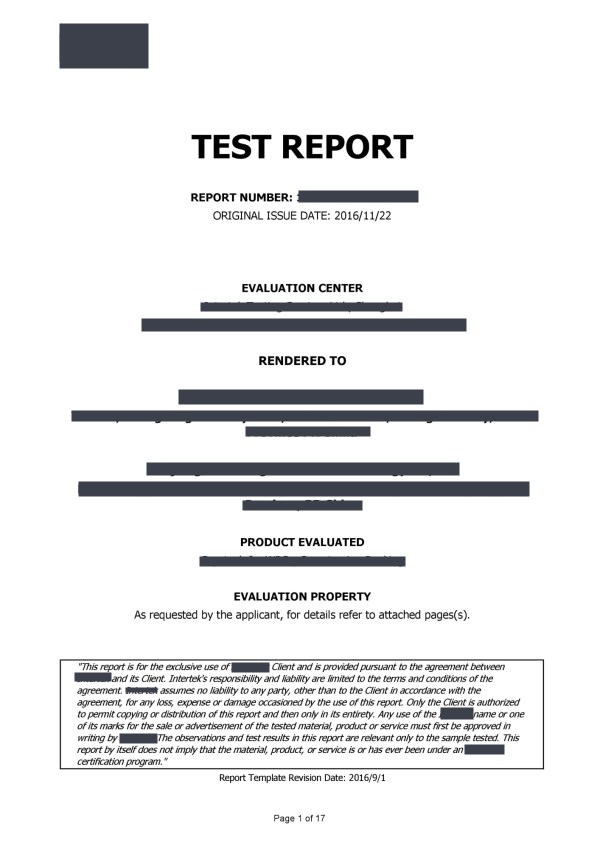

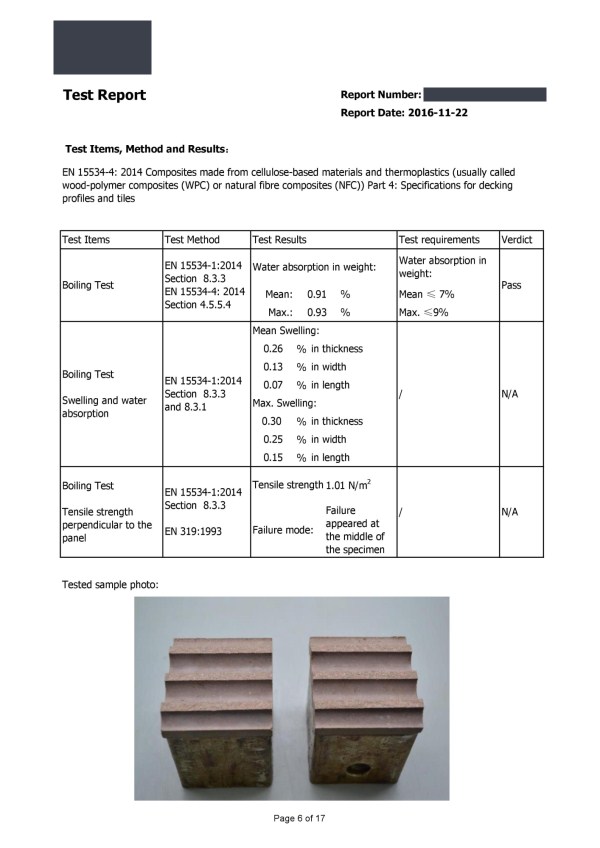

Sample report 样本报告：
