Test item 测试名称:
Fire behaviour and fore side effects of materials and parts 材料和部件的火灾状况和火灾伴生现象
Testing info 测试内容:
| Test Clause and standard | Spcimen Requirement |
| Class S1，可燃等级 S1(机车部件，材料和结构件 小件) | |
| DIN 53438 | 10 pcs 190mm X 90mm X Thickness and 10 pcs 230mm X 90mm X Thickness |
| Class S2～S5，可燃等级 S2到S5 (包括SR 和ST分级)（机车部件，材料和结构件） | |
| DIN 54837 |
10pcs of 190mmX500mmX Actual thickness (each diraction) 如果试样各向异性，横纵各10块 |
| Class SF1~SF3 for flooring materials, 地板铺层的燃烧等级SF1至SF3 | |
| DIN 4102-14 或ISO 9239-1 |
1050mm*230mm*thickness(in service), 6 PCS (3pcs for each direction) 横纵向各3块 |
| Seat test, 座椅的防火能力证明 | |
| DIN54341 | 9 finished products or mock up |
| Seat in closed rooms, 封闭乘客室内的座椅 | |
| DIN EN1021-1 |
Cover material: Small fabric: 800 X 650 mm x 4 pcs Large fabric: 1100 X 650 mm x 2 pcs Filling material: Small foam: 450 X 150 X 75 mm x 4 pcs Medium foam: 450 X 300 X 75mm x 6 pcs Large foam: 450 X 450 X 75 mm x 2pcs |
| DIN EN1021-2 | |
| Smoke Toxcity, 毒性测试 | |
| Smoke generated according to DIN EN ISO 5659-2 and modified by DIN 5510-2 |
12 pcs 75mm×75mm×normal thickness（no more than 25mm) 另：对于不同材料间的对比测试，厚度为1mm。 |
| Electrical Products, 电子技术产品 | |
|
Electrical products in sealed envelopes 密闭包装中的电子技术产品 |
主要是对密闭包装的要求（耐火时间），而非电子产品本身。 |
| wire and cable, 车辆布线要求 | |
| Data cables or optical fibre cables; 数据电缆或者光缆 |
Based on the outer diameter of the canble and diameter of the conductor 试样要求基于电缆外径和导体外径而定 |
| Power cable or electrical cable；电力电缆 | |
| Note:1）对于数据传送：主要为单根垂直燃烧，加烟密度测试；2）对于电力传送：主要为成束垂直燃烧测试，加烟密度测试 | |
|
All other electrical products 不属于上述定义的其他电子技术产品 |
DIN EN 60695-11-10, V-0 |
| 注: 对于非乘客车厢，可以采DIN ISO 4589-2代替 | |
Lead time 测试周期: 常规 regular 9 working days
Others 其他信息:

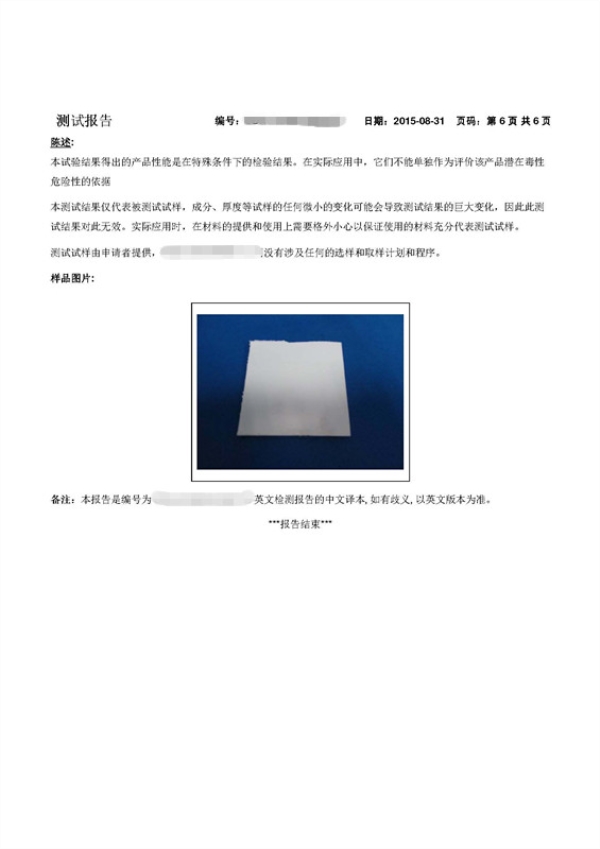

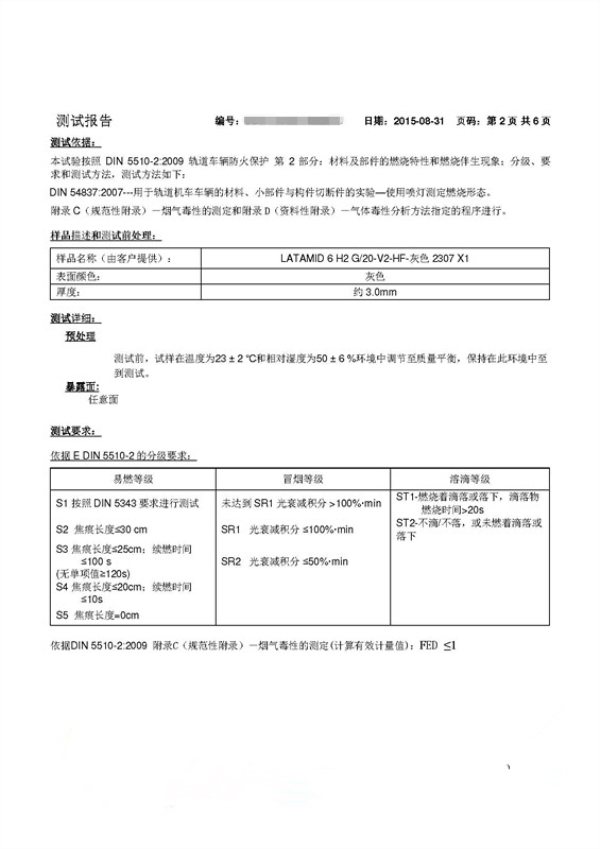

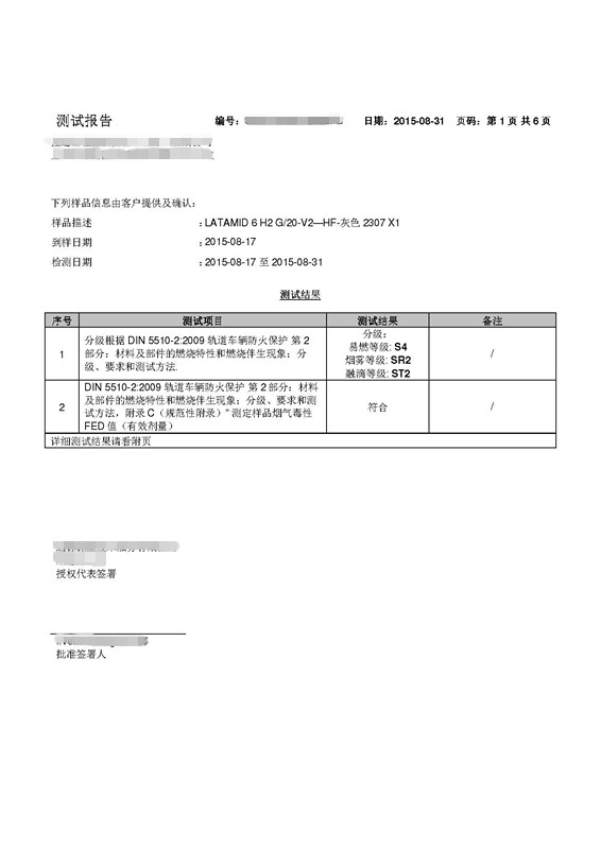

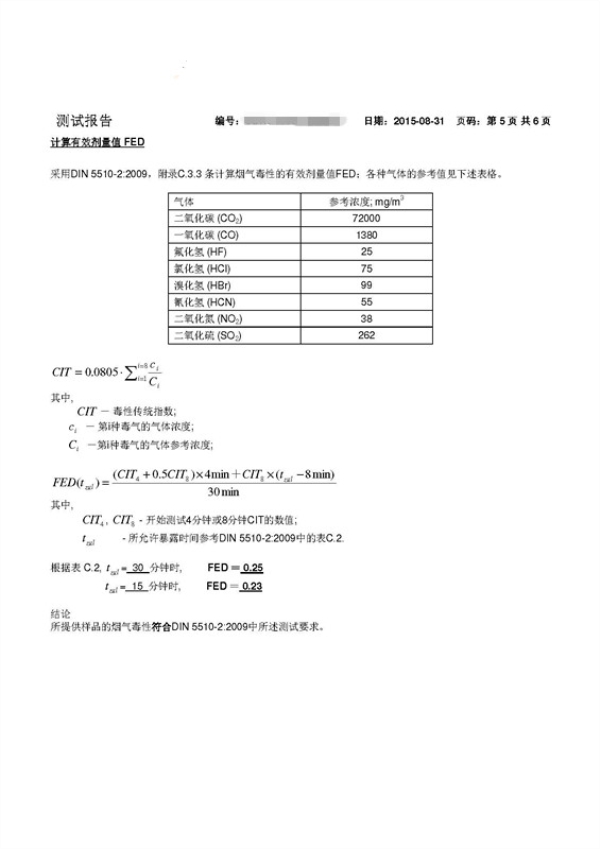

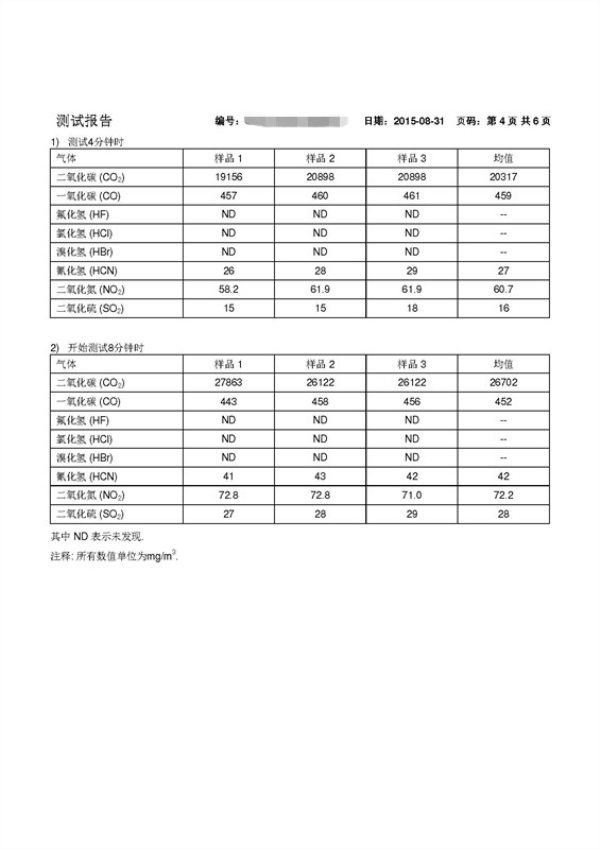

Sample report 样本报告：
Photo reference 参考图片:
