EN 14126返回 Back
防止病毒感染的防护服 - 抗感染剂渗透要求
Protective Clothing Against Infective Agents - Requirements against penetration by infective agents
Protective Clothing Against Infective Agents - Requirements against penetration by infective agents
Test or certification info 测试和认证相关内容:
|
技术条款 Clause |
Test Items 测试项目 |
Test Method 测试方法 |
Class 1 | Class 2 | Class 3 | Class 4 | Class 5 | Class 6 |
Sample Sizes 样品量(PCS) |
TAT 周期 工作天 |
|
|
4.1.2 Mechanical and flammability 机械和可燃性 |
washing [if applicable,* Depending on Care Label] | / | 1 | 7 | |||||||
| Abrasion resistance 耐磨性(rubs) | EN ISO 12947-2 | 10 | 40 | 100 | 400 | 1000 | 2000 | ||||
| Flex cracking resistance 耐曲折损坏性(cycles) | EN ISO 7854 METHOD B | 500 | 1250 | 3000 | 8000 | 20000 | 50000 | ||||
| Flex cracking resistance at -30C 耐曲折损坏性(-30C (cycles) | EN ISO 7854 METHOD B | 100 | 200 | 500 | 1000 | 2000 | 4000 | ||||
| Trapezoidal tear resistance 撕破性能(N) | EN ISO 9073-4 | 10 | 20 | 40 | 60 | 100 | 150 | ||||
| Tensile strength 断裂强力(N) | ENISO 13934-1 | 30 | 60 | 100 | 250 | 500 | 1000 | ||||
| Puncture resistance 穿刺性能(N) | EN863 | 5 | 10 | 50 | 100 | 150 | 250 | ||||
| Resistance to ignition 阻燃性能(点火) | EN 13274-4 Method 3 | specimen stops for 5 s in the flame | 1 | ||||||||
| Resistance to flame 阻燃性能（火焰） | EN 13274-4 Method 3 | specimen passes through the flame | specimen stops for 1 s in the flame | specimen stops for 5 s in the flame | / | / | / | 1 | |||
|
4.1. 3 Chemical requirements 化学要求 |
Resistance to permeation by chemicals 耐化学品渗透(min) | ISO 6529 | Very toxic: Cumulative Mass 20µg/cm2 | 10 | 30 | 60 | 120 | 240 | 480 | ||
| Toxic : Cumulative Mass 75µg/cm2 | |||||||||||
| Other chemicals: Cumulative Mass 150 µg/cm2 | |||||||||||
| Repellency to liquids 拒液率(％) | EN ISO 6530 | > 70 | > 80 | >90 | / | / | / | 1 | 7 | ||
| Resistance to penetration by Liquids 液体透过率(％) | EN ISO 6530 | < 10 | <5 | < 1 | / | / | / | ||||
|
4. 1. 4 Performance requirements against penetration by infective agents 防感染渗透的性能要求 |
Resistance to penetration by blood and body fluids using synthetic blood抗合成血液穿透性 | ISO 16603 | 0 | 1.75 | 3.5 | 7 | 14 | 20 | 1 | 10-12 | |
| Resistance to penetration by blood-borne pathogens using Phi-X 174 bacteriophage抗血源性病原体穿透性(噬菌体)(kPa) | ISO 16604 | 0 | 1.75 | 3.5 | 7 | 14 | 20 | 1 | 10-12 | ||
| Resistance to penetration by infective agents due to mechanical contact with substances containing contaminated Equids 抗感染物质渗透能力(湿态细菌)(Min) | EN ISO 22610 | ≤15 |
15 |
30 |
45 |
60 |
t>75 | 1 | 10-12 | ||
| Resistance to penetration by contaminated solid particles 耐汚染颗粒物穿透率(干态细菌)(log cfu) | EN ISO 22612 |
2 |
l |
<1 | / | / | / | 1 | 10-12 | ||
| Resistance to penetration by contaminated liquid aerosols 耐液体气溶胶渗透率(Log) | ISO DIS 22611 |
l |
3 |
log>5 | / | / | / | ||||
|
4.2 Performance requirements for |
Seam strength 接缝强力(N) | ENISO 13935-2 | 30 | 50 | 75 | 125 | 300 | 500 | 1 | 7 | |
|
4. 3 Whole suit requirements 整衣防护性能 |
type 1a, 1b, 1c, 2 气密型/非气密型防护服 | EN943-l(EN943-2 for ET suits) | |||||||||
| type 3 液体致密型防护服 | EN466 |
6 Garments: All materials Cloth: 2 Metres full width Each Materials. |
9-12 | ||||||||
| type 4 喷雾致密型防护服 | EN465 |
6 Garments: All materials Cloth: 2 Metres full width Each Materials. |
9-12 | ||||||||
| type 5防固态颗粒物防护服 | ENISO 13982-1 |
14 Garments: All materials Cloth: 2 Metres full width Each Materials. |
9-15 | ||||||||
| type 6 防轻度化学液体飞溅防护服 | EN 13034 clause 5 | 有金属：6 Garment in smallest size; All materials Cloth: 5*1 Metres full width Each Materials.Metallic materials 20 sets. 无金属：4 Garment in smallest size; All materials Cloth: 5*1 Metres full width Each Materials. | 9 | ||||||||
| Partial body protection 对人体各部分提供防护的防护服 | EN467 | ||||||||||
|
Classification of resistance to penetration by contaminated liquids under hydrostatic pressure 受污染液体在静水压力下的抗渗透性分类 (ISO/FDIS 16604) |
|
| Class | Hydrostatic pressure at which the material passes the test |
| 6 | 20 kPa |
| 5 | 14 kPa |
| 4 | 7 kPa |
| 3 | 3,5 kPa |
| 2 | 1,75 kPa |
| 1 | 0 kPa ( R ) |
| ( R ) this means that the material is only exposed to the hydrostatic pressure of the liquid in the test cell | |
|
Classification of resistance to penetration by infective agents due to mechanical contact with substances containing contaminated liquids 因机械接触含有受污染液体的物质而产生的抗感染剂渗透性分类 班级突破时间 |
|
| Class | Breakthrough time, t min |
| 6 | t > 75 |
| 5 | 60 < t ≤ 75 |
| 4 | 45 < t ≤ 60 |
| 3 | 30 < t ≤ 45 |
| 2 | 15 < t ≤ 30 |
Norm refer 涉及法规: ISO16604, EN13034, EN ISO 13982, EN340, EN14325, PPE/CE
Refer products 涉及产品: 防护服
Lead time 周期: 常规服务 regular service 30 工作日 working days
Sample size 送样规格: 16pcs
finished products 十六套成品 + 16pcs x 7.5cm x 7.5cm per color per material 每种颜色每种材料
Others 其他信息:
| Types of protective clothing against infective agents | |
| Type of clothing | Relevant standard |
| type 1a, 1b, 1c, 2 |
EN 943-1 (EN 943-2 for ET suits) 危险的固态,液态和气态化学品,包括液体和固体悬浮微粒的防护服 |
| type 3 |
EN 466 化学防护服.防护液态化学药品腐蚀(包括液态气溶胶).性能要求 |
| type 4 |
EN 465 带防喷连接液体防护服, 化学品, 性能要求 |
| type 5 |
prEN ISO 13982-1 防固体颗粒用防护服.第1部分:提供对身体全方位保护的防空气传播固体微粒的化学防护服性能要求 |
| type 6 |
prEN 13034 液态化学制品防护服 对液态化学品具有有限保护作用的化学防护服的性能要求 |
Marking 标示要求：
The clothing shall be marked in accordance with the applicable requirements of the relevant standard for chemical protective clothing.
The marking of protective clothing against infective agents shall contain the following additional information:
a) the number of this European Standard;
b) the type of protective clothing, as specified in Table 5, with the suffix “-B”, e.g. type 3-B;
c) the pictogram “protection against biological hazard”
服装应按照相关标准的适用要求进行标记化学防护服。
防护服抗感染剂的标记应包含以下附加信息：
a） 本欧洲标准的编号；
b） 防护服的类型，如表5所示，带有后缀“-b”，例如3-b型；
c） “生物危害防护”标志

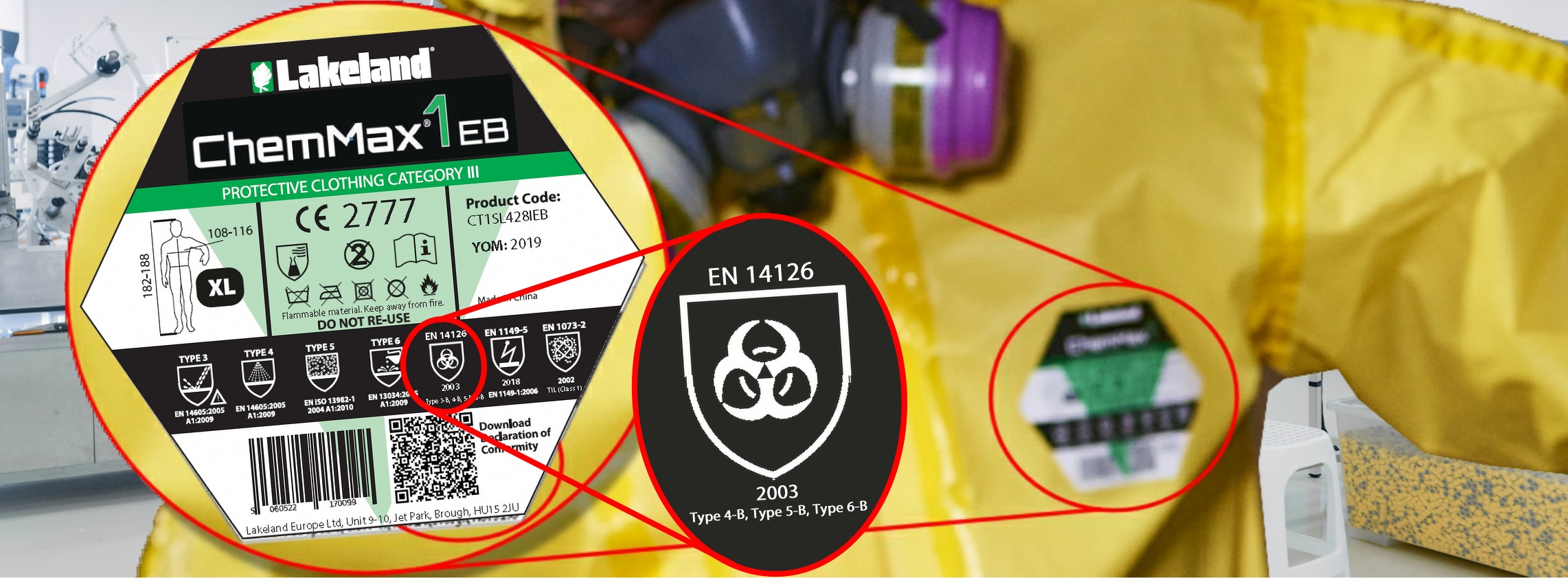

Photo for reference 涉及图片:

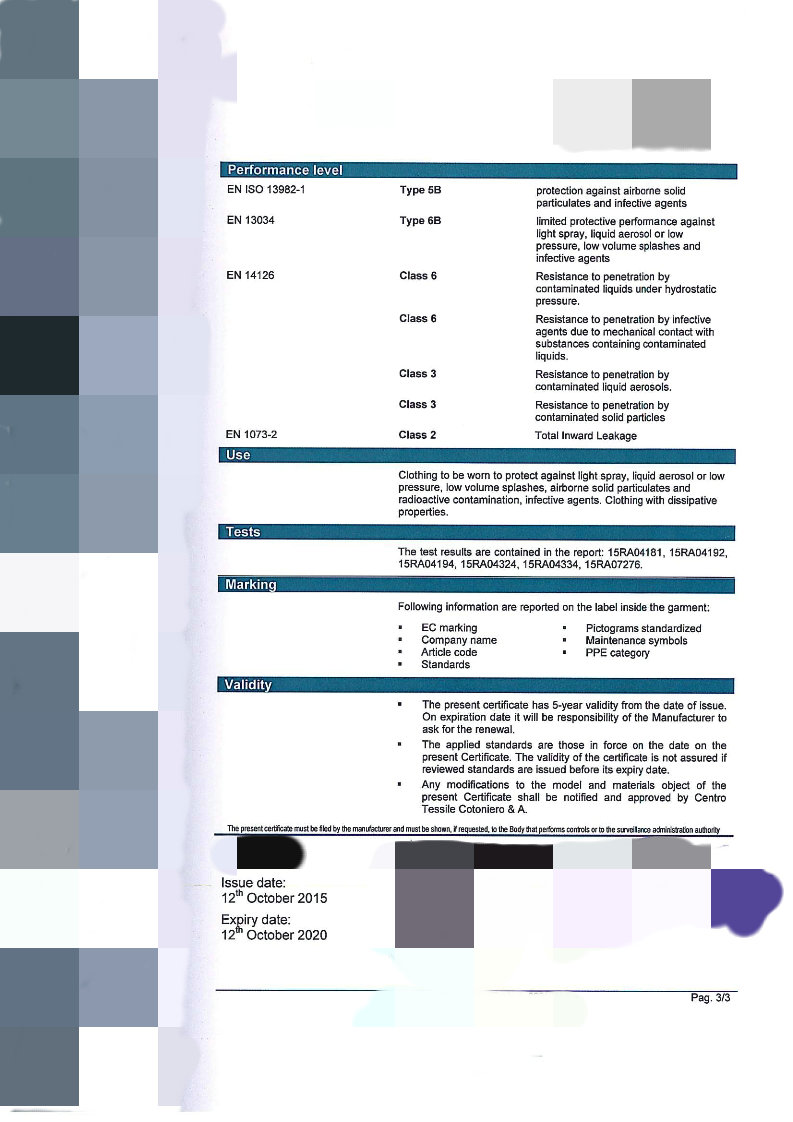

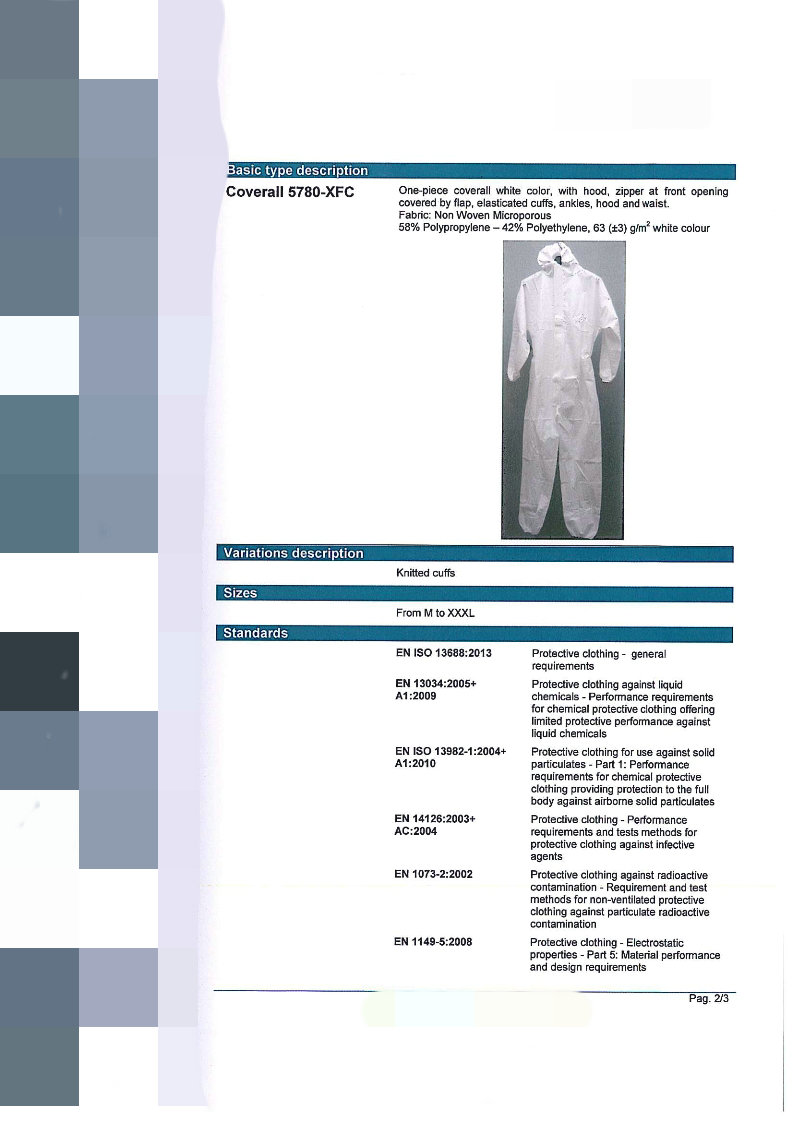

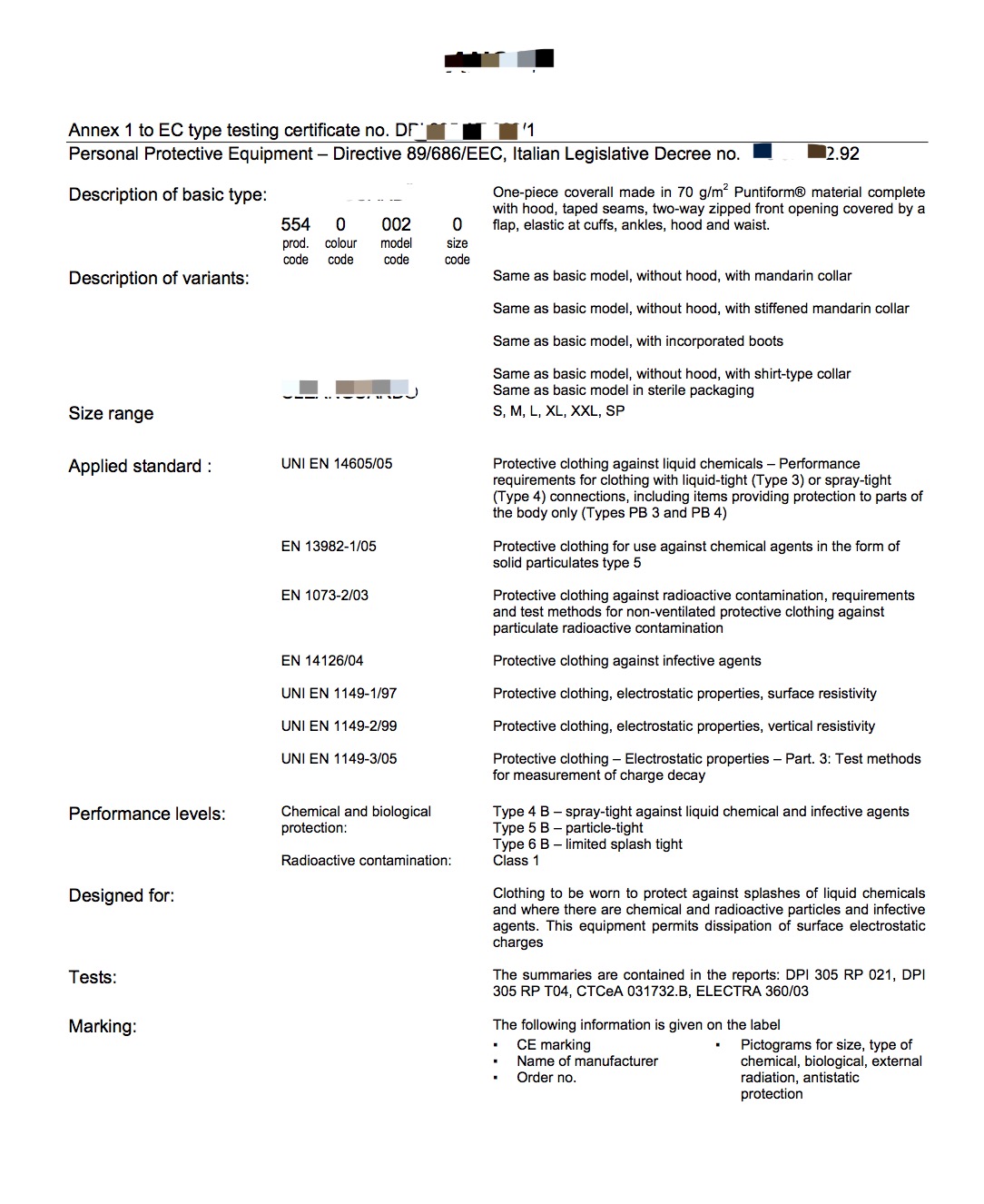

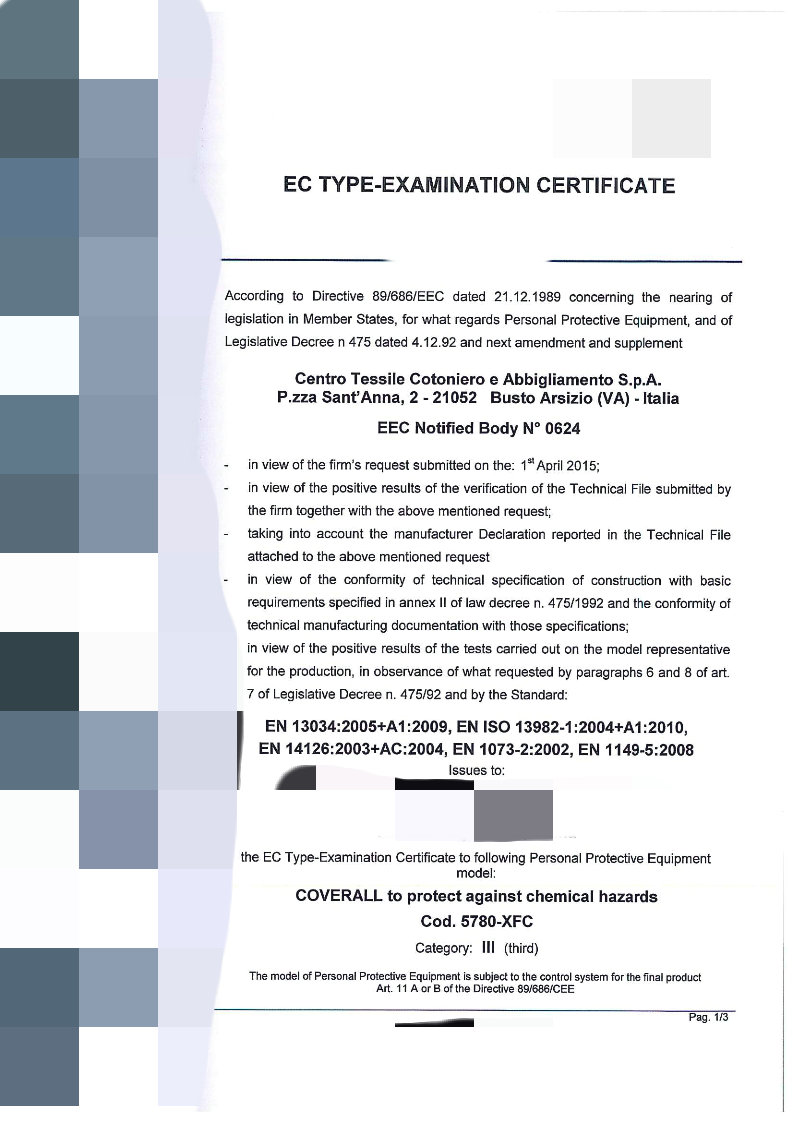

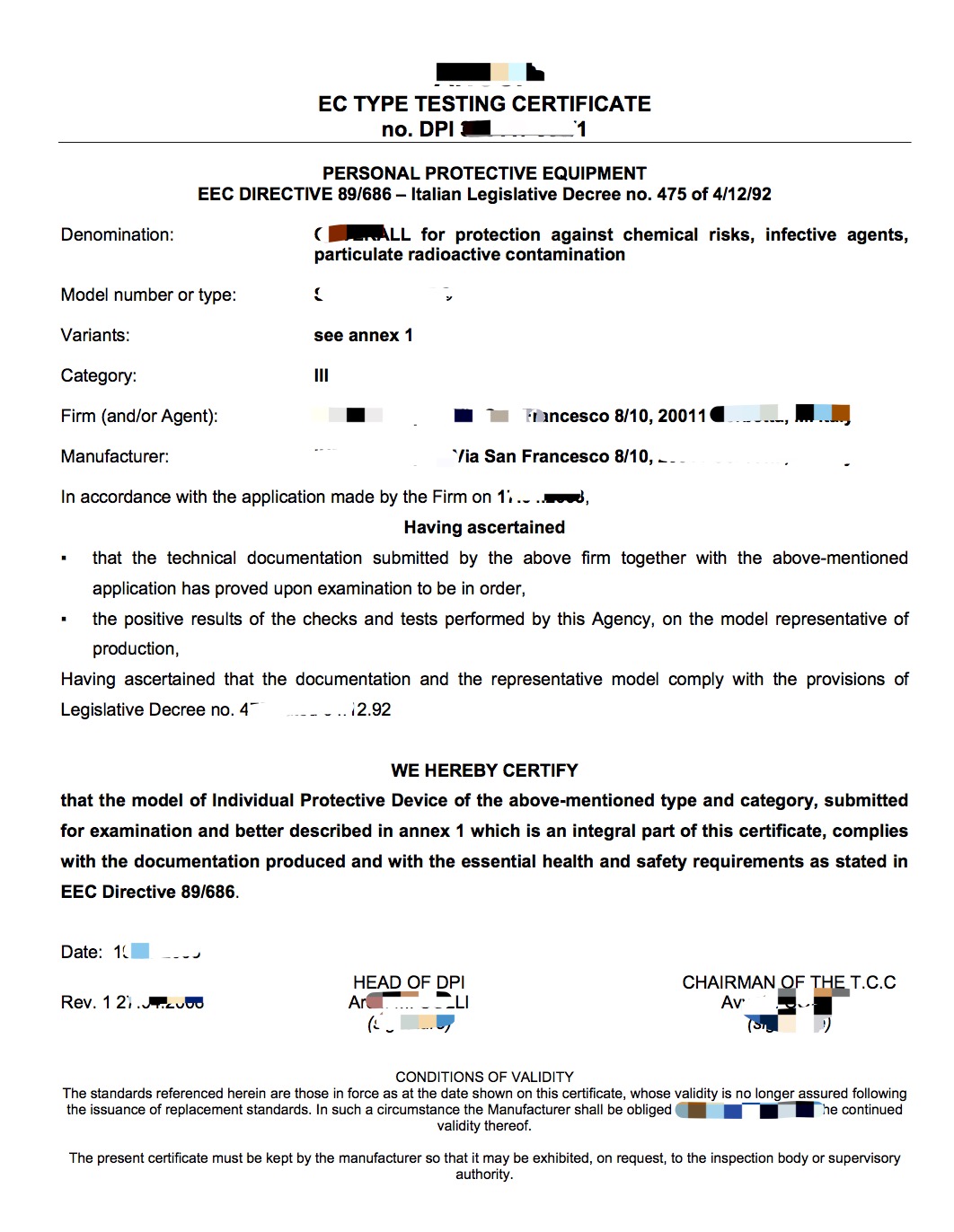

Sample certificate 样本证书：
