EN12150-2返回 Back
Test or certification item 测试或认证名称: EN 12150-2 建筑玻璃-热钢化钠钙硅酸盐安全玻璃-第2部分:合格评定/产品标准

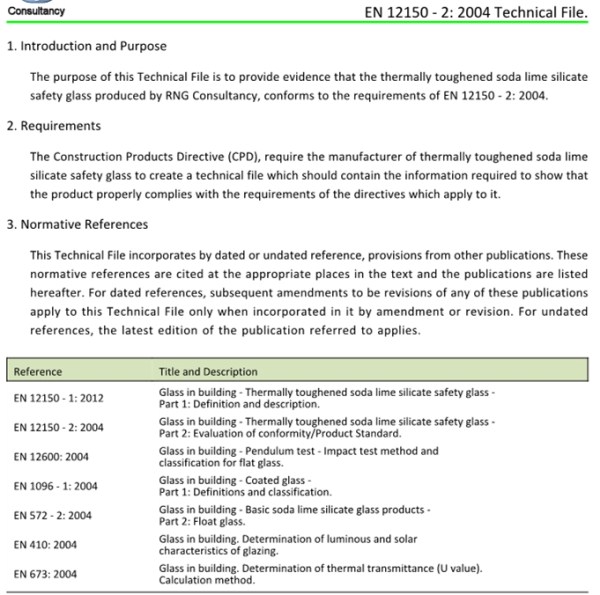

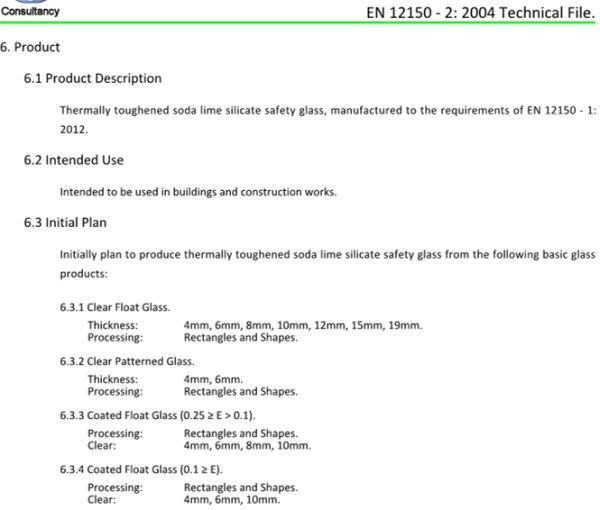

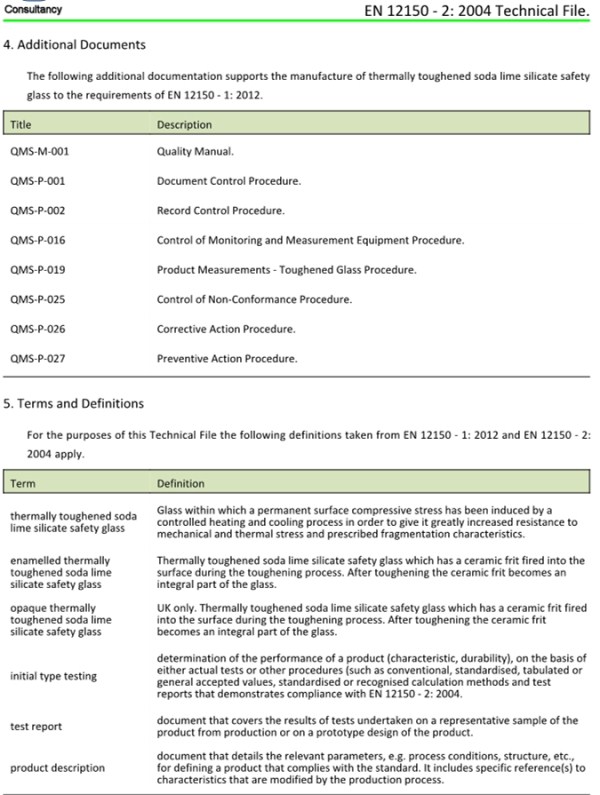

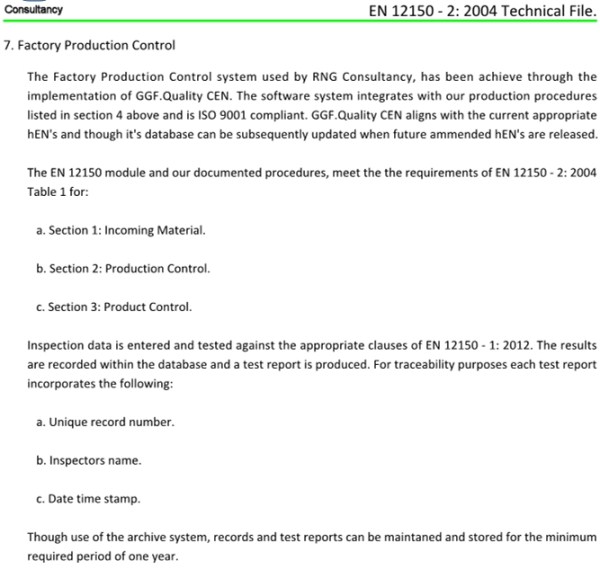

Sample report 样本报告：

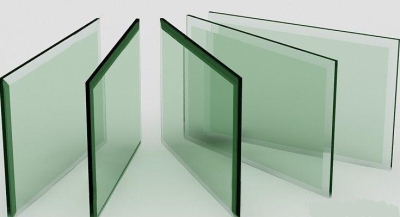

Photo for reference 涉及图片:
| EN 12150-2 Glass in buiding - thermally toughened soda lime silicate safety glass - Part 2: Evaluation of conformity/Product standard | |||||
| EN 12150-2 建筑玻璃-热钢化钠钙硅酸盐安全玻璃-第2部分：合格评定/产品标准 | |||||
| Clause | Test Requirement | Test Standard | Price (RMB) | Sample requirement(mm) | TAT(working days) |
| 条款 | 测试要求 | 测试标准 | 测试费用(人民币) | 样品要求(毫米) | 测试周期(工作日) |
| 4.3.2.1 | Resistance to fire | EN 13501-2 | 只能做非承重隔墙，第1小时RMB，之后增加半小时加RMB | 成品2pcs | 20 |
| 耐火反应 | |||||
| 4.3.2.2 | Reactio to fire | EN 13501-1 | According to Class | ||
| 与火反应 | |||||
| 4.3.2.3 | External fire behavior | EN 13501-5 | On request | ||
| 外部防火 | |||||
| 4.3.2.4 | Bullet Resistance | EN 1063 | On request | ||
| 防弹 | |||||
| 4.3.2.5 | Explosion resistance | EN 13541 | On request | ||
| 防爆 | |||||
| 4.3.2.6 | Burglar resistance | EN 356 | On request | ||
| 防盗 | |||||
| 4.3.2.7 | Pendulum body impact resistance | EN 12600 | /12pcs | (876±2) x (1938±2)mm | 7 |
| 冲击测试 | Class 1 190mm | ||||
| Class 2 190 and 450mm | |||||
| Class 3 190, 450 and 1200 mm | |||||
| 4.3.2.8 | Thermal durability | EN 12150-1 | /3pcs | 300x300mm 3pcs | 7 |
| 耐热性 | |||||
| 4.3.2.9 | Resistance against wind, snow, permanent load and/or imposed loads of the glass unit 抗风压,雪荷载,永久荷载 | - | On request | ||
| 4.3.2.10 | Direct airborne sound reduction | EN12758 | On request | ||
| 空气声隔声 | |||||
| 4.3.2.11 | U-value | EN 673 |
|
100x100mm 1pc | 7 |
| U值 | |||||
| 4.3.2.12 | Light Transmittance | EN 410 |
|
100x100mm 1pc | 7 |
| 可见光透射比 | |||||
| 4.3.2.12 | Light Reflectance | EN 410 |
|
100x100mm 1pc | 7 |
| 可见光反射比 | |||||
| 4.3.2.13 | Solar Direct Transmittance and reflectance | EN 410 |
|
100x100mm 1pc | 7 |
| 太阳光直接透射反射比 | |||||
| 4.5 | Dangerous substances | Reach |
|
≥200g | 10 |
| 有害物质 | |||||
| Annex B | |||||
| B.1.1 | Four point bending strength test | EN 1288-3 | /10pcs | 360x1100mm 10pcs | 7 |
| 四点弯曲测试 | |||||
| B.1.2 | Optical surface pre-stress measurement | EN 12150-1 | On request | ||
| 光学表面预应力测试 | |||||
| B.2 | Fragmentation test | EN 12150-1 | /5pcs | 360x1100mm 5pcs | 7 |
| 碎片测试 | |||||

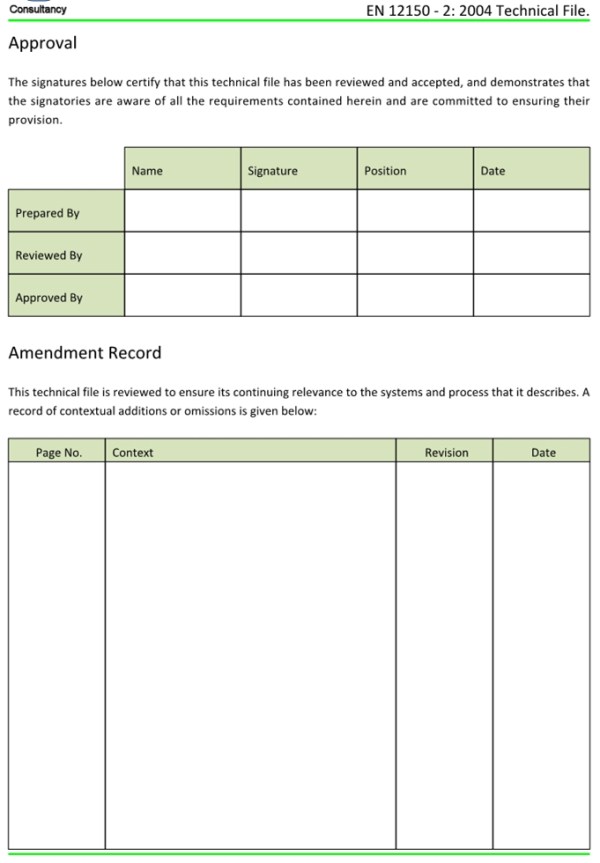

Sample report 样本报告：

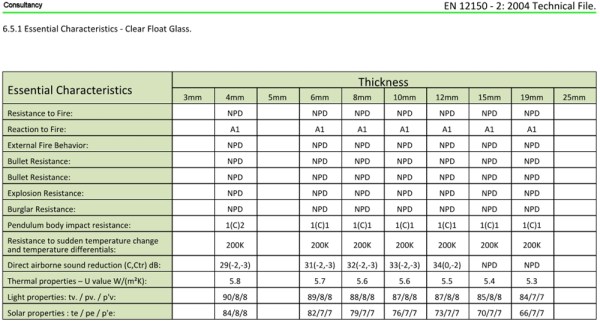

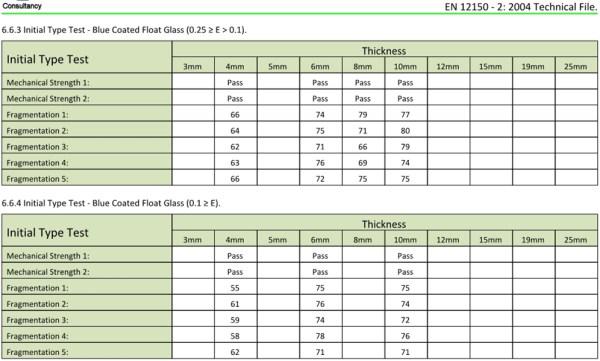

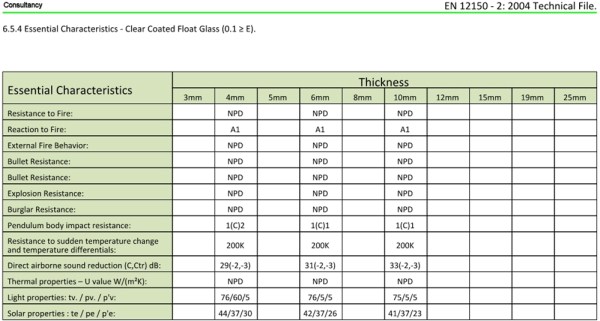

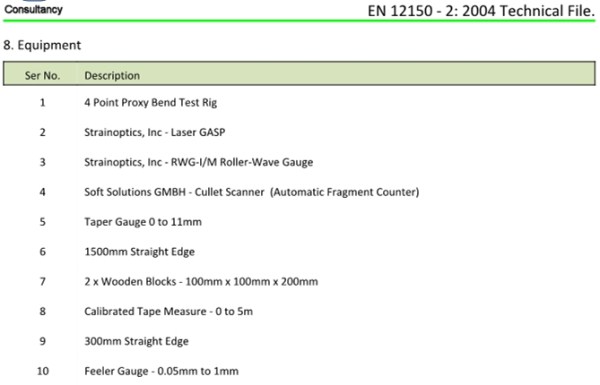

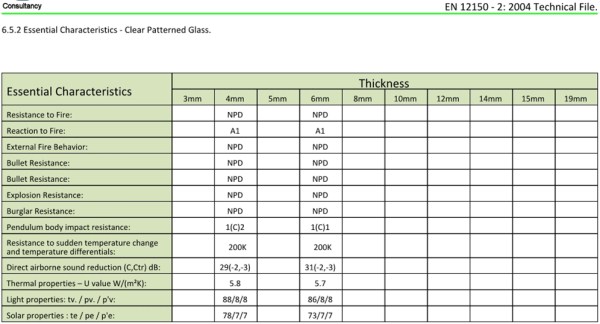

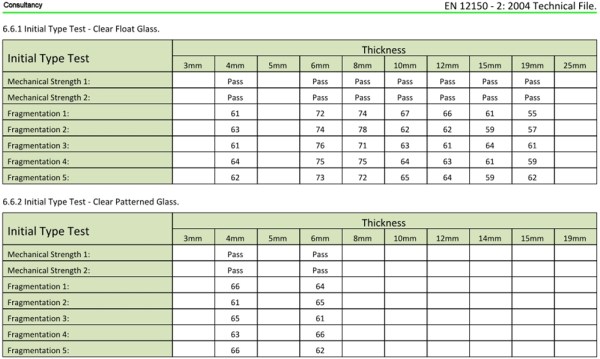

Photo for reference 涉及图片:
