EN 14904返回 Back
Test Item 测试名称: 运动地板 Sport Flooring
Sample size 送样规格: 16m2
Test info 测试内容：
-Resistance to wear 耐磨测试
-Resistance to impact 耐冲击测试
-Resistance to a rolling load 滚轮测试
-Reaction to fire 防火测试
-Formaldehyde release 甲醛释放测试
-Content of pentachlorophenol PCP五氯苯酚释放测试
-Others 其他测试
Lead time 测试周期: Regular service 20 working days
Others 其他信息:
THE IMPORTANCE OF EN 14904 STANDARDS
EN-14904 athletic floor performance standard was adopted by the European Union through the European Committee for Standardization. This approach allows specific use floors such as basketball and volleyball courts to be designed with performance criteria that are more suitable for their intended use.
There is only one EN standard ensuring uniform testing for athletic floors. This will result in less confusion and a set of criteria that can evaluate floor performance in a more uniform manner and creates a larger selection of floors in the marketplace.
EN TESTS
The chart below for key specific EN 14904 requirements.
There is only one EN standard ensuring uniform testing for athletic floors. This will result in less confusion and a set of criteria that can evaluate floor performance in a more uniform manner and creates a larger selection of floors in the marketplace.
EN TESTS
The chart below for key specific EN 14904 requirements.
|
|
Requirements
|
|
Force Reduction (min)
|
25 % < FR <75%
(Range +/- 5% of Average) |
|
Ball Rebound (min)
|
90% < BR
(Range +/- 3% of Average) |
|
Vertical Deformation (mm)
|
StVv < 5 mm
|
|
Rolling Load
|
1500 N
|
|
Slip Resistance
|
80 < SR < 110
|
Durability Test and environmental test
Smoke production
EN 13501-1
- s1: Smoke ≤ 750% x minutes
- s2: Products not satisfying the class 1 criterion
EN 14904
Classification required for all products that claim reaction to fire in class Dfl, Cfl, Bfl or A2fl.
Content pentachlorophenol (PCP)
- Sports floor coverings shall not contain pentachlorophenol or a derivative thereof as a component in the production process of the product or of its raw materials.
- In cases where verification is required, if the content is less than 0,1% by mass this requirement shall be considered to be met.
Formaldehyde emission Test method EN 717
- 2 classifications: E1 and E2
- If no formaldehyde-containing materials are added during production or post-production processing: Class E1.

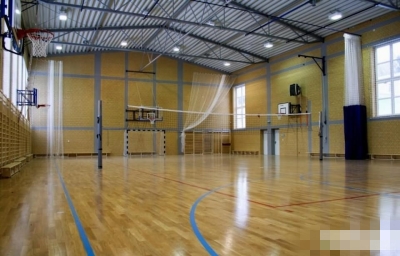

Sample for reference 参考图片:

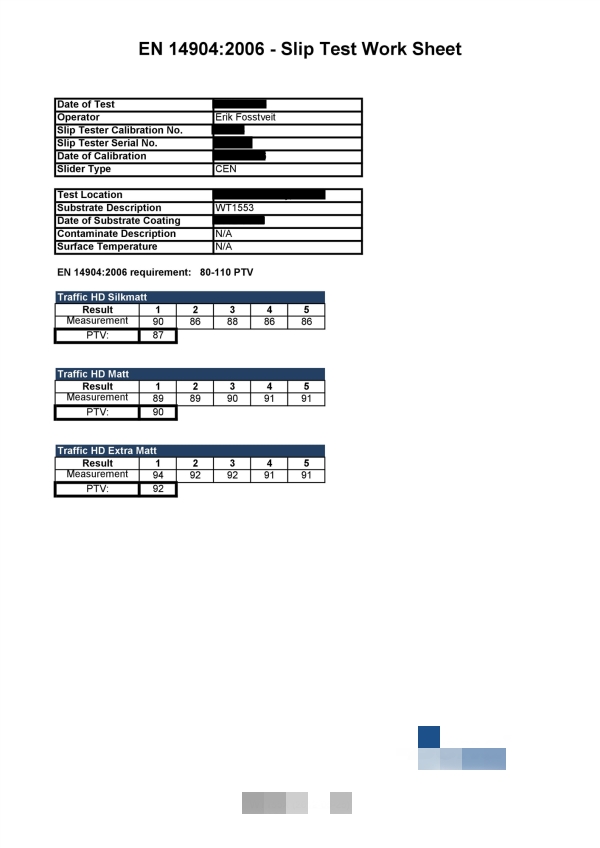

Sample Report 报告样本：
