EN 15649返回 Back
Test item 测试名称: Floating leisure articles for use on and in the water
休闲浮力产品 ( 产品必须两个气室, 尺寸直径要 120cm 以上 )
休闲浮力产品 ( 产品必须两个气室, 尺寸直径要 120cm 以上 )
Test info 测试内容：
|
A
|
|
Floating leisure articles intended for quasi static positional use on the water and position of user upon the buoyant structure. Single and collective use, mainly passive. Normally no mechanical means of propulsion, but possible. Devices may be of design that provides floating stability other do not and have to be balanced by the user - minimum age above 36 months
- the product includes use in deep water
|
|
B
|
|
Floating leisure articles intended for quasi-static use but position of user inside a buoyant structure around the user’s body (relatively tight fit). Buoyant structure fully enclosing or with openings. Devices may provide a body holding system or user is expected to hold himself by the upper arms and hands. Body holding system might be an integrated seat, straps or other means of holding regardless of the body posture (sitting, standing, laying, keeling etc.). user’s body is more or less immersed. Normally the upper part (chest upwards) is out of the water. Single or collective/passive or active use. normally no mechanical means of propulsion but possible
- B1: use out of user’s standing depth
- Minimum age / body weight: variable but above 36 months / 18 kg.
|
|
C
|
|
Floating leisure articles for dynamic use, i.e. application at high speed. Position of user is upon or inside the buoyant structure. There may be a cockpit or seat or other means to give hold to the user. The device is towed behind external means of propulsion. Towing rope fixed to device or held by user. User is required to manage floating stability and safe course behind the towing devices.
- C1: static use towable, static user.
- C2: active sport use towable, active user, sport application.
- C3: active extreme use towable, active user, extreme application.
- use beyond user.s standing depth.
- minimum age variable but above 6 years.
|
| EN15649-1 General safety 基本安全要求 |
| EN15649-2 Marking 标识 |
| EN15649-3 A class A类设备特殊安全要求 |
| EN15649-4 B class B类设备特殊安全要求 |
| EN15649-5 C class C类设备特殊安全要求 |
| EN15649-6 D class D类设备特殊安全要求 |
| EN15649-7 E class E类设备特殊安全要求 |
| Floating leisure articles for use on and in the water, EN 15649-1 Part 1: classification, materials, general requirements and test methods | |
| Clause | Test Requirement |
| 5.1 | General |
| 5.2.1 | Foot/leg entrapment |
| 5.3.1 | Head/neck entrapment |
| 5.4.1 | Torso entrapment on safety line with regard to children |
| 5.5.1 | Accessible protruding parts causing entanglement |
| 5.7.1 | Design working pressure |
| 5.8.1 | Load bearing components |
| 5.9.1 | Towing device |
| 5.10.1 | Valves and valve adapters |
| 5.11.1 | Edges, corners and points |
| 5.12.1 | Shearing and crushing points |
| 5.13.2.1 | Cyclic pressure test for devices manufactured from unsupported material |
| 5.13.2.2 | Overpressure test for inflatables made from reinforced or fabric covered material |
| 5.13.3 | Heat test |
| 5.13.4 | Air tightness test for inflatables made from unsupported material |
| 5.13.5 | Air tightness test for inflatables made from reinforced or fabric covered material |
| 5.14.1 | Buckles and other fixings |
| 6 | Material requirements and test methods |
| 7 | Durability of warnings and markings |
|
|
|
| Floating leisure articles for use on and in the water, EN 15649-2+A1 Part 2: Consumer information | |
| Clause | Test Requirement |
| 4 | Consumer information |
| 5 | Requirements related to printing |
| 6 | Product safety label |
| 7 | Instructions |
| This pricelist do not include printing durability test in EN 15649-1. | |
| 此价格不包含-1中有关-2部分的价格 | |
|
|
|
| Floating leisure articles for use on and in the water, EN 15649-3+A1 Part 3: Additional specific safety requirements and test methods for Class A devices | |
| Clause | Test Requirement |
| 4.2.3.1 | A1-products, space per person and admissible number of users |
| 4.2.4.1 | A2-products, space per person and admissible number of users |
| 4.3.1.1 | Amount of buoyancy and stable floating position |
| 4.3.2.1 | Residual buoyancy of devices claiming floating stability (CASES A, B) - General |
| 4.3.2.x | Residual buoyancy and stable floating after failure of one air chamber |
| 4.3.4.1 | Escape from the device (body entrapment, leg/foot entanglement) |
|
4.3.5.1 |
Grab handles and safety lines (not applicable to air mattresses) |
| 4.3.6.1 | Re-embarkation from the water in normal use and failure of one air chamber |
| 4.3.7.1 | Extreme high super structure (wind, drift) |
| 4.3.8.1 | Anchorage |
| 4.3.9.1 | Giant rings with bottom, strength of entire device |
| 5 | Consumer information |
|
|
|
| Floating leisure articles for use on and in the water, EN 15649-5 Part 5: Additional specific safety requirements and test methods for Class C devices | |
| Clause | Test Requirement |
| 4.1 | General |
| 4.3.2.1 | Sizing |
| 4.3.3.1.1 | C1 tubes or other near-ring shaped devices |
| 4.3.3.2.1 | C1 bikes, bananas, etc. (user sitting in row on the product) |
| 4.3.5.1 | Grab handles, availability and strength |
| 4.3.6.1 | Buoyancy and load capacity |
| 4.3.7.1 | Residual buoyancy |
| 4.3.8.1 | Foot, leg and torso entrapment |
| 4.3.8.2 | Handles, foot rest or knee straps for supporting the users during use |
| 4.3.9.1 | Valves and other protruding parts |
| 4.3.11.1 | Strength of towing device attachment |
| 4.3.13.1 | Colour of towing rope |
| 4.3.14.1 | Floatability of towing rope |
| 4.3.15.1 | Fittings |
| 4.3.16.1 | Elasticity of towing rope |
| 4.4.2 | Selection of test subjects |
| 4.4.4 | Selection of water craft and towing personnel for testing |
| 4.4.5 | Test conditions, test course, duration of test, test speed, wind speed |
| 4.4.6 | Manoeuvres |
| 4.4.7 | Efficiency of drainage system for inflatable chambers designed with an external cover |
| 4.4.8 | Entrapment, entanglement, additional practical in-water test during capsizing |
| 4.4.9 | Re-embarkation, practical in-water test |
| 4.4.10 | Residual buoyancy, additional practical in-water test |
| 6.2 | Intended use |
| 7 | Written warnings in the manual |
| 8 | Signals |
Lead time 测试周期: 常规 Regular service 15 working days
Sample size 送样规格: 4pcs
Others 其他信息：

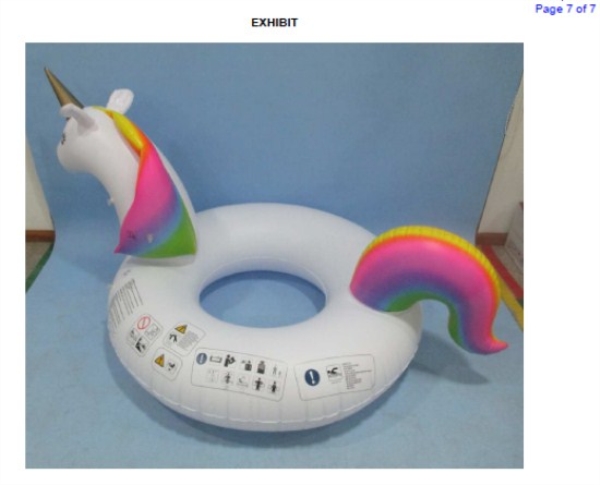

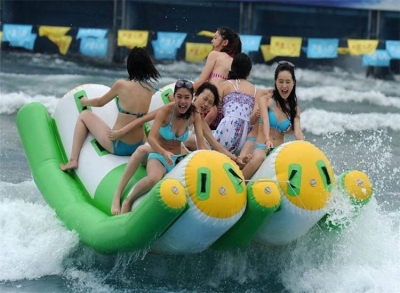

Picture for Reference 参考图片：

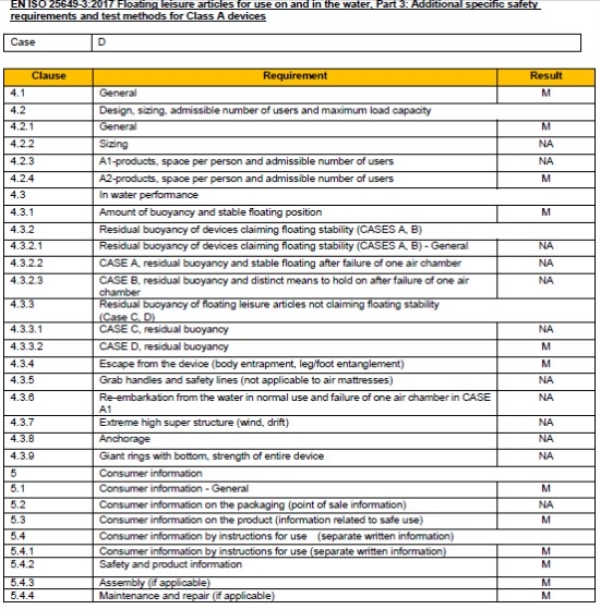

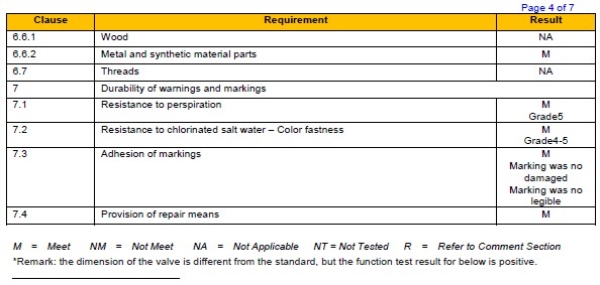

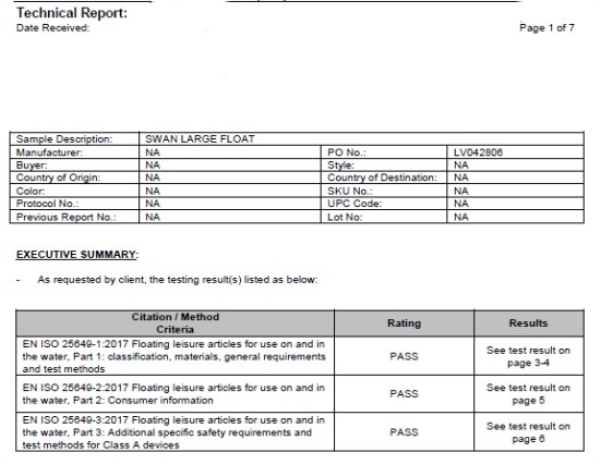

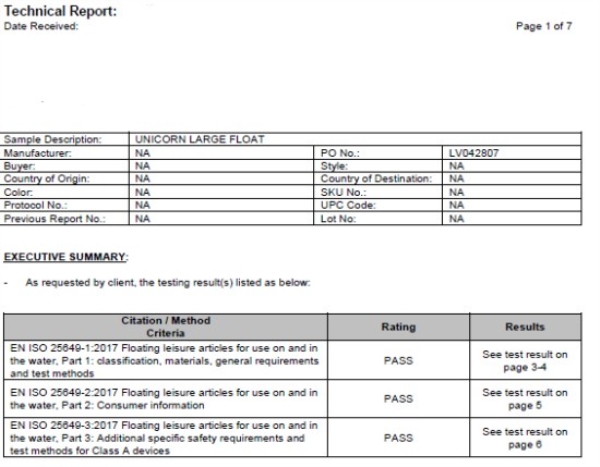

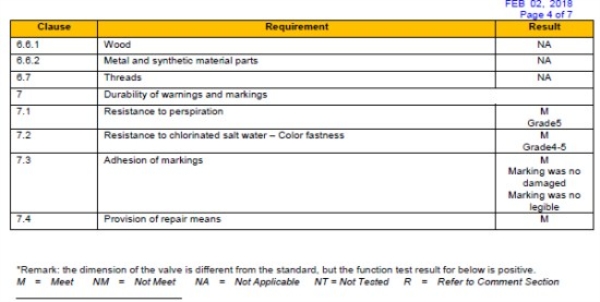

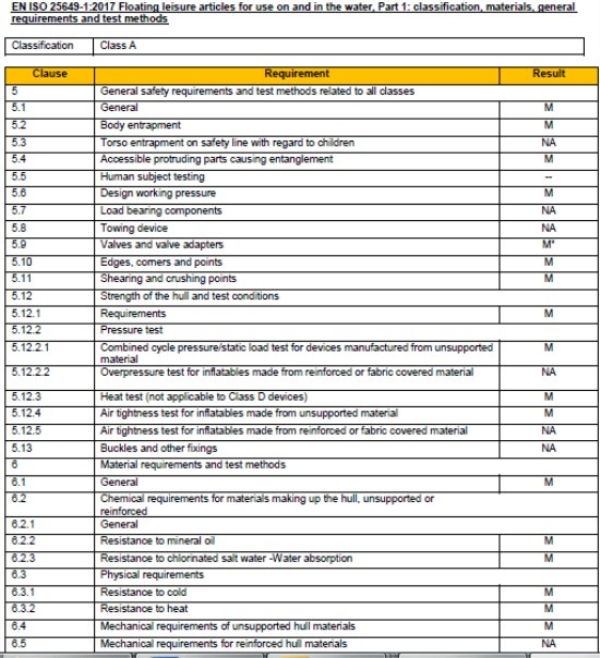

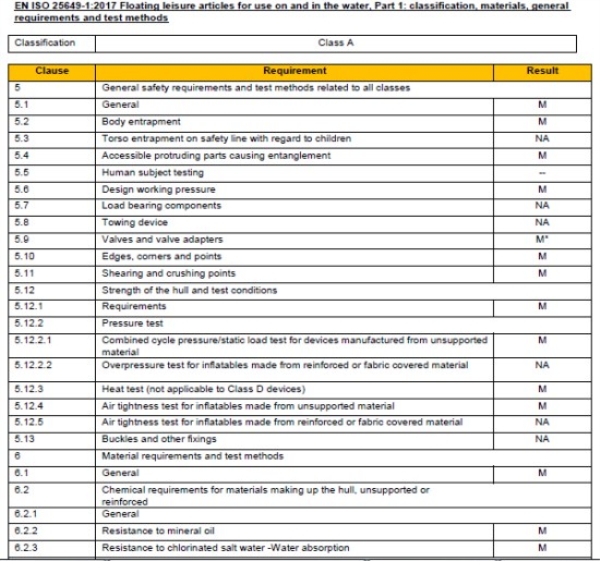

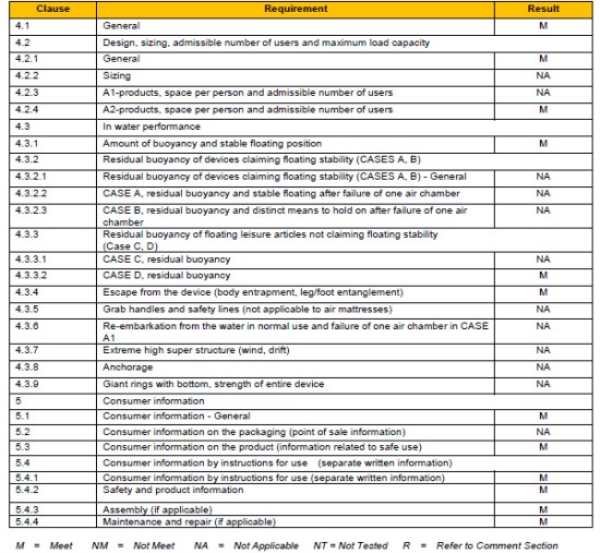

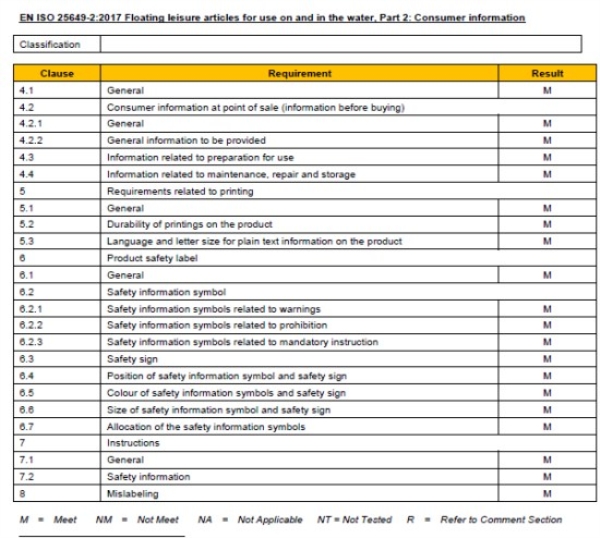

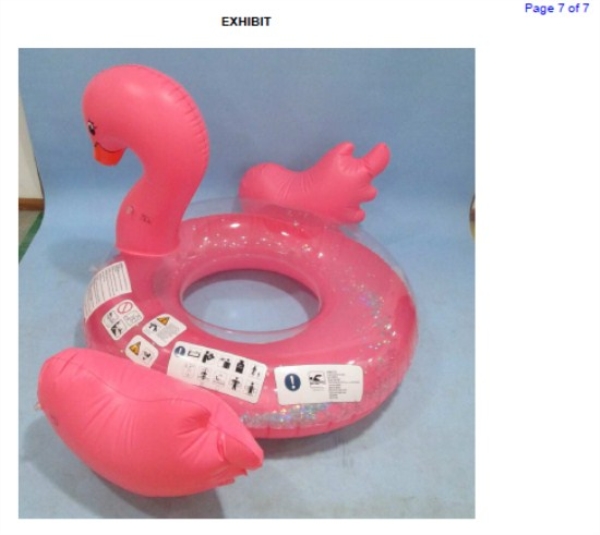

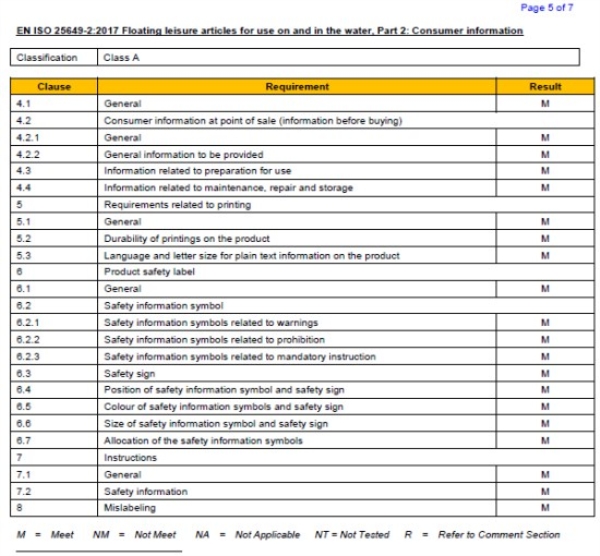

Sample Report 报告样本：
