EN 1836 / ISO 12312返回 Back
Test item 测试名称: Sunglasses and sunglare filters for general use 太阳眼镜
Product refer 涉及产品: night vision goggle 夜视镜
Test info 测试内容:
Sunglass test protocol 太阳眼镜测试方案
| Clause4.1.5.2 Blue-light-absorption/transmittance 蓝光吸收/传送特性 |
| Clause4.1.5.3 Absorption and transmittance in the UV spectral range 紫外A/B波段吸收和传送特性 |
| Clause4.2 Optical power of oculars 视觉光学功率 |
| Clause 4.3 Scattered light分散光 |
| Clause6.2.1.1 Luminous transmittance 光投射比 |
| Clause6.2.1.2 Infrared transmittance 红外传送特色比 |
| Clause6.2.1.3 UV-transmittance 紫外A/B波段特色比 |
| Clause6.2.1.4 Eye-side reflectance 眼角反射比 |
| Clause6.2.2.1 Uniformity of luminous transmittance 光投射比均匀性 |
| Clause6.2.2.2 Recognition of signal lights 交通信号识别 |
| Clause6.2.3.1 Photochromic sunglare filters 光特色比 |
| Clause6.2.3.2 Degree of polarisation 偏振度 |
| Clause6.2.3.3 Polarizing Sunglare filters 偏振特色比 |
| Clause6.2.3.4 Gradient filters 梯度比 |
| Clause6.3 Optical power values 光学功率值 |
| Clause6.4 Scattered light 散光 |
| Clause6.5 Material and surface quality 材料和表面质量 |
| Clause6.6.1 Minimum robustness 最小球径、柱径偏差 |
| Clause6.6.2 Enhanced robustness 增强球径、柱径偏差 |
| Clause6.7 Resistance to radiation 防辐射 |
| Clause6.8 Ignition 阻燃性 |
| Clause6.10 Test for mechanical requirements for complete sunglasses 棱径度测试 |
| Clause7 Information and labelling 标签补充资料 |
Night vision goggle 夜视镜测试方案
- quality of materials and surfaces
- refractive power
- prismatic difference
- diffusion of light
- transmittance
- UV protection
- UV- Stability
- mechanical strength
- flammability
- refractive power
- prismatic difference
- diffusion of light
- transmittance
- UV protection
- UV- Stability
- mechanical strength
- flammability
Lead time 测试周期: 常规 regular service 25 working days
Sample size 送样规格: 16pcs
Others 其他信息:
| 根据不同眼镜所用不同材质, 以下化学测试可能涉及 |
| a) Nickel release, EN 1811 or EN 12472 |
| b) Cadmium, EN1122 |
| c) Toxicity, EN71-3 |
| d) Azo Dyes, EN12432 |
| Remark: |
| 一批同样材料和结构的太阳眼镜，但是其镜片颜色各不相同不可以按同一款式做测试。 |
| 因为不同颜色的镜片其光学性能也不一样，需另外收取全套费用。 |
Sample for reference 参考图片:

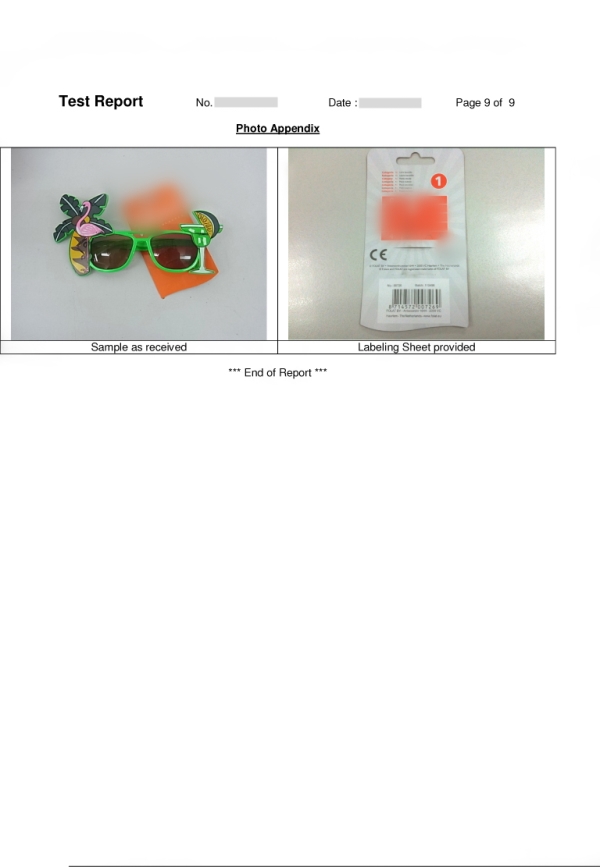

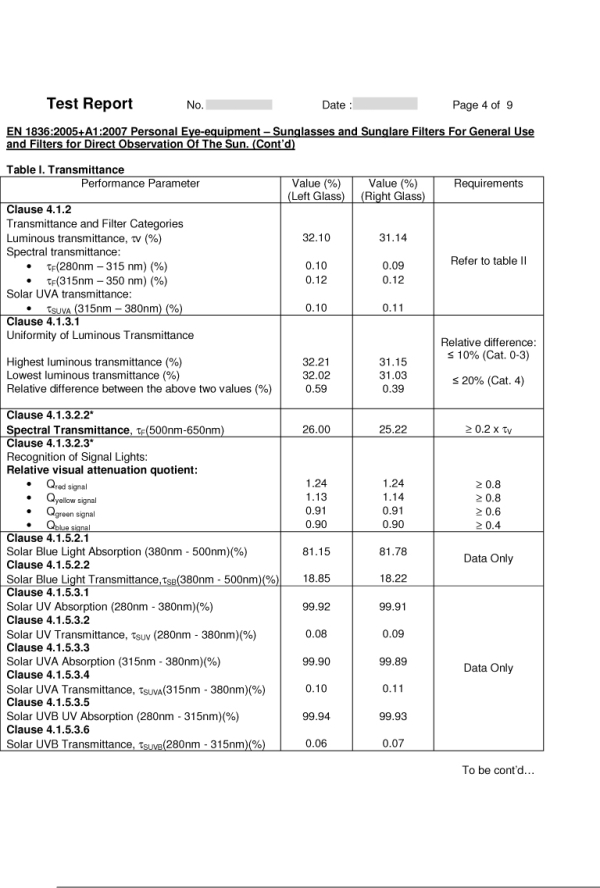

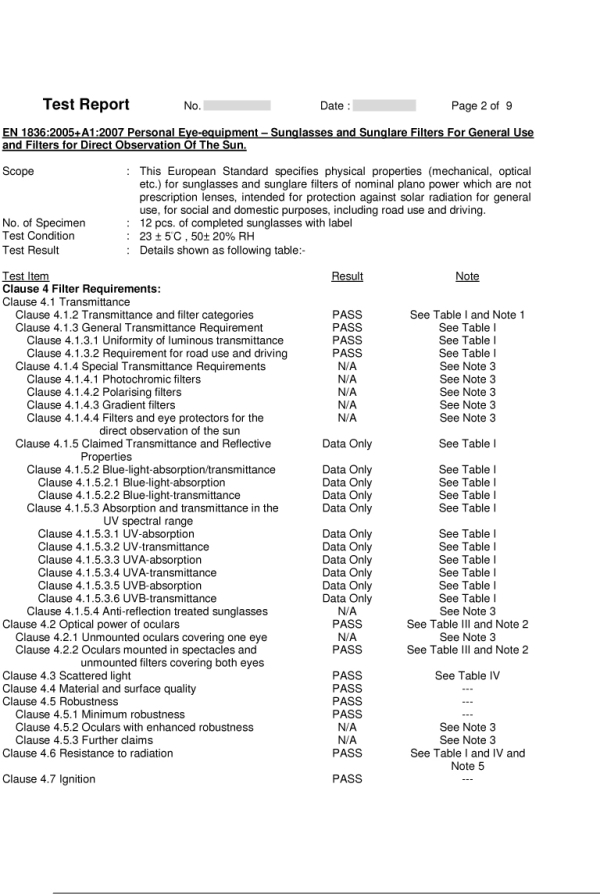

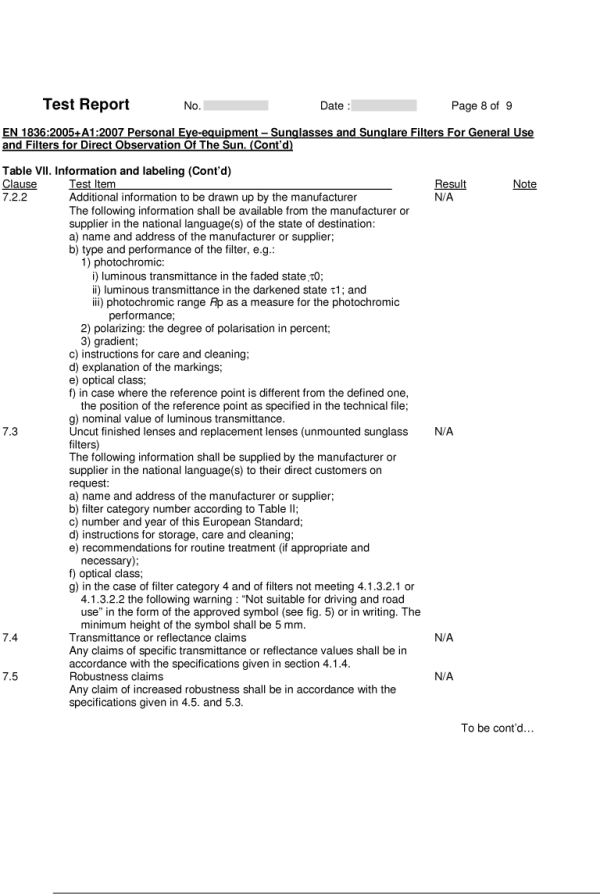

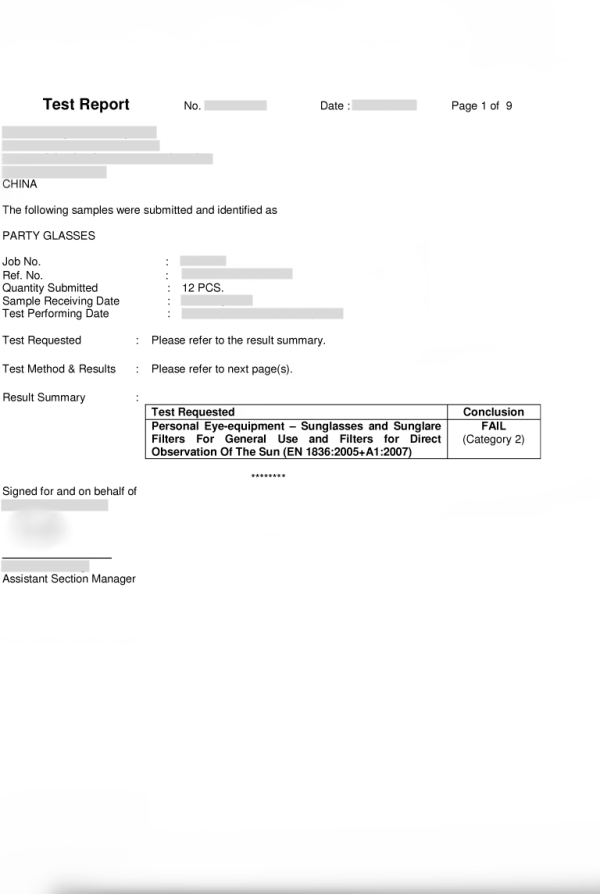

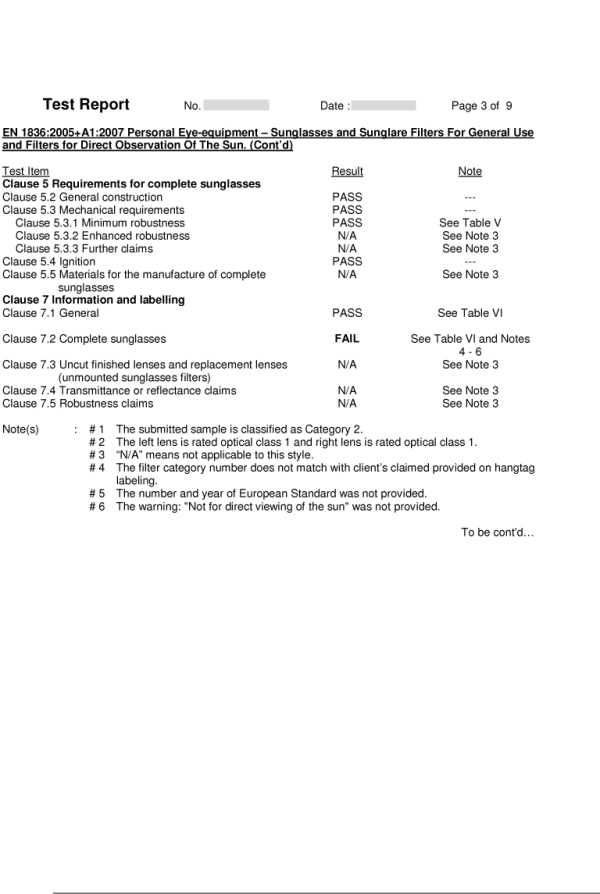

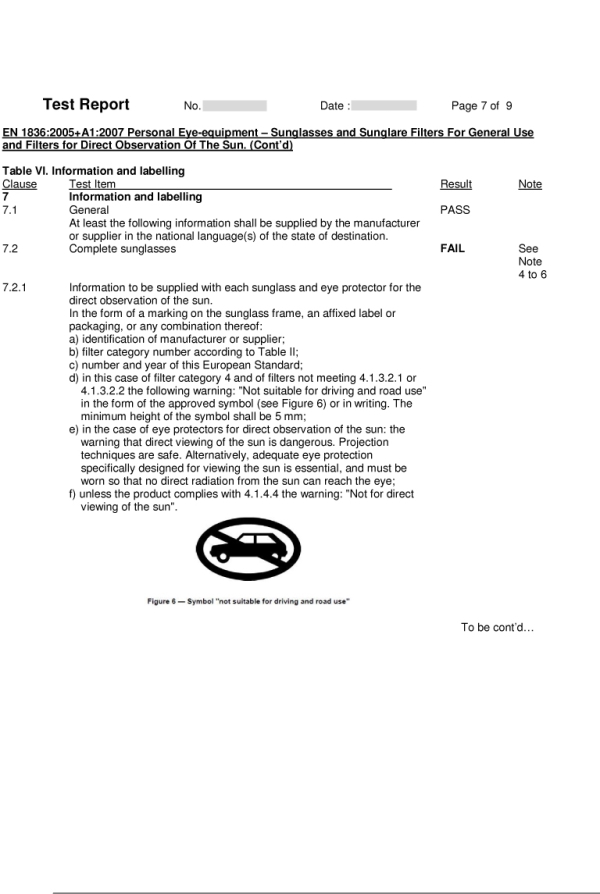

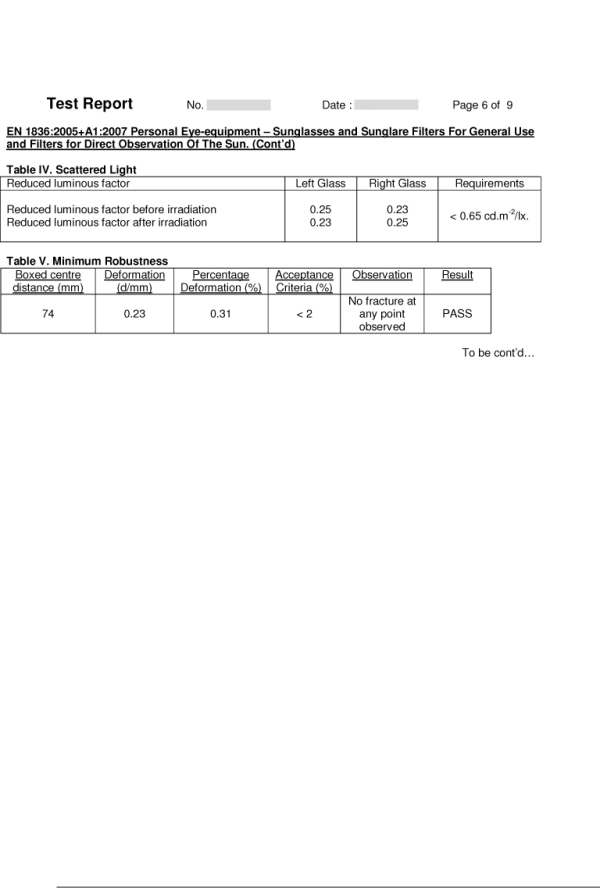

Sample Report 报告样本：
