FIRA/FRQG C001-4返回 Back
| Test item 测试名称: FIRA/FRQG C001 Furniture - Children’s Domestic Furniture - General safety requirements 儿童家具 | |
| Scope: This Standard specifies general safety requirements for children’s furniture for domestic indoor, outdoor and camping use. | |
| The standard is applicable to all types of domestic seating, tables and storage furniture for use by children from 3 years old to 12 years old. | |
| Clause | Test Requirement |
| 6 | Safety Requirements |
| 6.1 | Materials 材料要求 |
| Additional charge | Visual check 目测检查 |
| Corrosion resistance for metal parts (recommend ISO 9227 NSS for 24hrs)金属部分的耐腐蚀 | |
| Toxic Elements test (EN 71-3)有毒元素 | |
| Formaldehyde content for textile (EN ISO 14184-1)纺织品的甲醛含量 | |
| Formaldehyde content for Particleboards (Class E1 in BS EN 312:2003))刨花板的甲醛含量 | |
| Formaldehyde content for Fibreboards (Class E1 in BS EN 622:2003)纤维板的甲醛含量 | |
| Surface flash for textile with pile surface (EN 1103)纺织品的燃烧测试 | |
| Flammability test for covering material which child can enter in clause 6.7 (EN 71-2 clause 4.4)儿童可以进入产品的燃烧 | |
| FIRA/FRQG C002 Furniture -children's domestic furniture- seating- requirement for strength, stability and durability | |
| Scope: This Standard specifies safety, stability, strength and durability requirements for children’s seating for domestic indoor, outdoor and camping use. | |
| The standard is applicable to all types of domestic seating for indoor, outdoor and camping use by children from 3 years old to 12 years old. | |
| Clause | Test Requirement |
| 1 | Forward overturning |
| 2 | sideway stability without arms |
| 3 | sideway stability with arms |
| 4 | rearward stability |
| 5 | Seat and back static load test 座位和靠背静态载荷测试 |
| 6 | Seat front edge static load test 座位前部静态荷载测试 |
| 7 | Footrail static load 脚踏静态载荷测试 |
| 8 | Arm and wing sideways static load test 扶手和护翼侧向静态载荷测试 |
| 9 | Arm downwards static load test 扶手垂直静态载荷测试 |
| 10 | Seat & back fatigue test 靠背和座位疲劳测试 |
| 11 | Seat front edge fatigue 座位前部疲劳测试 |
| 12 | Arm fatigue test 扶手疲劳测试 |
| 13 | Leg forwards static load test 椅腿前向静态载荷测试 |
| 14 | Leg sideways static load test 椅腿侧向静态载荷测试 |
| 15 | Seat impact test 座位冲击测试 |
| 16 | additional seat impact test(Annex A) |
| 17 | Back impact test 靠背冲击测试 |
| 18 | Drop test 跌落测试 |
| Annex B | Additional requirements for seating with unusual features |
| Sample required: | 1 set of completed product with assembly instruction（If applicable）. |
| 样品要求: | 1 套成品并包括安装说明书(如适用). |
| Turnaround time: | Regular (8 working days), Express (6 working days). |
| 所需时间: | 标准(8 个工作天), 加快(6 个工作天). |
| Remark: | 1. Test methods refer to BS EN 1728:2001& BSEN 1022 |
| 备注 | 2. All seating shall satify the safety requirement in FIRA/FROG C001 |
| 3. Seating with other features, such as tables and storage shall meet FIRA/FROG C003/C004. | |
| 4. Price list does not include FIRA/FROG C001/C003/C004 | |
| 5. Please let client advise the children age intended for use when request. | |
| FIRA/FRQG C003 Furniture -children's domestic furniture- Tables and desks- requirement for strength, stability and durability | |
| Scope: This Standard specifies safety, stability, strength and durability requirements for children’s tables for domestic indoor, outdoor and camping use. | |
| The standard is applicable to all types of domestic tables and desks for indoor, outdoor and camping use by children from 3 years old to 12 years old. | |
| Clause | Test Requirement |
| 1 | Stability under vertical load 竖直稳定性 |
| 2 | stability under drawers open 抽屉打开稳定性 |
| 3 | stability for table supporting parasols 带有遮阳伞的桌子的稳定性 |
| 4 | horizontal static load 水平荷载测试 |
| 5 | vertical static load 垂直荷载测试 |
| 6 | horizontal fatigue test 水平方向疲劳测试 |
| 7 | impact test 冲击测试 |
| 8 | drop test 跌落测试 |
| Sample required: | 1 set of completed product with assembly instruction（If applicable）. |
| 样品要求: | 1 套成品并包括安装说明书(如适用). |
| Turnaround time: | Regular (7 working days), Express (5 working days). |
| 所需时间: | 标准(7 个工作天), 加快(5 个工作天). |
| Remark 备注 | 1. All tables and desks shall satify the safety requirement in FIRA/FROG C001 |
| 2. Tables with other features, such as seating and storage shall meet FIRA/FROG C002/C004 | |
| 3. Price list does not include FIRA/FROG C001/C002/C004 | |
| 4. Please let client advise the children age intended for use when request. | |

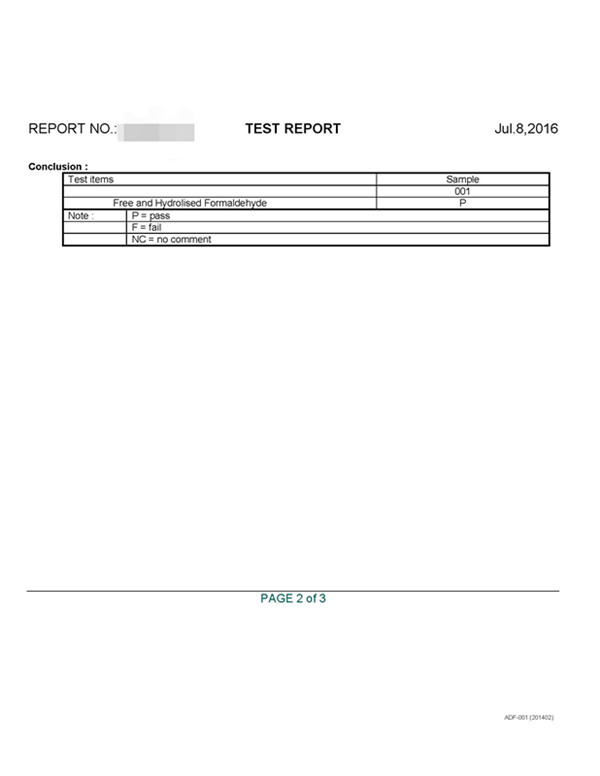

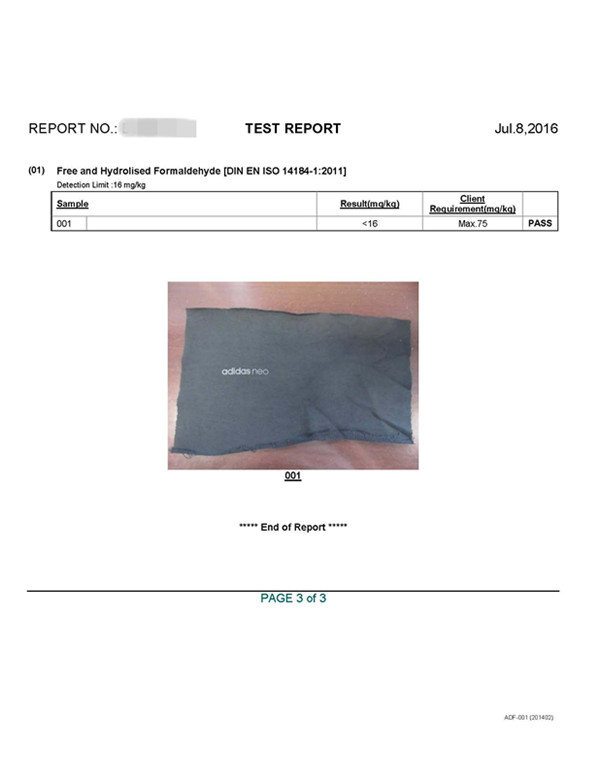

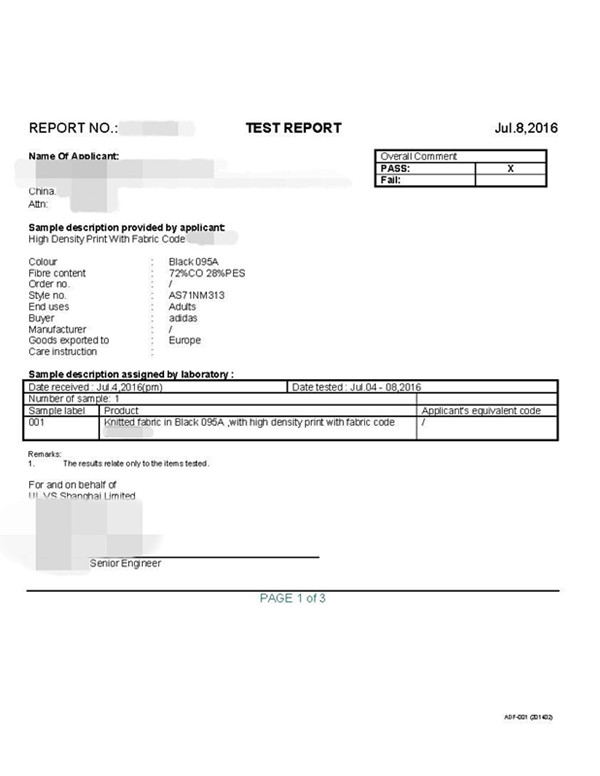

Sample report 样本报告：

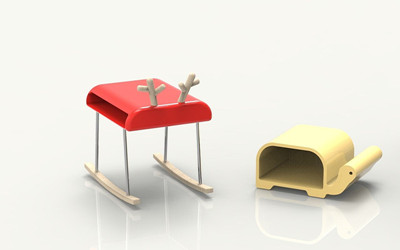

Photo for reference 涉及图片:
