ISO 4589-3返回 Back
| Test item 测试名称： | |
| Plastics -- Determination of burning behaviour by oxygen index -- Part 3: Elevated-temperature test | |
| 塑料－燃烧行为的氧指数测定 第3部分：高温试验 | |
| Test info 测试内容： | |
| Test Clause | Requirement |
| conditioning | conditioned for at least 88 h at 23 ± 2 °C and 50 ± 5 % relative humidity immediately prior to use. |
| Sample Required: | |
| For moulding materials(I) | 80~150x10x4(mm), 22pcs |
| For celluar materials(II) | 80~150x10x10(mm), 22pcs |
| For sheet materials"as received"(III) | 80~150x10x10 max(mm), 22pcs |
| alternative size for self-supporting moulding or sheet materials, for electrical purposes (Ⅳ) | 70~150x6.5x3(mm), 22pcs |
| For flexible film or sheet(Ⅴ) | 140x52x10.5max(mm), 22pcs |
| For thin film"as received";limited to the film that can be rolled by the specified rod(Ⅵ) | 140~200x20x0.02~0.10(mm), 22pcs |
| Turnaround time: normal (9 working days) | |
| 所需时间 :标准(9 个工作天) | |
Sample for reference 参考图片:

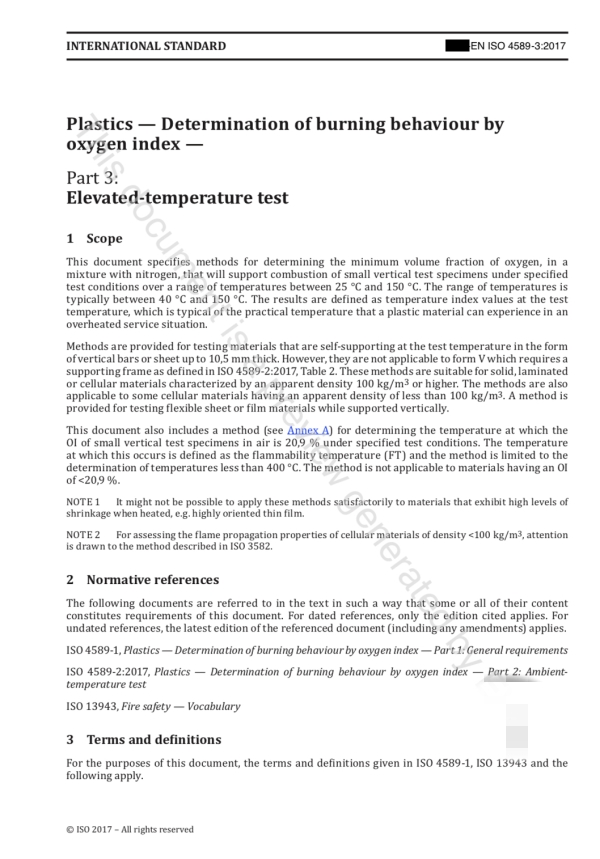

Sample Report 报告样本：
