1. 压力设备指令（97/23/EC）和运输式压力设备指令（2010/35/EU）
Pressure Equipent Directive（97/23/EC）and Transportable Pressure Equipment Directive （2010/35/EU）
2. 压力设备指令97/23/EC(Pressure Equipment Directive,PED)于2002年5月29日起强制实施。
运输式压力设备指令2010/35/EU(Transportable Pressure Equipment Directive,TPED)于2010年06月16日发布并取代原TPED指令1999/36/EC及76/767/EEC,84/525/EEC,84/526/EEC,84/527/EEC。新的TPED指令2010/35/EU必须于2011年06月30日起强制实施。运输式压力设备必须符合TPED指令要求，并取得丌标志。
Pressure Equipent Directive 97/23/EC (PED) have to be mandatorily implemented on May 29,2002.
Transportable Pressure Equipment Directive 2010/35/EU (TPED) issued on June 16,2010,and repealed Council Directives 76/767/EEC, 84/525/EEC,84/526/EEC,84/527/EEC and 1999/36/EC. The new TPED 2010/35/EU has to be mandatorily implemented on June 30,2011. The transportable pressure equipment have to comply with all the requirements of TPED and have 丌 marking.
3. 申请流程 Apply flow
| 设计（Design) | 制造（Manufacture) | |||||||||||||
| I类 Category I | 模式A 内部生产控制 Module A Internal production control | |||||||||||||
| 模式A1 内部制造检验+最终评定监督 Module A1 Internal manufacturing checks+final assessment and supervision | ||||||||||||||
| II类 Category II | 模式D1 生产质量保证 Module D1 Product quality assurance | |||||||||||||
| 模式 E1 产品质量保证 Module E1 Product quality assurance | ||||||||||||||
|
Pressure Equipment 压力设备 |
CE | |||||||||||||
| 模式B （EC型式审查） Module B （EC type examination) | 模式C1 （型式符合） Module C1 (type conformity) | |||||||||||||
| 模式B （EC型式审查） Module B （EC type examination) | 模式E (产品质量保证) Module E (Product quality assurance) | |||||||||||||
| III类 Category III | ||||||||||||||
| 模式B1（EC设计审查） Module B1 （EC design examination) | 模式F (产品验证) Module F (product verification) | |||||||||||||
| 模式B1（EC设计审查） Module B1 （EC design examination) | 模式D (生产质量保证) Module D (Production quality assurance) | |||||||||||||
| 模式H （全面质量保证） Module H (Full quality assurance) | ||||||||||||||
| 模式B （EC型式审查） Module B （EC type examination) | 模式D (生产质量保证) Module D (Production quality assurance) | |||||||||||||
| 模式B （EC型式审查） Module B （EC type examination) | 模式F (产品验证) Module F (product verification) | |||||||||||||
| IV类 Category IV | ||||||||||||||
| 模式H1 全面质量管理+EC设计审查+最终评定监督 Module H1 Full quality assurance+EC design examination+final assessment and supervision | ||||||||||||||
| 模式G EC单台验证 Module G EC unit verification | ||||||||||||||
| , | ||||||||||||||
4. 压力设备指令适用范围 Applicable Scope of the Pressure Equipment Directive
最大允许压力大于0.5bar的压力设备和装置均属于PED指令的范围，它包括压力容器、管道系统、压力附件、安全附件和压力设备等装置。TPED指令范围包括所有移动压力容器及其配件、槽罐、蓄电池车、气体储气罐及其配件等。
The PED directive applies to all pressure equipment subject to a maximum allowable pressure PS exceeding 0.5 bar, which includes pressure vessels, piping, pressure accessories, safety accessories and assemblies. The TPED applies to all pressure receptacles and their accessories , tanks, battery vehicles/wagons, multiple-element gas containers, their accessories, etc.
5. 压力设备分类Classification of Pressure Equipment
压力设备根据其相关参数可以分为Ⅰ，Ⅱ，Ⅲ，Ⅳ类。其分类由以下参数决定
l 最大允许压力
l 介质种类（组1和组2）
l 容积或名义直径（DN）
PED指令附录二中，列出九个适用各类压力设备的分类表，制造商可以根据压力设备的类型和介质种类确认产品分类。
In accordance with its relevant parameters, the pressure equipment shall be divided into Category Ⅰ，Ⅱ，Ⅲ and Ⅳ. The classification is based on the following parameters.
l Maximum allowable pressure
l The Group of Fluids (Group 1 and Group 2)
l Volume or nominal diameter (DN)
Annex Ⅱof PED indicates nine assessment tables to determine the conformity assessment category of different pressure equipment. The manufacturers could classify their pressure equipment on the basis of the product’s type and the group of fluids.

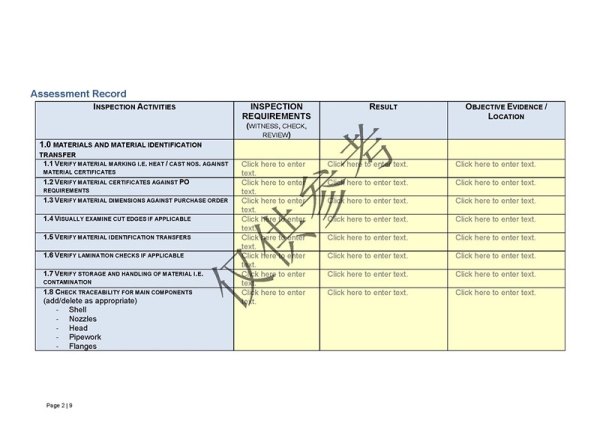

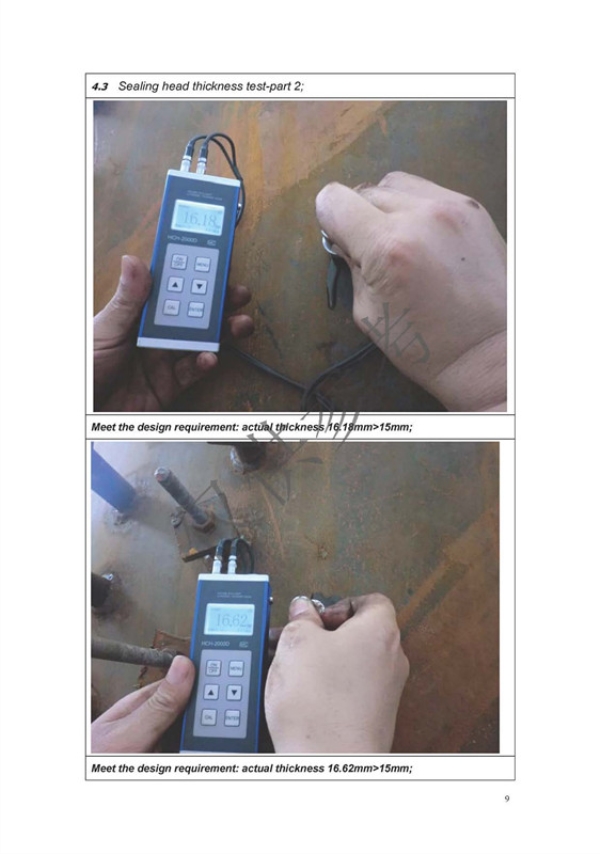

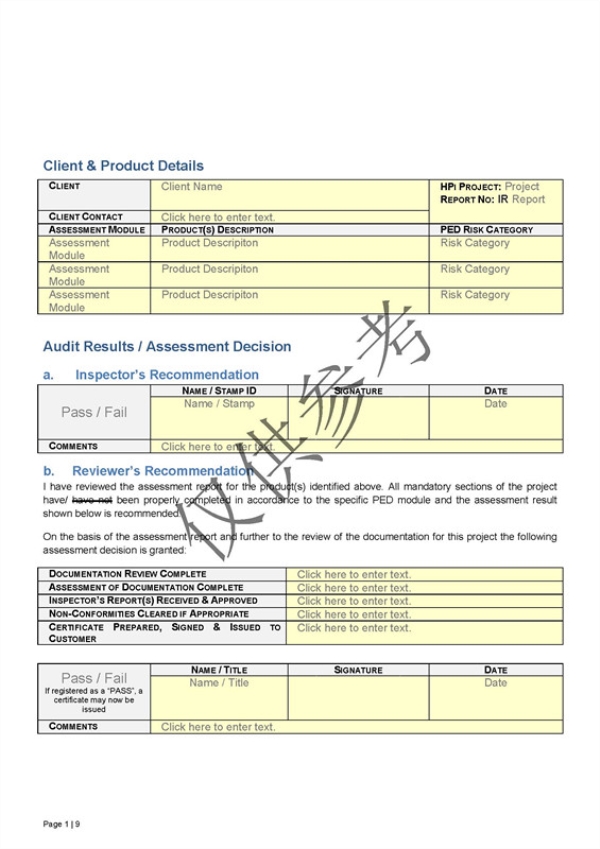

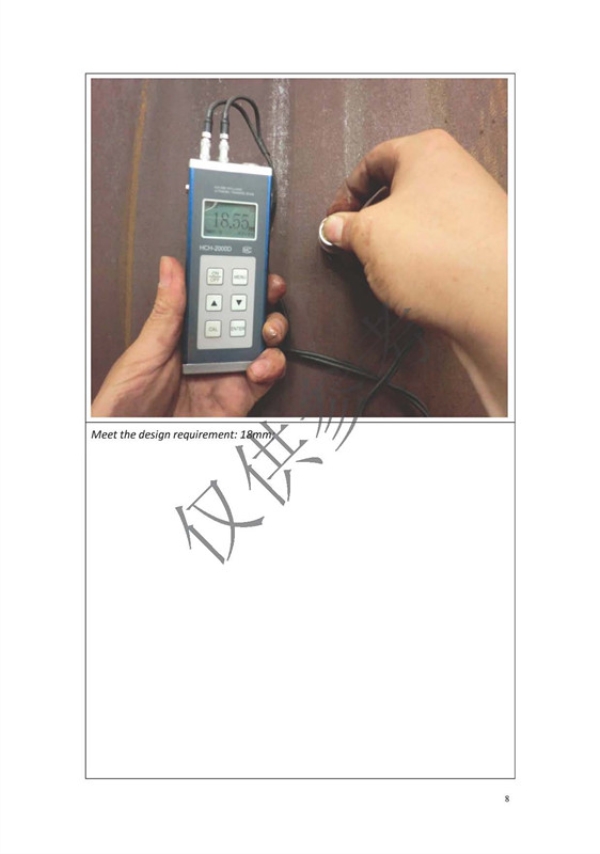

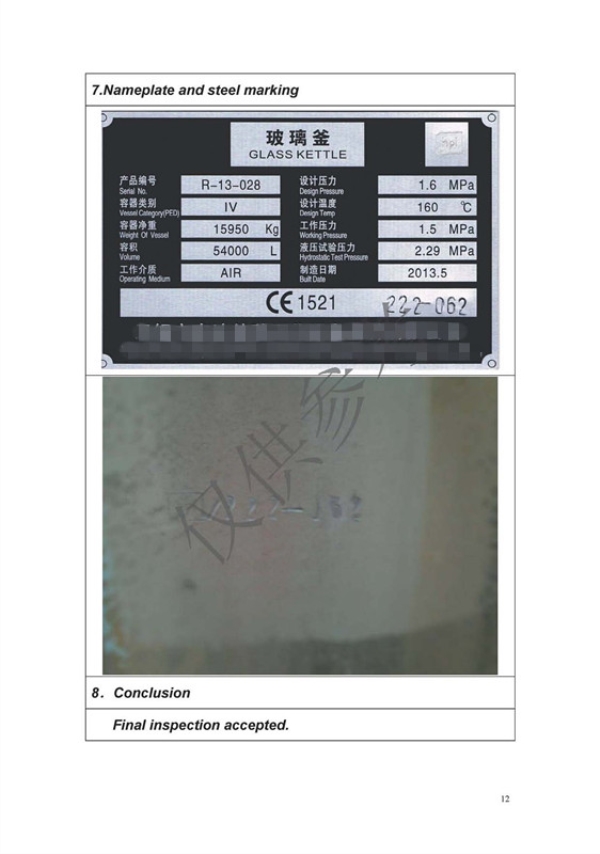

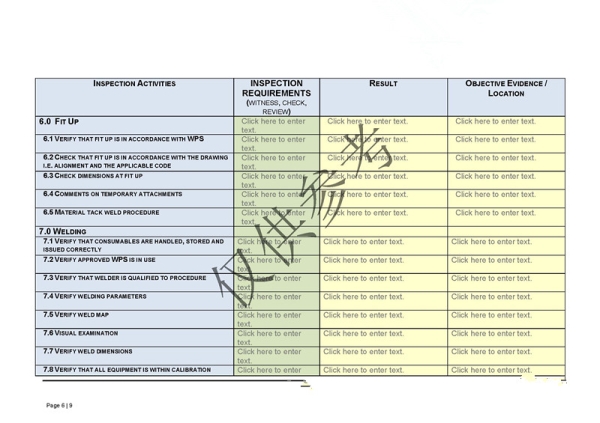

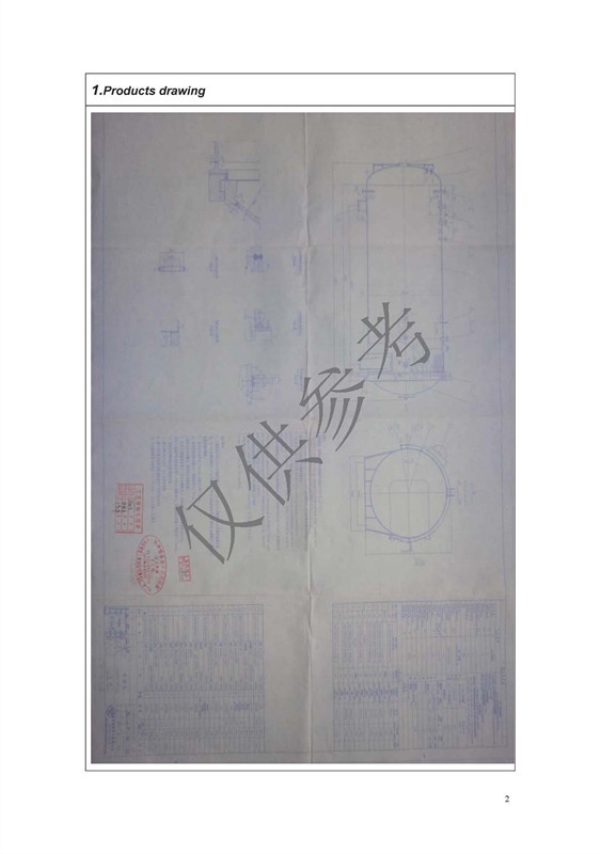

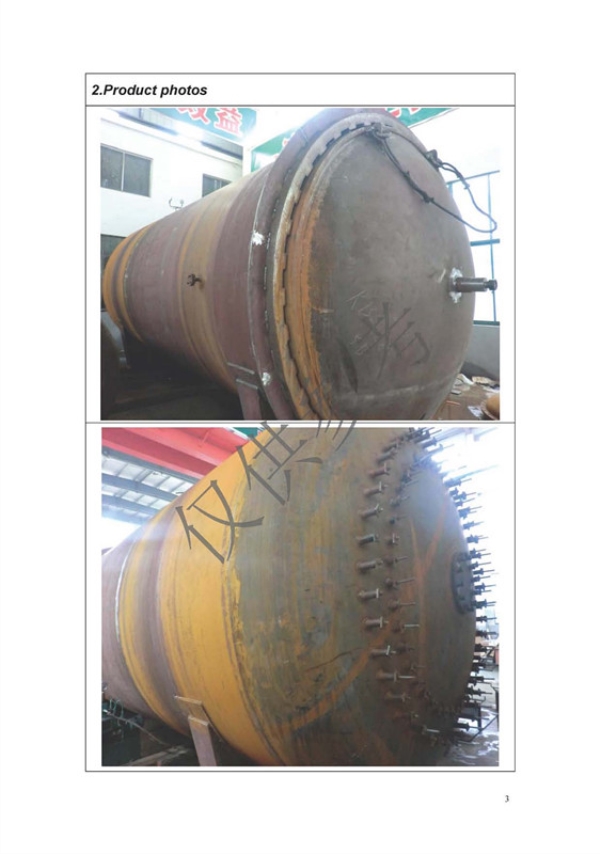

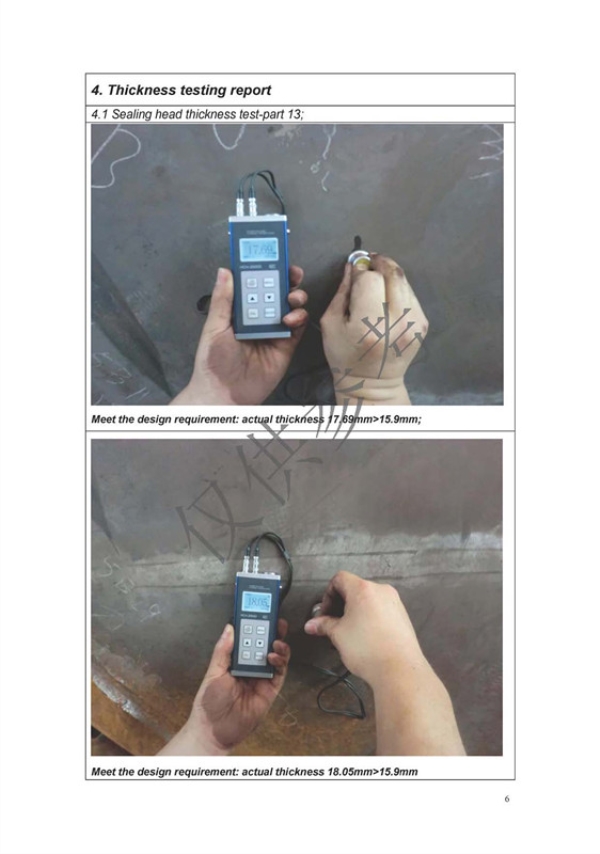

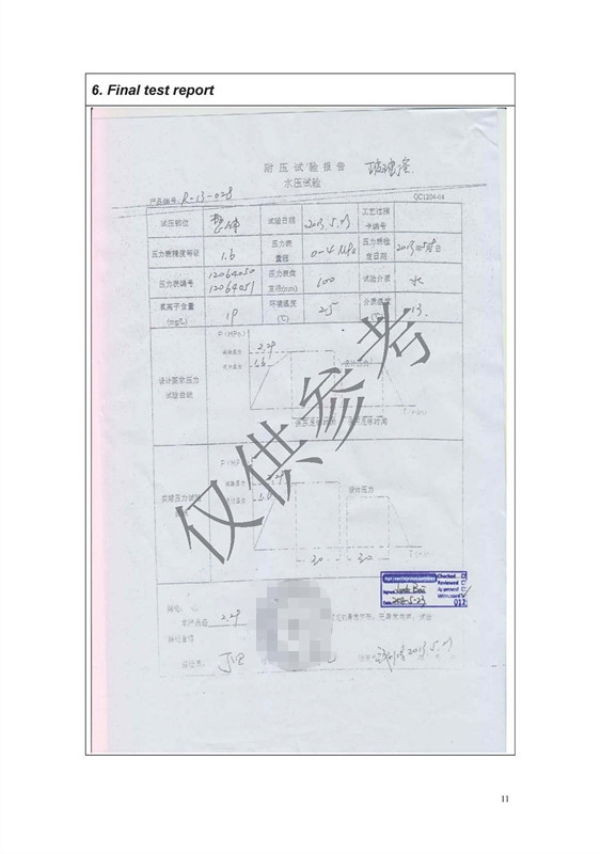

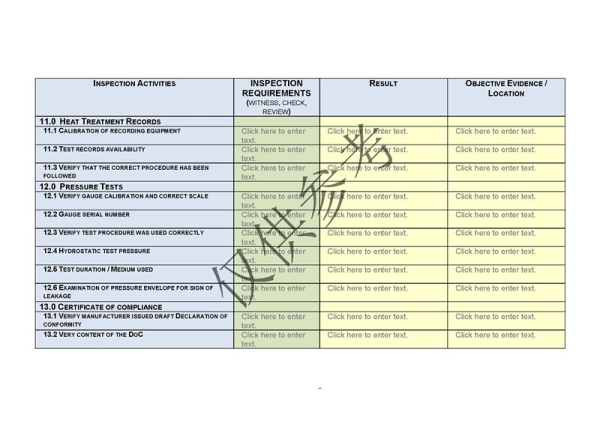

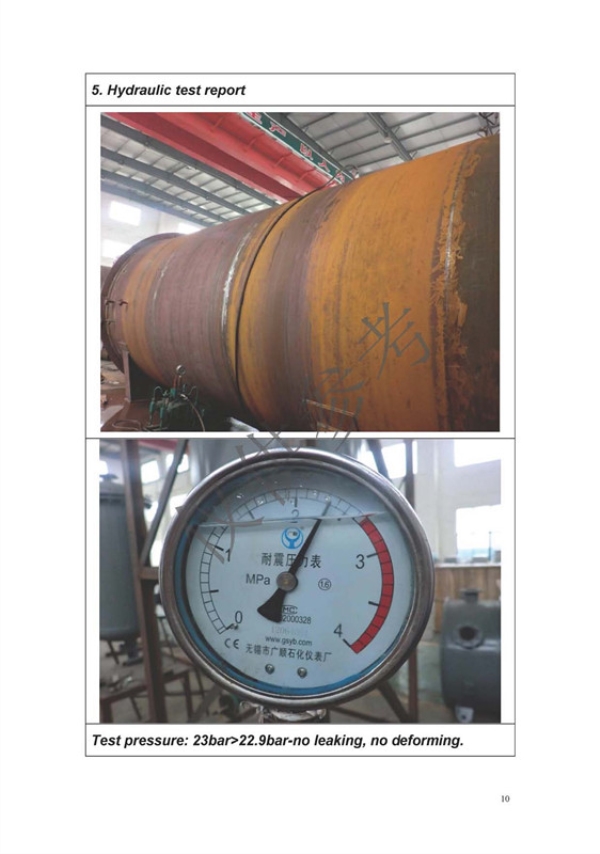

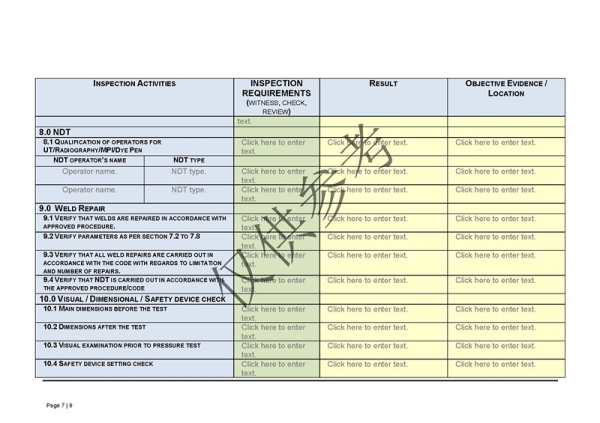

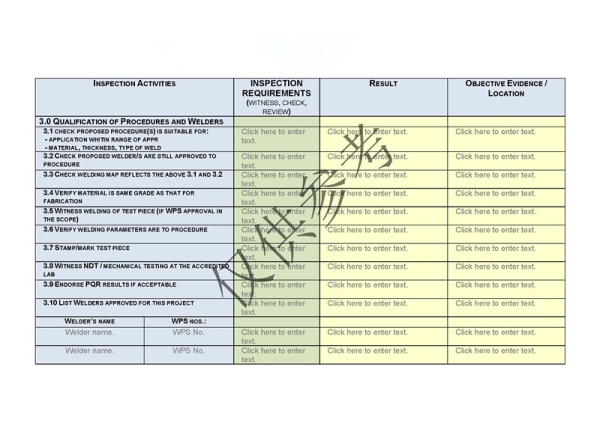

Sample for reference 参考图片:

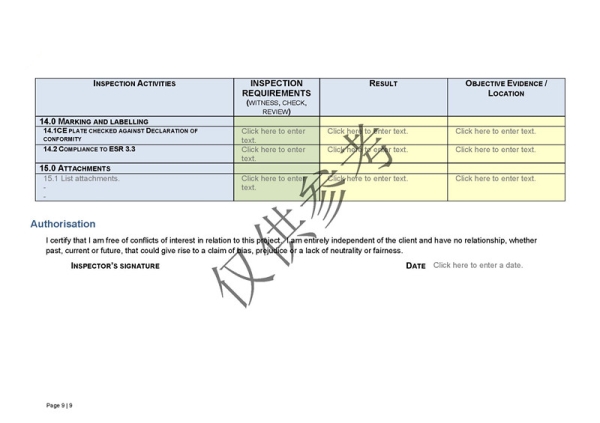

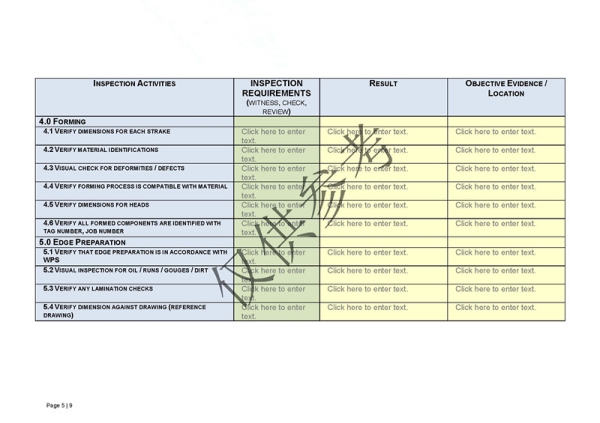

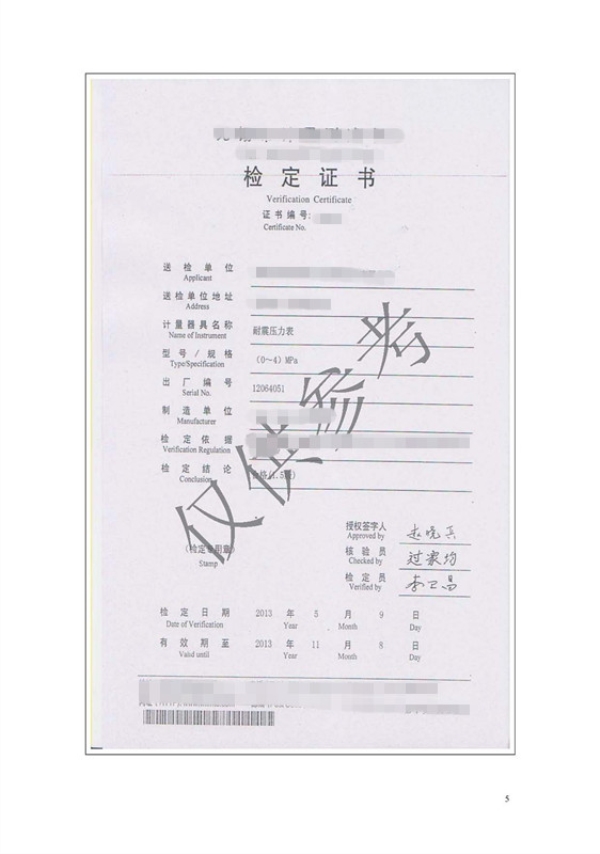

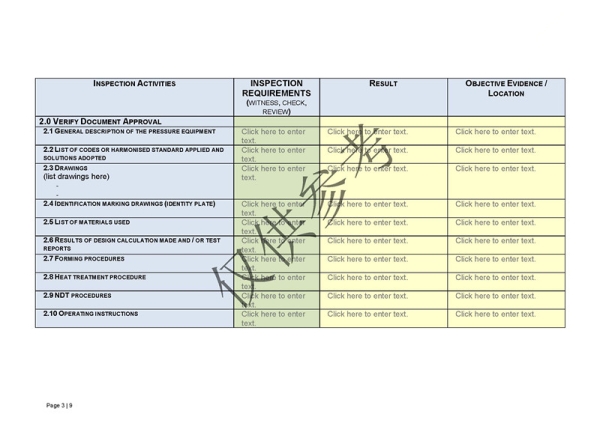

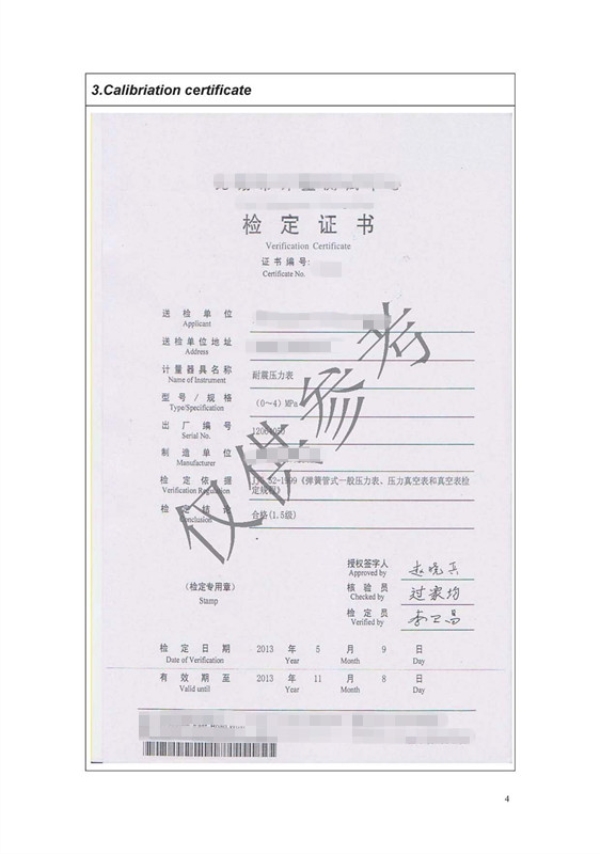

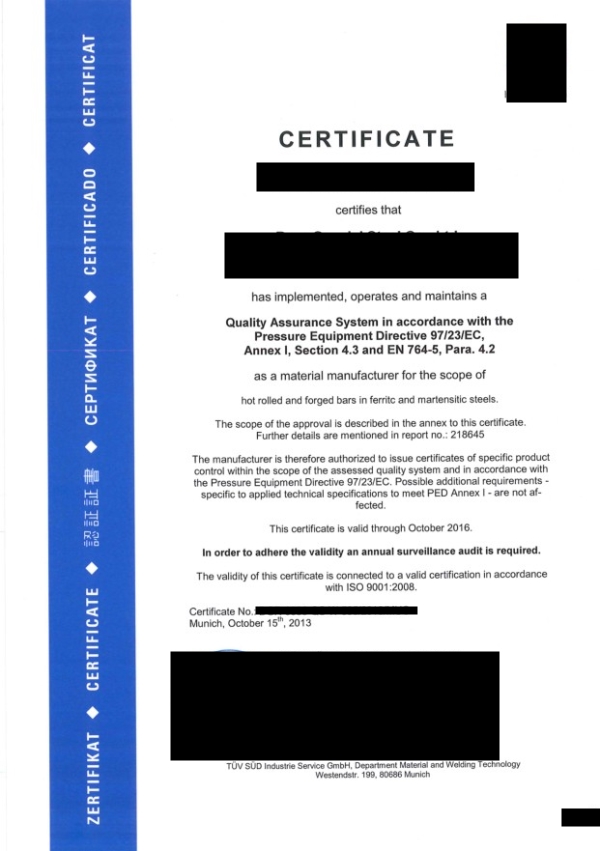

Sample Certificate 证书样本:
