SEFA 8 M返回 Back
Test item 测试名称: Recommended Practices for Laboratory Grade Metal Casework 实验室金属工作台
Test info 测试内容:
| Clause | Test Requirement | |
| 4 | Base cabinets (if applicable) | |
| 4.1 | Description of test cabinet | |
| 4.2 | Cabinet load test | |
| 4.3 | Cabinet concentrated load test | |
| 4.4 | Cabinet torsion | |
| 4.5 | Cabinet submersion test | |
| 5 | Doors (if applicable) | |
| 5.1 | Door hinge test | |
| 5.2 | Door impact test | |
| 5.3 | Door cycle test | |
| 6 | Drawers (if applicable) | |
| 6.1 | Drawer static test | |
| 6.2 | Drawer and door pull test | |
| 6.3 | Drawer impact test | |
| 6.4 | Drawer internal rolling impact | |
| 6.5 | Drawer cycle test | |
| 7 | Wall mounted cabinets | |
| 7.1 | Description of test cabinet | |
| 7.2 | Load test | |
| 8 | Tables | |
| 8.1 | Description of test unit | |
| 8.2 | Table static load | |
| 8.3 | Table racking | |
| 9 | Shelving (if applicable) | |
| 9.1 | Shelf load test | |
| 10 | Cabinet surface finish tests | |
| 10.1 | Chemical spot test* | |
| 10.2 | Hot water test | |
| 10.3 | Finish impact test | |
| 10.4 | Paint adhesion steel | |
| 10.5 | Paint hardness on steel | |
Sample size 送样规格：
| Sample required: 2 completed sample, 4 piece about 350mm* 600mm plate for chemical test | ||
| 样品要求: 2个完整样品, 4片约350*600的样品(或相当面积的样品)用于化学测试 |
| Sample required: 3pcs, size: 2”×2”(50.8mm×50.8mm) 18 gauge CRS with between 2 and 4 of the manufactures standard paint | ||
| Sample required: 1pcs, size 14”×24”(355.6mm×609.6mm) 18 gauge CRS with between 2 and 4 of the manufactures standard paint | ||
| 样品要求: 50.8mm×50.8mm..18号冷扎钢，表面涂2-4层工厂测试涂层，共3块。 | ||
| 样品要求: 355.6mm×609.6mm.18号冷扎钢，表面涂2-4层工厂测试涂层，共1块。 |
Lead time 测试周期：
常规 regular service 15 working days
Others 其他信息:
| Remark: *We only can test 43 of the total 49 chemical reagents in standard. | ||
| 备注:*我们暂时只能测试标准中要求的49种试剂中的43种. |
| 产品类别PRODUCT | 相关标准STANDARD | |
|
通风柜/操作柜 Fume hood /Operation cabinet |
ANSI/ASHRAE 110 EN 14175 系列标准 JB/T 6412 |
JG/T 222 JG/T 385 UL1805 |
|
底柜/吊柜/实验桌 Bottom cabinet/Wall cabinet/Laboratory table |
SEFA 8 | |
|
教学实验台/实验桌 Teaching experiment table/Experiment table |
EN 13150 GB/T 21747 |
|
|
操作台/天平台/试剂架 Console/Platform for scales/Reagent rack |
GB 24820 SEFA 10 |
|
|
试剂柜/防爆柜 Chemical storage cabinet/Explosion proof cabinet |
SEFA 11 EN 14727 |
EN 14470-1 NFPA |
|
存储柜/文件柜/活动柜 Storage cabinet/Filing cabinet/Movable cabinet |
EN 14727 EN 14073-2/-3 & EN 1407-4 ANSI/BIFMA X5.9 |
GB 24820 GB/T 3324 GB/T 3325 |
|
家具座椅/沙发/桌子 Chair/Sofa/Table |
ANSI/BIFMA X5.1 ANSI/BIFMA X5.4 ANSI/BIFMA X5.5 |
QB/T 2280 QB/T 1952.1 |
|
台板/台面 Platen |
SEFA 3 GB 24820 |
|
|
水槽/龙头/阀门 Sink/Tap/Valve |
SEFA 7 | |
|
风管/管件/风量阀/装饰板 Air duct/Pipe fitting/Air volume valve/Decorative panel |
EN 1047-1 ASTM E 84 |
UL 94 GB 8624 |
|
活性炭 Activated carbon |
GB/T 7702.1~7702.22 GB/T 12496.1~12496.22 |
|

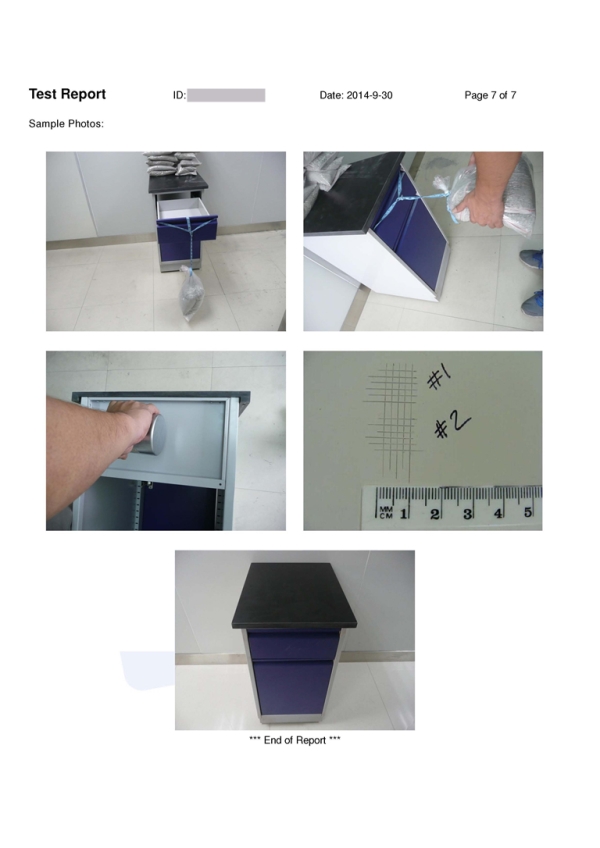

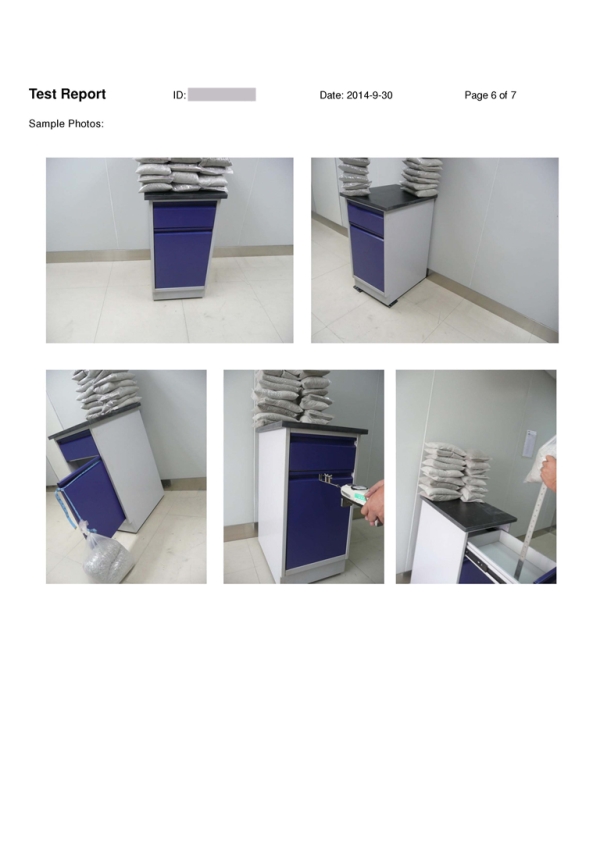

Sample for reference 参考图片:

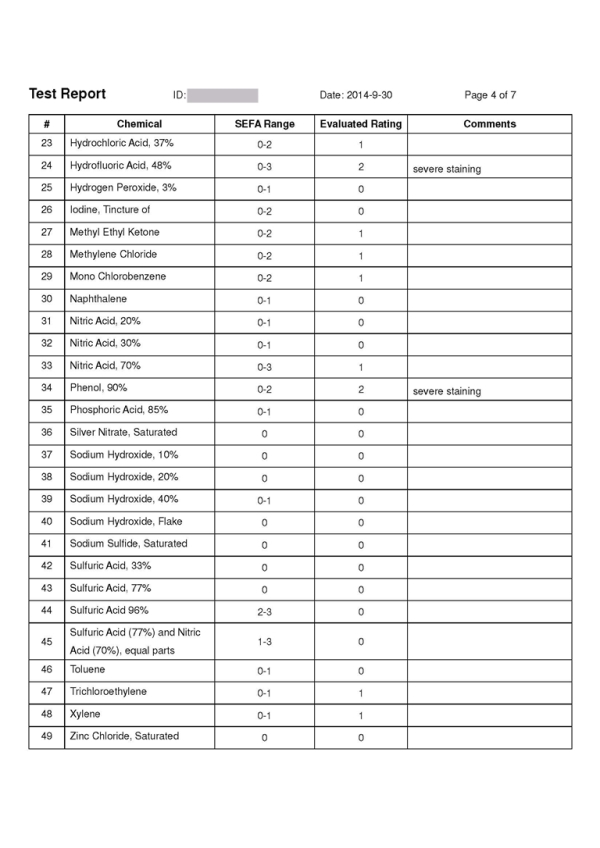

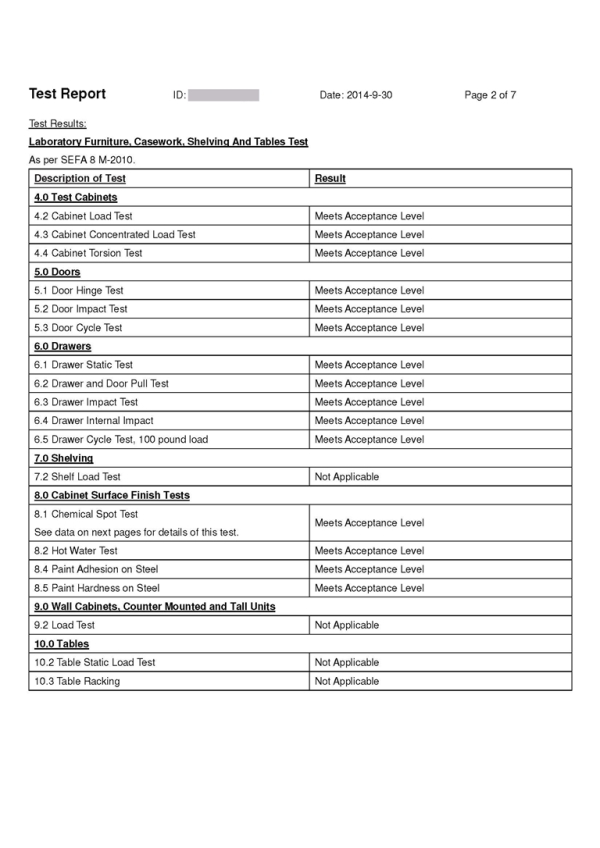

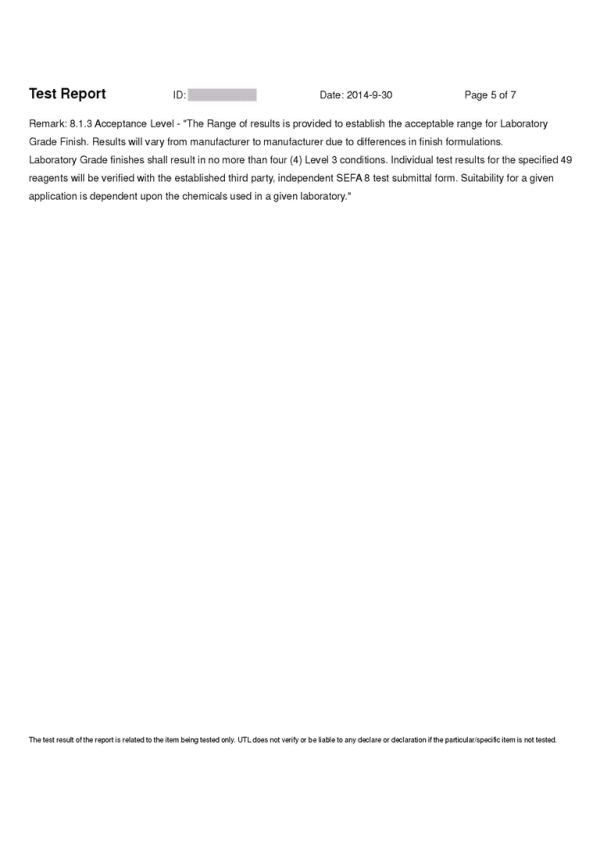

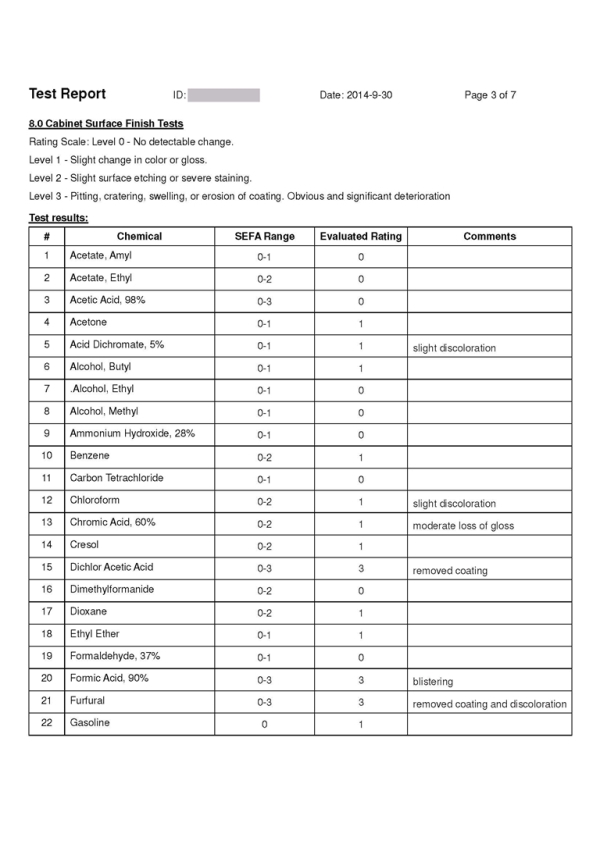

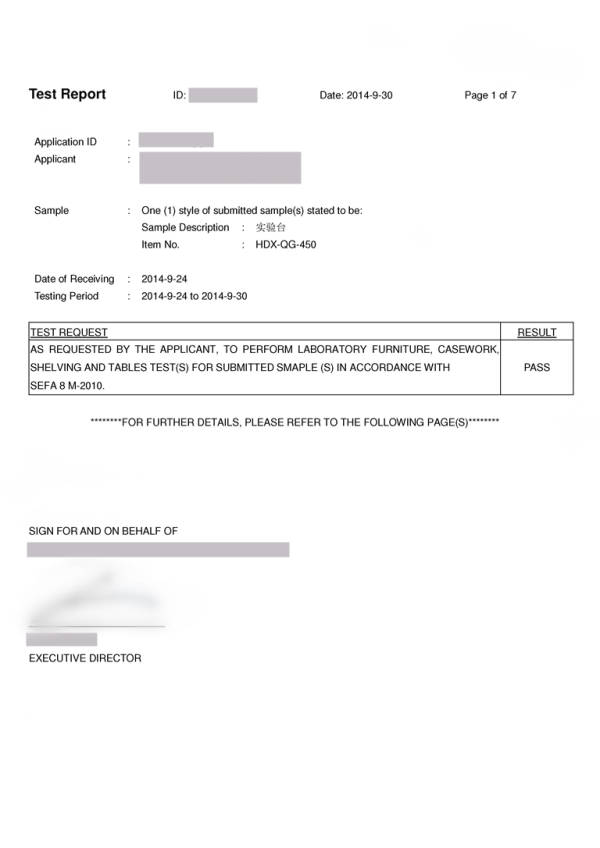

Sample Report 报告样本：
