Shower Enclosure返回 Back
Test item 测试名称: Shower enclosure 淋浴围栏
Test info 测试内容：
| Sample | Standard | Test Method | Lead Time | Sample size | Remark |
|
Shower enclosure 淋浴围栏 |
UPC |
IGC154 （IGC154这本标准既适用于不带shower tray的shower enclosure，也适用于带shower tray的shower enclosure.） |
25 WD (每增加一个测试型号，增加2个工作日) |
2 pcs finished product plastic sheet with protect film: 300mm x 300mm x 15pcs 135mm x 65mm x 3pcs 200mm x 200mm x 2pcs 95mm x 95mm x 3pcs 150mm x 150mm x 3pcs |
Model with same construction, material and component with different size can grouping, the largest and smallest size was choose as testing model |
| cUPC |
IGC154, CSA B45, CSA B125 （IGC154, CSA B45这两本标准既适用于不带shower tray的shower enclosure，也适用于带shower tray的shower enclosure.） |
25 WD (每增加一个测试型号，增加2个工作日) | 每种厚度玻璃送6片，size: (863x1960)±3mm | ||
| cWH | CSA B45, CSA B125 | 25 WD (每增加一个测试型号，增加2个工作日) |
1 pcs finished product plastic sheet with protect film: 300mm x 300mm 15pcs 135mm x 65mm 3pcs 200mm x 200mm 2pcs 95mm x 95mm 3pcs 150mm x 150mm 3pcs. |
||
| cWHus | IGC154, CSA B45, CSA B125 | 20 WD (每增加一个测试型号，增加2个工作日) | 每种厚度玻璃送4片，SIZE: (863x1960)±3mm | ||
| CE | EN 14428 | 20 WD (每增加一个测试型号，增加2个工作日) |
1 pcs/model, 玻璃 6 片200mmx200mm 或300mmX300mm. 另若淋浴房上有用到亚克力材料的，还得提供4块865mm x 1930mm 跟成品生产工艺相同的亚克力板做测试 EN12150 钢化玻璃送样要求如下： 1100mm x 360mm, 15pcs 1938mmX874mm 4pcs |
Model with same construction, material and component with different size can grouping, the largest size was choose as testing model | |
| Water Mark | ATS 5200.050 | 10WD | Samples: 1pcs | ||
| SONCAP/ KENYA | EN 14428 | 10 WD (每增加一个测试型号，增加2个工作日) | 1 pcs/model, 玻璃 6 片200mmx200mm 或300mmX300mm. 另若淋浴房上有用到亚克力材料的，还得提供一块865mm x 1930mm 的亚克力板做测试 |

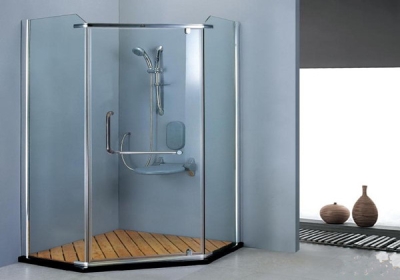

Sample for reference 参考图片:

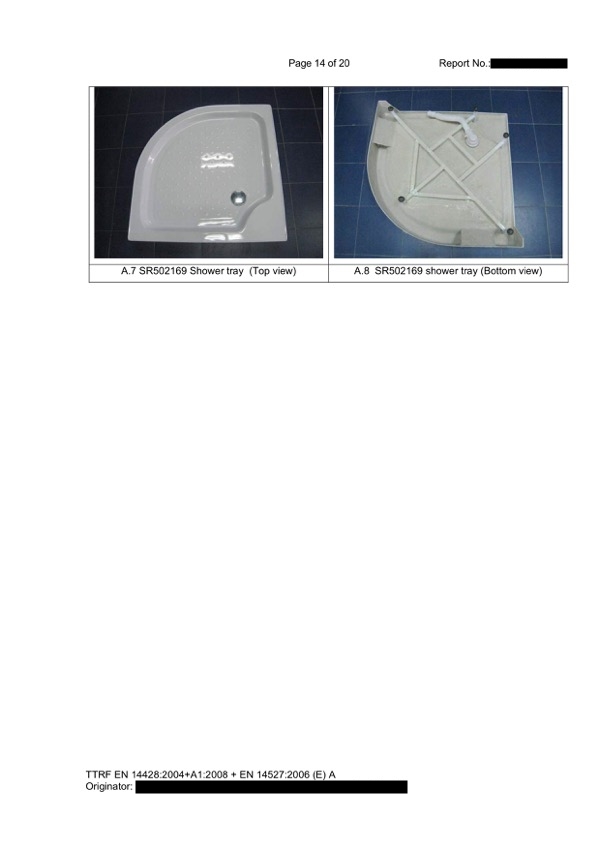

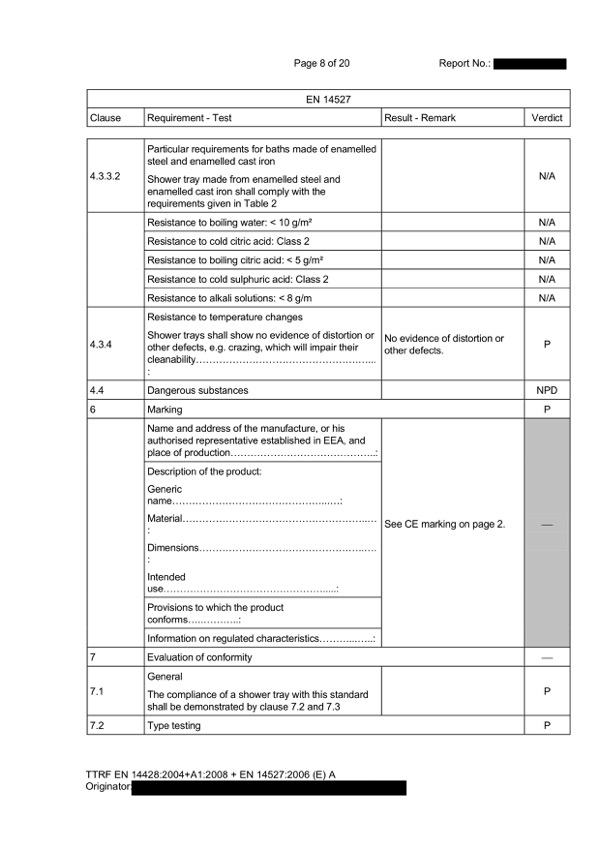

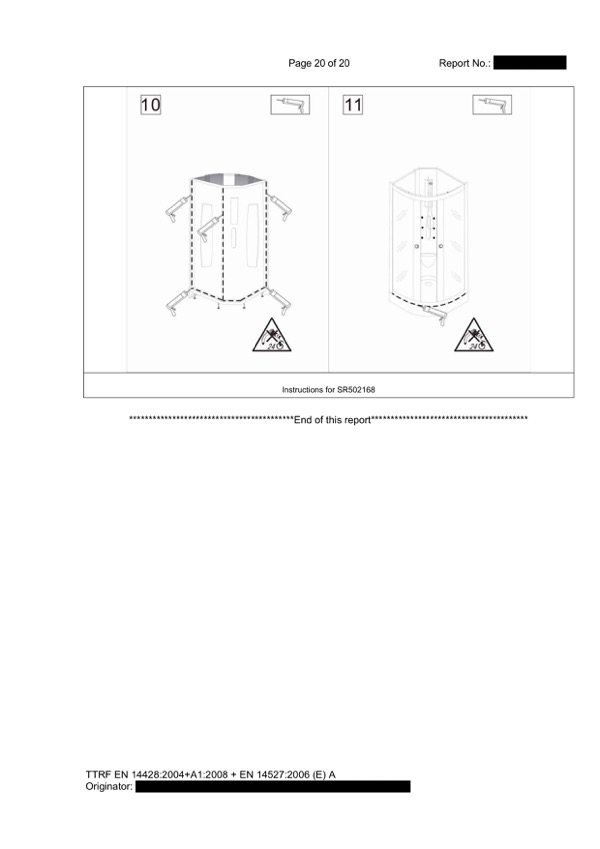

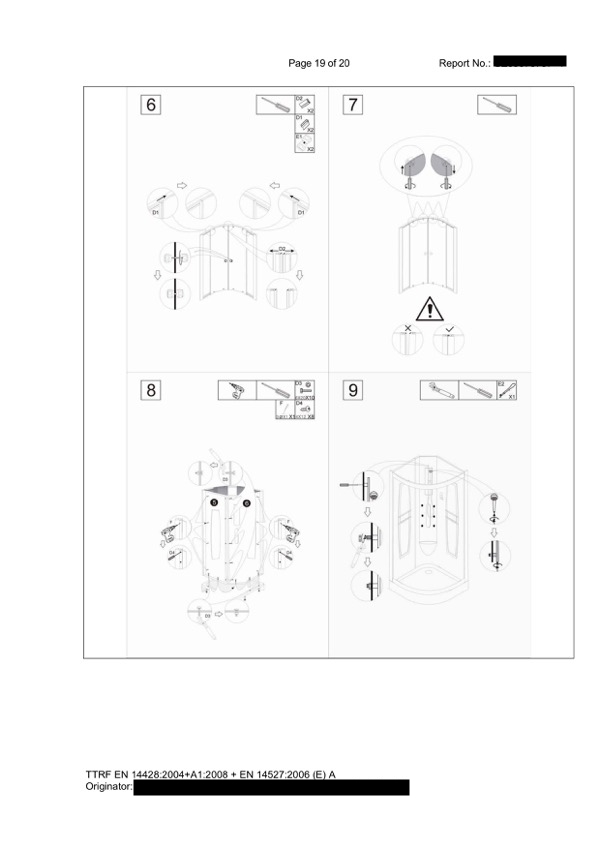

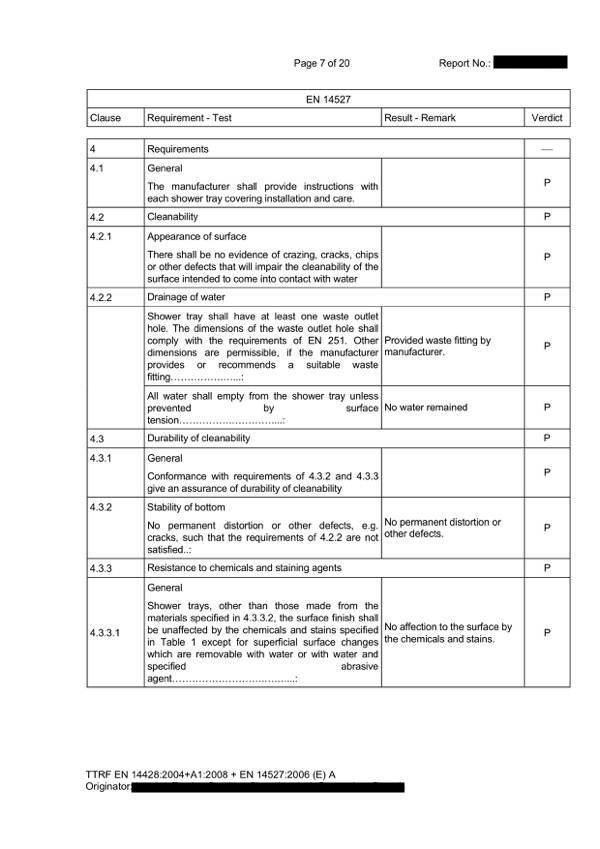

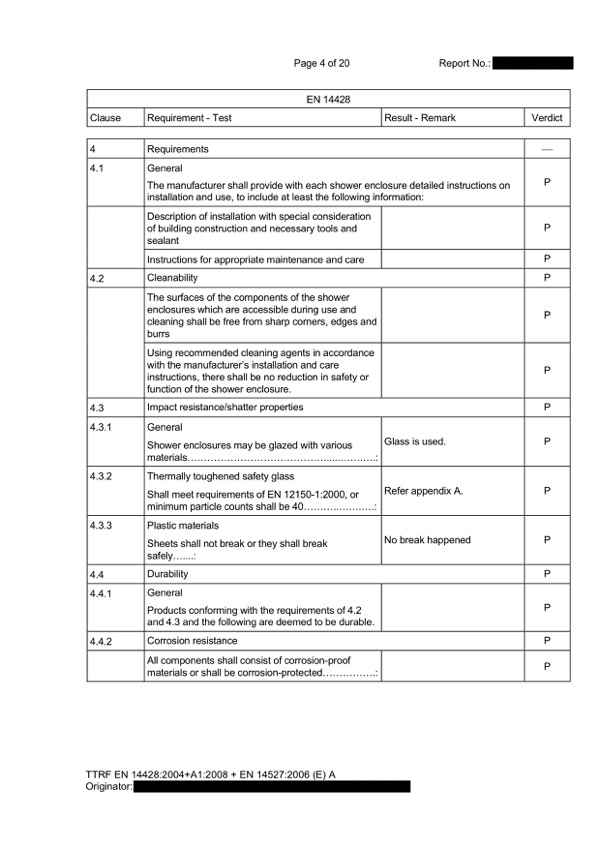

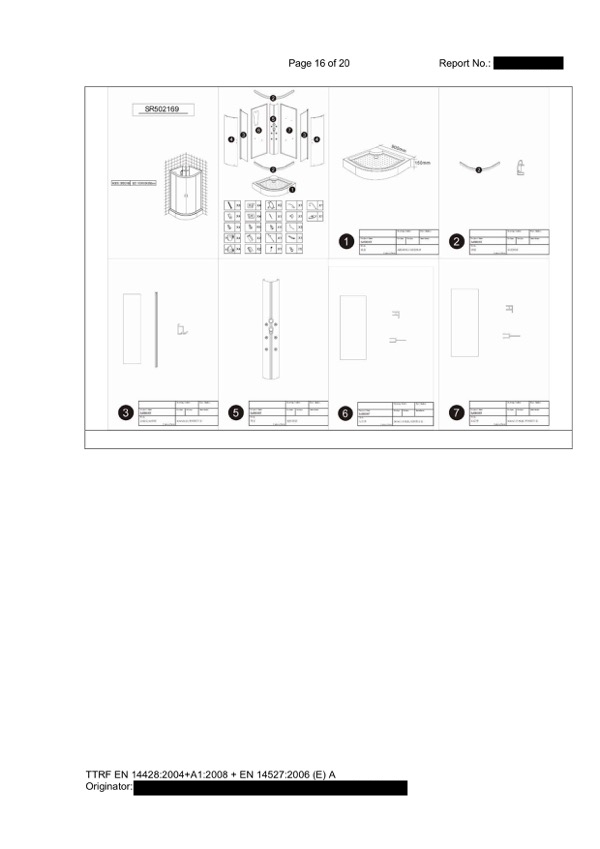

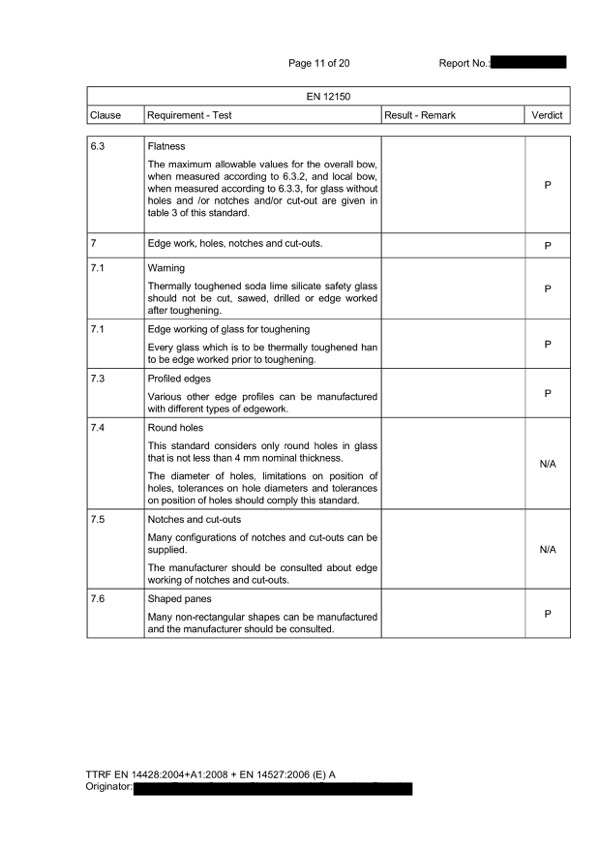

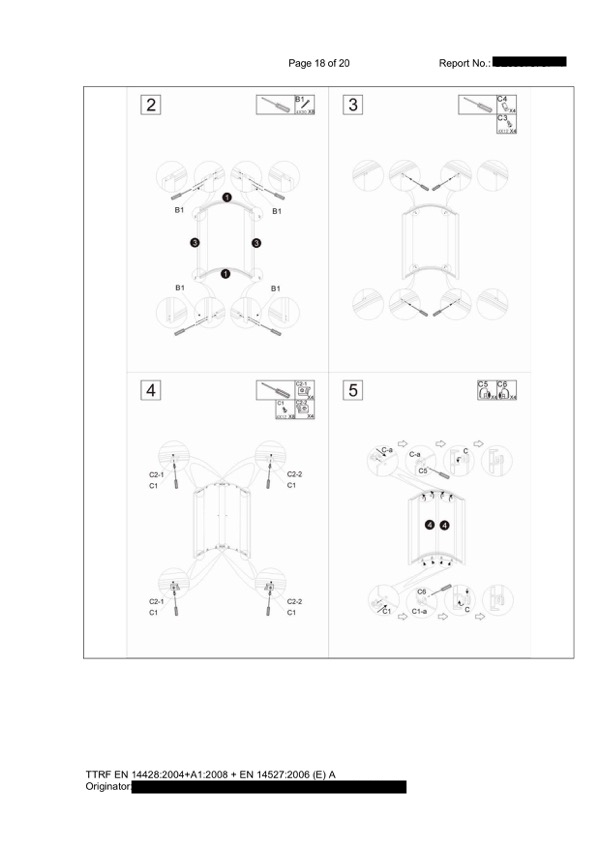

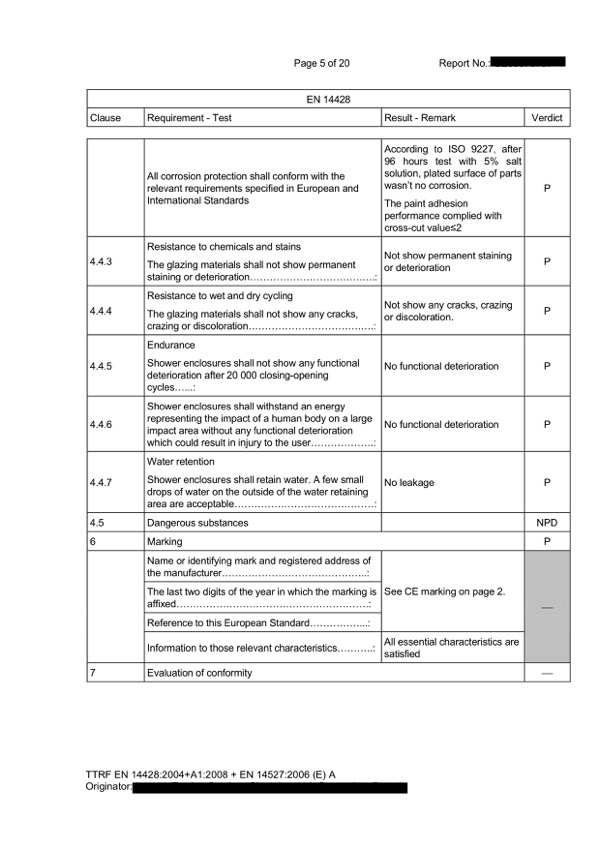

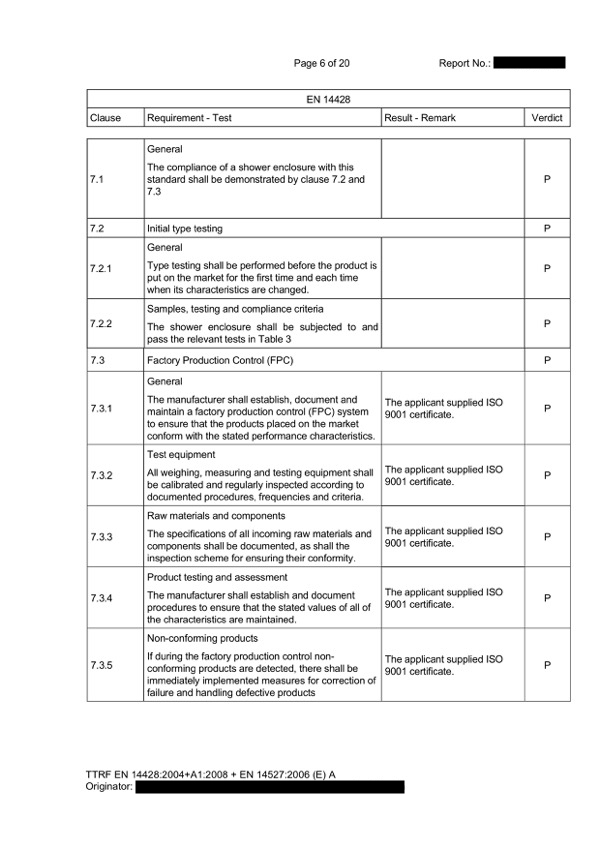

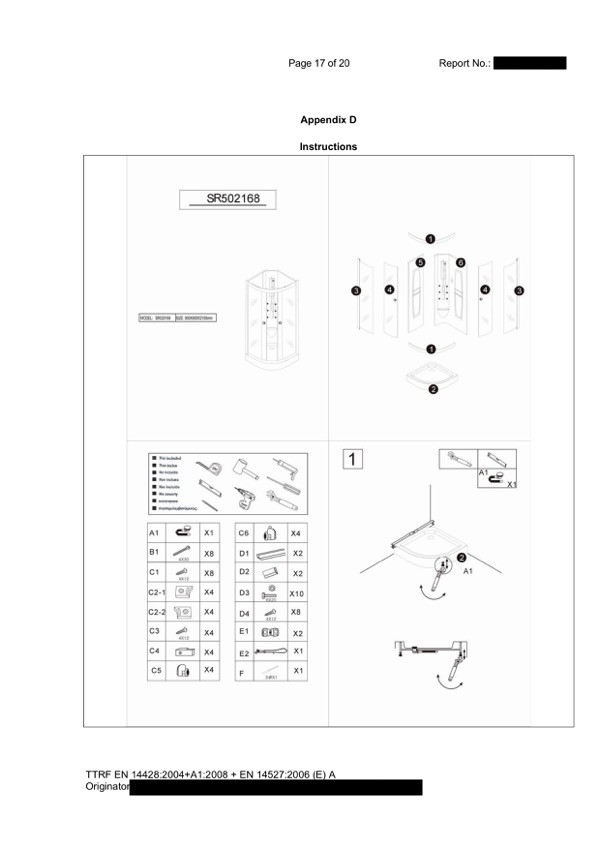

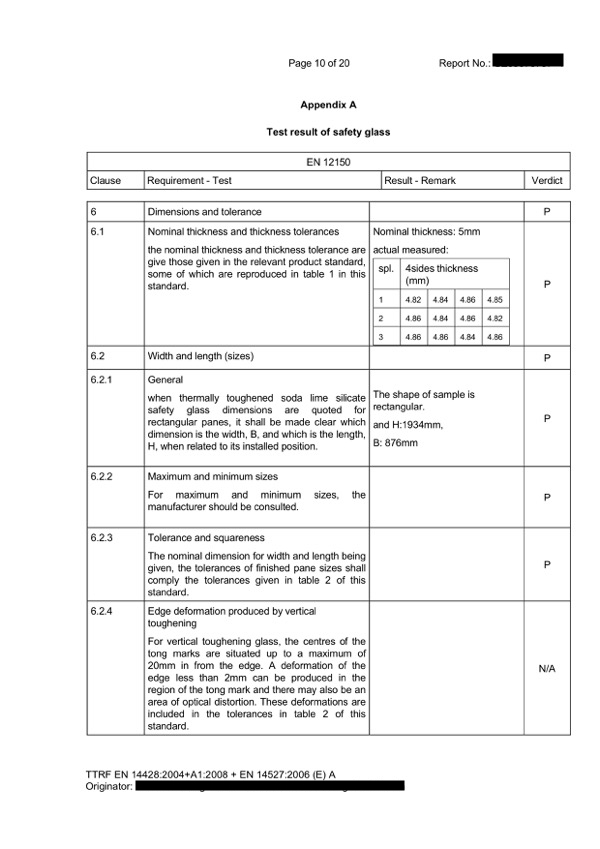

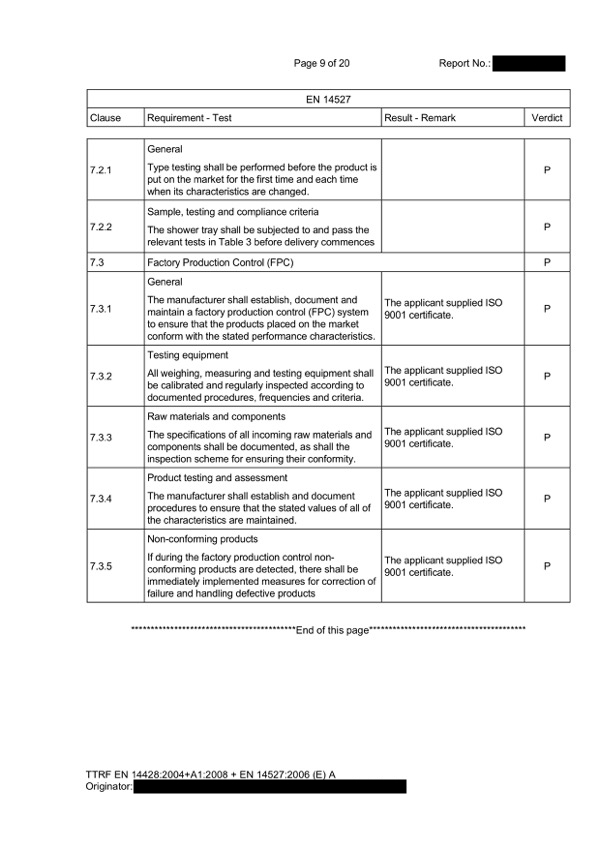

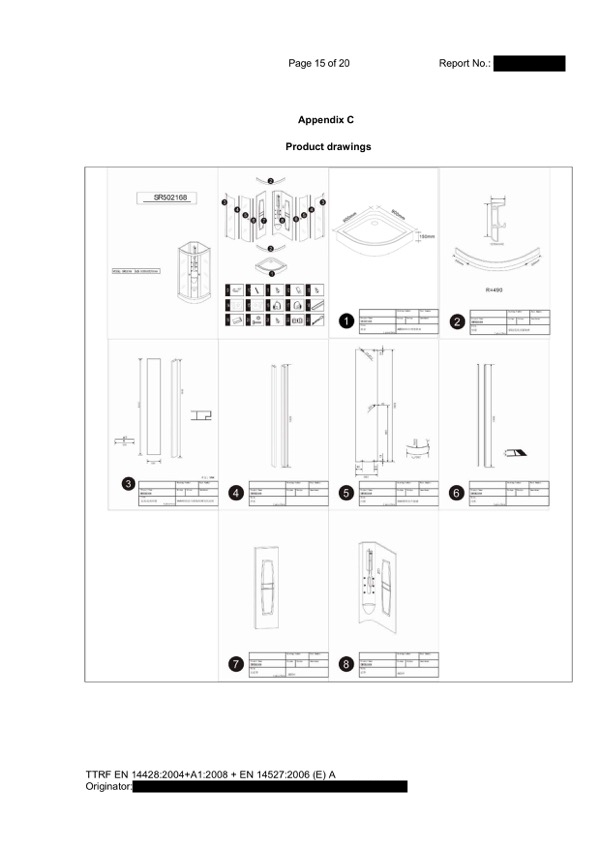

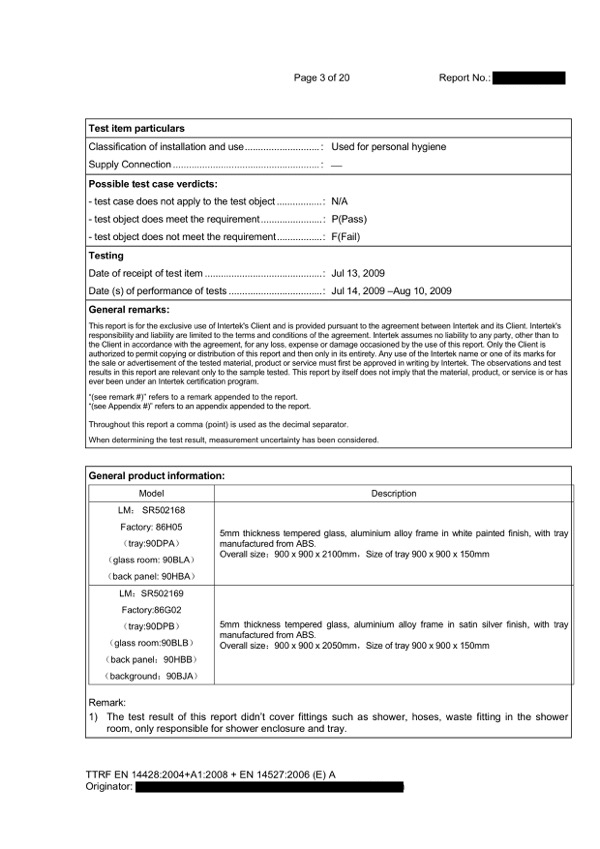

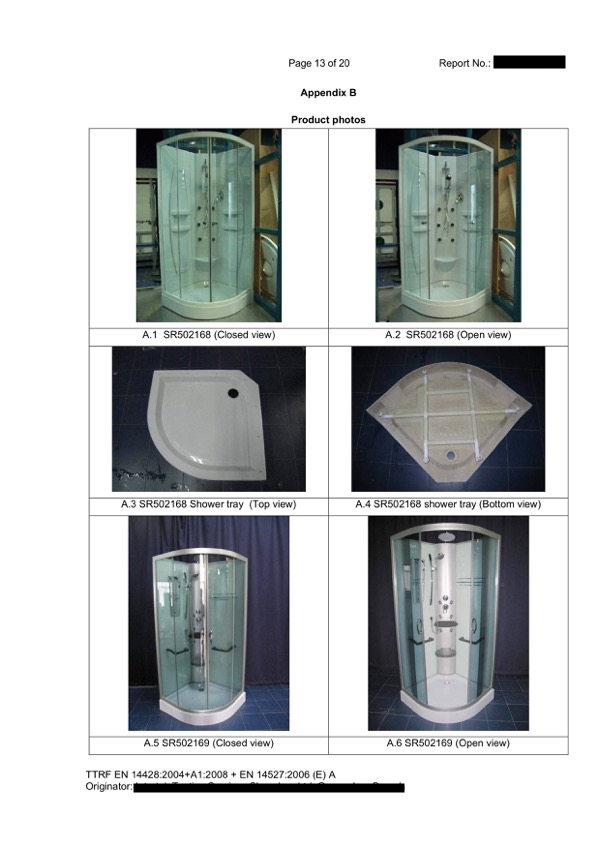

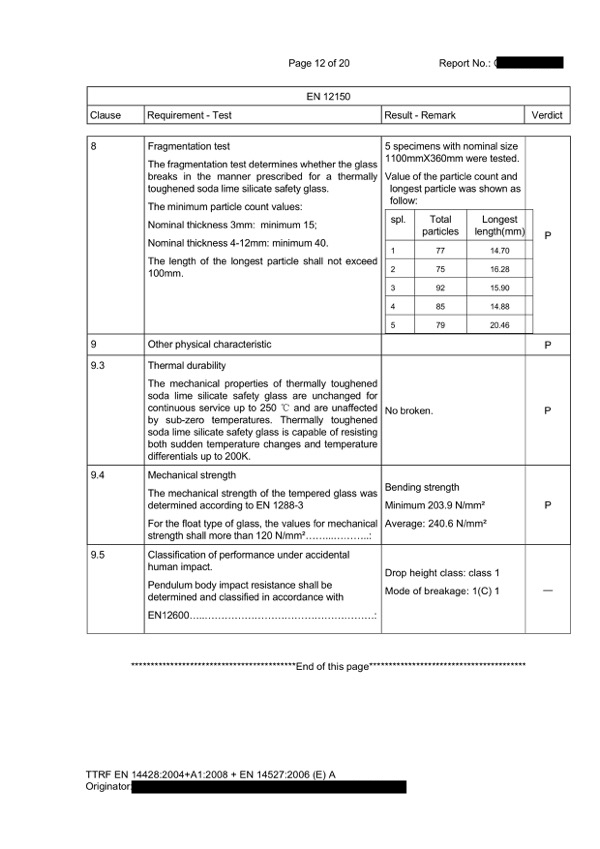

Sample Report 报告样本：
