TB 133 TB 133 声明 TB 133 标签 TB 133 鉴定 TB 133 申请 TB 133 实验 TB 133 认证 TB 133 注册 TB 133 验厂 TB 133 审核 TB 133 报告 TB 133 证书 TB 133 测试 TB 133 检测 TB 133 标识

Test item 测试名称:

Flammability Test for Seating Furniture for Use In Public Buildings 用于公共场所座椅的阻燃测试

Test info 测试内容：

1) In a room test using the room instrumentation: 1) The temperature increase at the ceiling thermocouple shall be less than 200°F. 2) The temperature increase at the 4-foot thermocouple shall be less than 50°F. 3) The opcity shall be less than 75% at the 4-foot smoke opacity monitor. 4) Carbon monoxide concentration in the room for 5 minutes shall less than 1000ppm. 5) The weight loss due to combustion shall be less than 3 pounds in the first 10 minutes of the test.
2) In a room test using oxygen consumption calorimeter: 1) A maximum rate of heat release shall be less 80kw. 2) A total heat release shall be less than 25MJ in the first 10 minutes of the test. 3) the opacity shall be less than 75% at the 4-foot smoke opacity monitor. 4) Carbon monoxide concentration in the room shall be less than 1000ppm for 5 minutes.

TB 133:1991 Flammability Test Procedure for Seating Furniture for Use In Public Buildings 用于公共场所座椅的阻燃测试方法	Furniture calorimeter家具量热计		7	1 set of finished product 一套成品座椅	1、该方法所指的公共居所包括但是不限于下列机构：拘留所，监狱，疗养院, 卫生保健机构, 公众礼堂, 旅馆和宾馆。 2、从2019.01.22开始TB133 已非针对公共场所的强制要求。
	Label		7	请客户在成品上加贴标签后送样	非英文标签，不检查

Lead time 测试周期: 常规 Regular service 7 working days

Sample size 送样规格: 2pieces of finished product, 两件成品

Others 其他信息：

¹Public Occupancies might include, but are not limited to, jails, prisons, nursing care homes, health care facilities, public auditoriums, hotels and motels.
该方法所指的公共居所包括但是不限于下列机构：拘留所，监狱，疗养院, 卫生保健机构, 公众礼堂, 旅馆和宾馆。

²This test procedure is not intended to be used for the evaluation of residential furniture. 该测试方法不适用于家用家具。

³Test Sample: The test sample shall consist of typical seating furniture suitable for use in public occupancies, or a full-scale mock-up of the furniture. When a full-scale furniture mock-up is used, the mock-up shall in all respects reflect the construction of the actual furniture that it is intended to represent.
测试样品应该是使用在公共居所的座椅家具的样本。或者是一个相同尺寸的复制模型。该模型应该能够完全反映所代表的家具。

⁴Test Ignition Source, A) The test ignition source shall be a square gas burner (propane). B) An ignition source of five double sheets of loosely wadded newsprint contained in an ignition box, may be used as a screening test.
A) 方形的气体燃烧头 (丙烷）。B) 装有5张对折的报纸的盒子作为火源可以用来做筛选测试。

Sample for reference 参考图片:

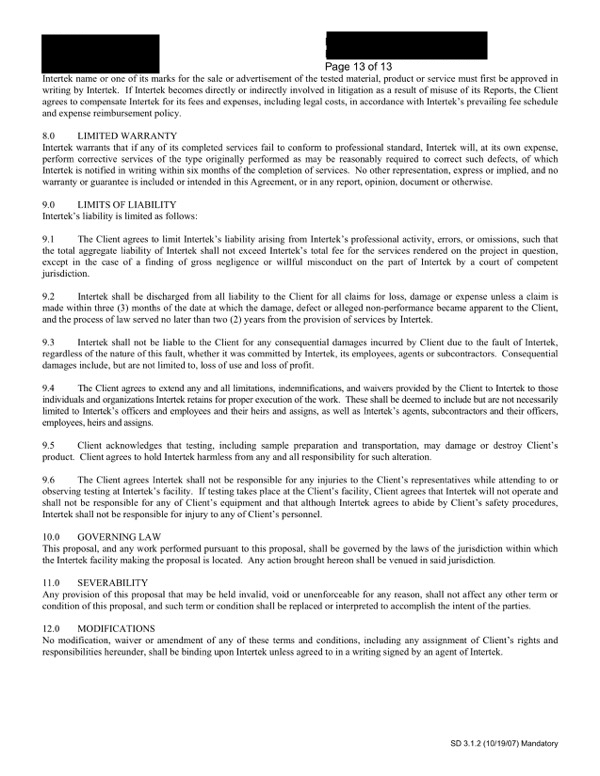

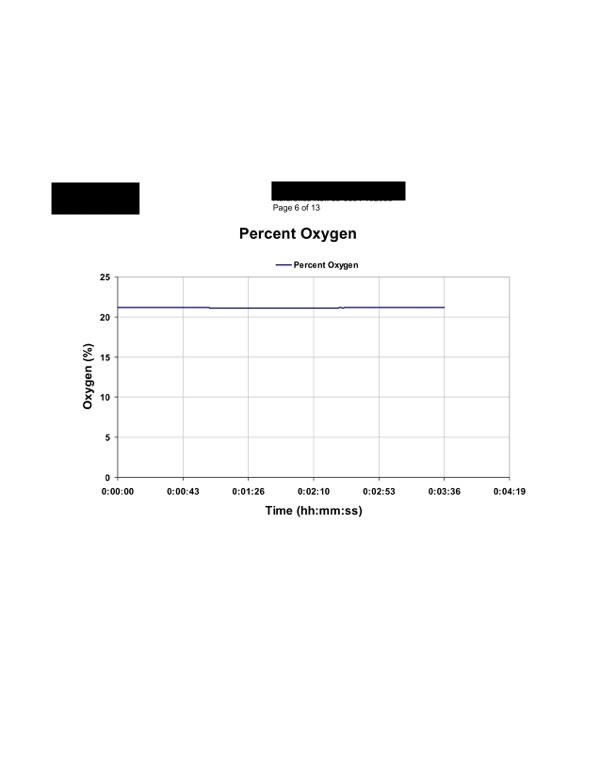

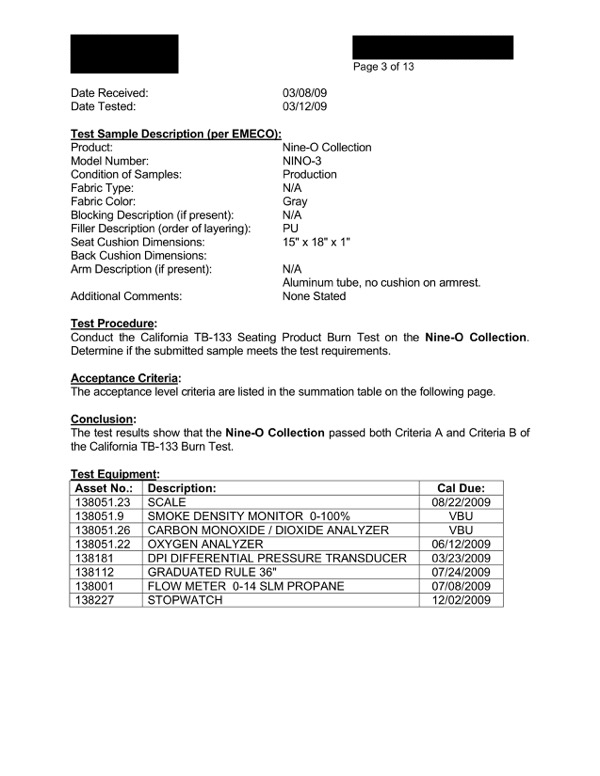

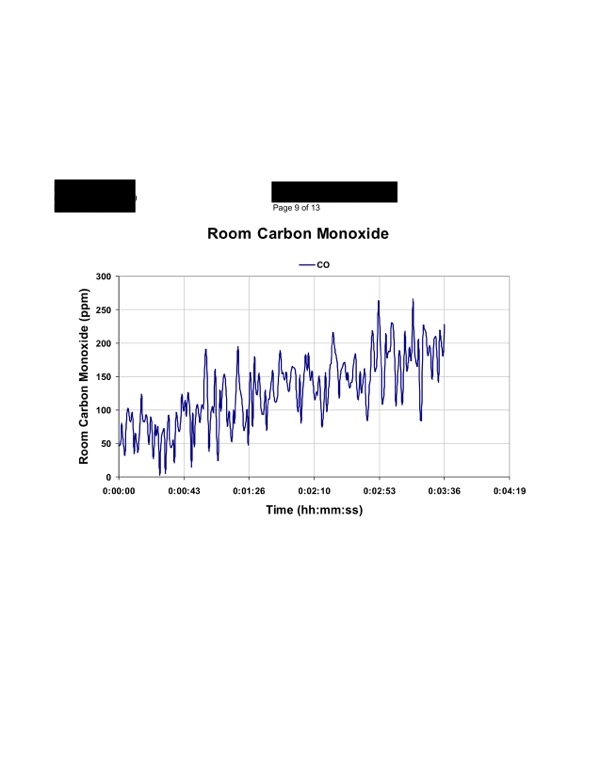

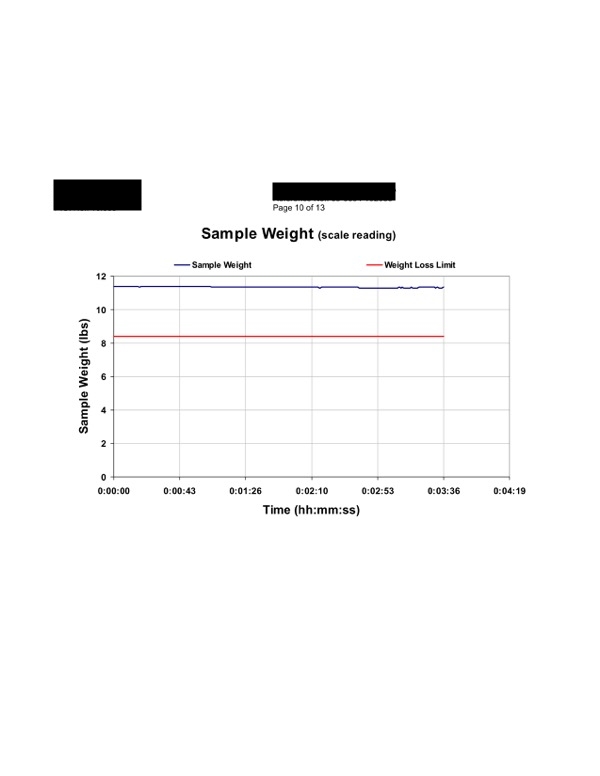

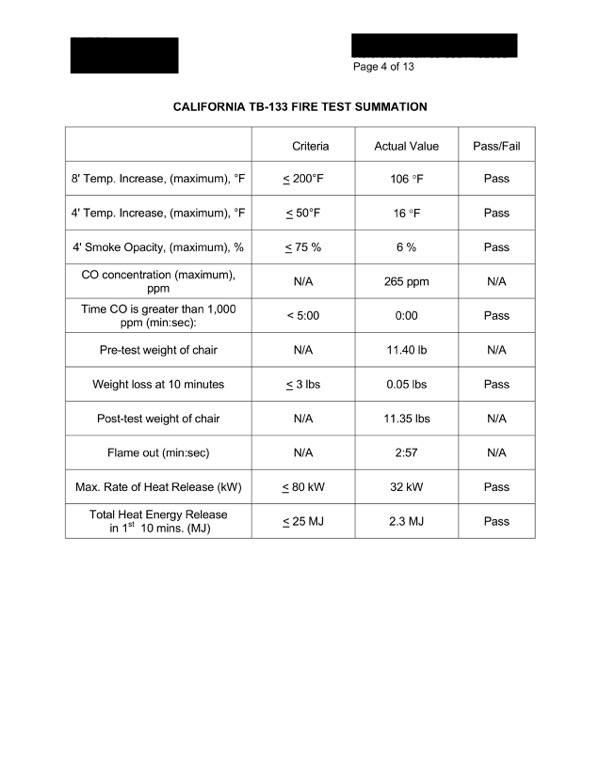

Sample Report 报告样本：
